1953-62 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, FUEL PUMPS, GENERATORS, HEADS, IGNITION SHIELDING, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Generator & Related

Generator & Related

Diagrams:

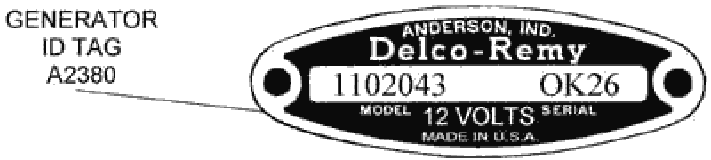

Generator ID Tag Diagram Thumbnail
Generator ID Tag
(click to enlarge)

Generator Pulley Assembly Diagram Thumbnail
Generator Pulley Assembly
(click to enlarge)

Tach Drive Unit Diagram Thumbnail
Tach Drive Unit
(click to enlarge)


 A045053-62BEARING - generator pulley end9.25
 A045253-61BEARING - generator tach drive end9.25
A0460A046056-62BOLT & WASHER KIT - generator adjusting, "WB" headmark3.00
A0455A045558-62BOLT & WASHER KIT - generator pivot "UR" HM, all 58-61 F.I., all 1962 w/solid mount end plates6.10
A0405A040556-61BOLT & WASHER KIT - generator pivot "UR" HM, w/o F.I., w/stove nuts (pr)6.10
A0413A041358-61BOLT KIT - generator "U" bracket to plate/plate to manifold10.95
A0433A043356-61BOLT SET - tach drive unit to generator4.10
A0438A043855-57BRACE - generator adjusting45.35
A0440A044058-62BRACE - generator adjusting24.95
 A059953-55BRACE - generator adjusting, 6 cylinder35.75
B0424B042458-62BRACKET - alternator support to exhaust manifold, RH41.25
 A043156-62BRACKET - capacitor #1911095 on generator (replacement)1.25
 A045856-62BRACKET - capacitor on voltage regulator, restored5.00
A0498A049853-55BRACKET - generator / all w/6 cylinder39.95
A0430A043056-57BRACKET - generator mount38.75
A0432A043258-61BRACKET - generator mount, w/o F.I. (hydraulic lifters & generators w/solid mount end plates, 6-5/8" long)34.75
A0436A043662BRACKET - generator mount, w/o F.I.42.50
A0434A043458-62BRACKET- generator mount, w/F.I.(except hydraulic lifters & generators/solid mount end plates. 7-1/8" long)30.00
A5158A515858-62BRACKET - heater hose, on generator14.60
A0445A044558-62BRACKET - LH / to mount alternator in place of generator56.00
A0401A040156-62BUSHING & SLEEVE - generator mount, rubber9.65
A7113A711356-62CAPACITOR & BRACKET - generator, GM #1911095, w/Delco logo & part number21.95
 A717856-62CAPACITOR - generator, GM #1911095, restored original w/Delco logo & part number  CALL
A3854A385458L-62CLIP SET - fuel line to frame (4 pc)7.00
 A049956-61END FRAME - '2043 generator/pulley side/aluminum179.95
 A045662END PLATE SET - Delco Remy generator 1102268, front plate w/ears, rear plate with large bearing hole. solid mount309.95
A6000A600056-61GASKET - Tach drive unit housing5.85
 A041456-61GEAR - tach drive unit, large, fiber44.95
A0415A041556-61GEAR - tach drive unit, large, nylon, replaces standard fiber gear21.75
A0416A041656-61GEAR - tach drive unit, small, metal26.65
 A042553-54GENERATOR - #1102793, 6 volt w/correct numbered original tag (specify)350.00
 A042155GENERATOR - #1102025, restored, tach drive w/correctly numbered (specify) dated tag (w/o tach drive unit)375.00
A0423A042356-61GENERATOR - #1102043, restored, tach drive, w/correctly numbered (specify) dated tag, (w/o tach drive unit)375.00
 A041957-59GENERATOR - #1102059. restored w/correct number & dated Specify tag, non-tach drive, w/o pulley399.00
 A040759-61GENERATOR - #1102173, restored, w/correctly numbered and dated Specify tag, w/o pulley, (non tach drive)549.95
 A040962GENERATOR - #1102174, restored, 250/300hp w/correctly numbered and dated Specify tag, w/o pulley, non tach drive unit499.95
 A044162GENERATOR - #1102268, restored, correctly numbered & dated, Specify tag, w/o pulley, 340/360hp, non-tach drive549.95
 A040656-61GENERATOR - tach drive, outright price, no exchange295.00
 A040456-61GENERATOR - tach drive, rebuilt, w/o pulley, w/exchange179.95
G5107G5107GREASE - white lithium, all purpose, anti-moisture,16 oz. aerosol 5.95
 A044853-62GROMMET & BUSHING SET - voltage regulator mounting. (3 pc)8.65
A0602A060255-62MOUNT KIT - regulator harness to generator (includes: bolt for capacitor & nuts for generator harness posts) (3pc)4.40
A0426A042658-62MOUNT PLATE - generator, 1958-61 all / 1962 w/F.I.13.45
A0428A042862MOUNT PLATE - generator, all except F.I. 250 / 300 / 340hp14.25
B0405B040553-62NUT & WASHER KIT - generator pulley5.55
 A689153-55PULLEY - generator, cast iron w/fan, 6 cyl295.00
 A689053-55PULLEY - generator, cast iron, w/o fan, 6 cyl239.00
 A689755-56EPULLEY - generator, (55 all), (56 195/225hp)34.95
A0403A040356-57PULLEY - generator 3 5/8" diameter, deep groove120.00
 A043757PULLEY - generator 3 3/8" diameter, 220 HP, reconditioned original79.95
A6804A680458-62PULLEY - generator 3 5/8" w/offset exc. F.I129.95
A6802A680258-62PULLEY - generator 4 1/8" F.I./spec HI perf w/HL cam129.95
A0412A041256-61REPAIR KIT - tach drive unit: shaft & gasket35.00
 A056055-62RESTORATION/REBUILD - generator199.95
A0463A046353-62RESTORATION - voltage regulator109.95
 A060453-61RESTORATION KIT - generator, w/2 terminal posts, 2 brushes, 1 order assembly, 2 bearings, 2 bushings & 2 oil caps.49.95
 A252753-61RIVET SET - Delco generator tag, (pr)2.65
A0443A044356-62SCREW SET - voltage regulator mounting (3 pc)3.65
A0420A042056-57SHIELD - heat, generator15.00
A0422A042258-60SHIELD - heat, generator16.95
 A046256-62SLEEVE - generator mount bushing2.75
A0442A044258-62STUD - generator brace to water pump mount14.00
A0408A040855-61TACH DRIVE UNIT - w/o gears104.00
A0410A041056-61TACH DRIVE UNIT KIT - w/2 gears195.00
A2380A238053-62TAG - for generator / metal, red w/correct rivets, stamped w/correct part number & date, as original28.95
A2306A230653-62TAG - red circle/cardboard, field pole3.15
A0418A041855-62TAG SET - Delco ID unstamped, w/rivets, (3 pc)18.65
 A049553-55VOLTAGE REGULATOR - 6 volt39.95
 A044453-55VOLTAGE REGULATOR - 6 volt, Delco W/logo69.95
 A046455VOLTAGE REGULATOR - #1118827 12V - has screws thru top of cover and pn & date along lid edge, restored/dated375.00
 A044756-57VOLTAGE REGULATOR - (reconditioned original), #1119001 / call for dates available, special order349.95
 A041758-62VOLTAGE REGULATOR - (reconditioned original), #1119001 / call for dates available, special order249.95
 A060362VOLTAGE REGULATOR - DELCO REMY (reconditioned original), #1119002E / call for dates available, special order399.95
 A044955-62VOLTAGE REGULATOR - replacement59.95
A0411A041162VOLTAGE REGULATOR - 12 volt, Delco W/logo59.95
