1953-62 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, FUEL PUMPS, GENERATORS, HEADS, IGNITION SHIELDING, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Ignition System Arrow Distributor - 1962 Tach Drive Rebuilding Components

Distributor - 1962 Tach Drive Rebuilding Components

Diagrams:


1957-62 Fuel Injection Diagram Thumbnail
1957-62 Fuel Injection
(click to enlarge)

Distributor Diagram Thumbnail
Distributor
(click to enlarge)


A2474A247462ADAPTER - distributor for tachometer cable, eliminates kinks in cable69.95
A2549A254962BRACKET - condenser2.25
A2541A254162BUSHING - distributor main shaft, lower11.25
A2540A254062BUSHING - distributor main shaft, upper, w/special notch15.75
 A242062BUSHING - vacuum advance stem, 1110984 only1.25
A2465A246562BUSHING KIT - tach drive distributor, upper & lower22.95
A2537A253762BUTTON - cross gear/bronze6.45
A2410A241062BUTTON - cross gear/nylon8.25
K3212K321262CAM & HEAD - distributor shaft (point opening cam w/weight support plate)32.95
B2512B251262CLAMP & BOLT - distributor hold-down 17.50
A2579A257962CONDENSER - distributor10.95
 A256862CONDENSER - distributor, NOS Delco #1932004 w/logo19.95
A2538A253862COUPLER - tach drive distributor cross gear, bronze21.05
 A252662DISTRIBUTOR - rebuilt/exchange, your 1962 tach drive, distributor199.95
 B260362DISTRIBUTOR - tach drive, electronic ignition, Hi-Pref with single wire lead LECTRIC LIMITED upgrade / w/cap & rotor649.95
 A252262DISTRIBUTOR - tach drive, 250/300hp, new, single point, w/cap & rotor 524.95
 A256262DISTRIBUTOR - tach drive, 250/300hp, single point original that has side oiler cap system (reconditioned, w/o exchange) 525.95
 A252462DISTRIBUTOR - tach drive, original, 340hp dual point, restored with dual window cap & rotor435.95
 7391662DISTRIBUTOR CAP - Original "DELCO REMY PATENT PENDING" logo/NOS & NEW, for single point distributor 1110984 only159.95
A2445A244562DISTRIBUTOR CAP - w/correct "DELCO REMY PATENT PENDING " logo/as original/all w/single point54.95
A2546A254662DISTRIBUTOR CAP - single point 20.95
 A252162DISTRIBUTOR CAP - dual window/black, for dual point distributor 111098552.95
A2521SA2521S62DISTRIBUTOR CAP & HEAVY DUTY ROTOR - dual window/black, for dual point distributor 1110985 64.95
A2521KA2521K62DISTRIBUTOR CAP, HEAVY DUTY ROTOR, 2 SETS POINTS & CONDENSER - dual window/black, for dual point distributor 1110985 63.35
 A242762ELECTRONIC IGNITION CONVERSION SYSTEM - Pertronix: Ignitor II169.95
A0992A099262ELECTRONIC IGNITION CONVERSION SYSTEM Say goodbye to Point-Type Ignition... Without replacing distributor, modifying harness or compromising appearance! The BreakLess SE ignition kit is designed to convert 1962 GM V8 distributors, originally equipped with breaker points and window-style distributor caps (single or dual point), to solid-state electronic ignition. Unlike competitive systems, this is a single wire system. No additional wires protrude from the distributor, only the single, original point wire. The result is a state-of-the-art ignition with a totally stock look. Includes step by step instructions. 3 year warranty. Made in USA. * Single wire operation. * No Chance of mis-wiring your distributor and damaging the module. * Auto shut off feature. * Hall Effect rotary-vane sensor * Over voltage protected * Operates down to 6 volts for cold weather starting. * Can be installed with distributor remaining in car. * Maintenance Free * Legal for use on emission controlled vehicles. *We recommend use of your original factory wiring, window-type distributor and stock coil195.00
A2547A254762GASKET - distributor to intake2.95
A2565A256562GEAR & COUPLER KIT - incl. OEM cross gear, coupler, thrust washer & bronze button, (4 pc)52.95
A2590A259062GEAR - lower distributor drive24.95
A2530A253062GEAR - tach drive distributor cross gear31.50
 A2530B62GEAR - tach drive distributor cross gear/with brass button end31.55
A2581A258162GROMMET - distributor lead wire/rubber4.25
A2462A246262GROUND WIRE W/TERMINAL - distributor point plate7.95
 A256462HOUSING/BASE - distributor #1110985, dual point / used124.95
 A259562HOUSING/BASE - distributor #1110984, single point / used195.00
A2384A238462ID BAND - Delco Remy Embossed w/date and distributor part # as original 39.95
A9917A991762LEAD WIRE - distributor to coil13.95
A2636A263662LUBRICANT - point opening cam11.25
A2551A255162LUBRICATOR KIT - point opening cam (retainer w/wick)14.05

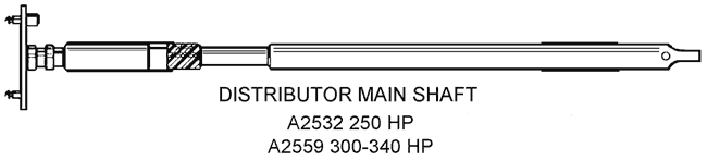

A2559A255962MAIN SHAFT - tach drive distributor, hi-performance, 300 & 340HP64.95
A2532A253262MAIN SHAFT - tach drive distributor, standard, 250 & 300HP64.95
 A2559P62MAIN SHAFT W/O CAM HEAD - tach drive distributor, remove and install your original cam head52.95
K3213K321362PLATE - distributor, that points & condenser mount to, (single point)34.95
A2506A250662POINTS - distributor 24.95
A2509A250962POINTS - distributor, Delco D106P w/logo, NOS (1 or 2 sets required, ea.)  CALL
A2533A253362POINTS/CONDENSER KIT - NOS Delco (A2509 & A2568)  CALL
A2523A252362MASTER REBUILD KIT/STANDARD TACH DRIVE DISTRIBUTOR - everything you need to restore your 1110984 tach drive distributor, 27pc239.95
A2543A254362MASTER REBUILD KIT/HI PERF TACH DRIVE DISTRIBUTOR - everything you need to restore your 1110985 dual point tach drive distributor, 26pc205.95
A2437A243762REBUILD KIT/TACH DRIVE DISTRIBUTOR - coupler, cross gear, thrust washer & button / button may not be required, 4pc49.95
A2412A241262REPAIR KIT - Hi-Perf / tach drive distributor 5pc, cross gear, hi perf main shaft, cross gear washer, coupler & button / 340-450hp119.95
A2413A241362REPAIR KIT - Standard / tach drive distributor 5pc, cross gear, standard main shaft, cross gear washer, coupler & button / 250-300hp119.95
 C255262REBUILD KIT - tach drive distributor (w/cross gear, bushings, Installation tools)59.95
 A240962RETAINER/ROLL PIN - lower distributor drive gear shaft1.50
 7391362ROTOR - distributor/nos, new Delco Remy D409 original29.95
A2499A249962ROTOR - D409, equivalent, heavy plastic12.95
A2584A258462ROTOR - distributor7.45
 A061762SCREW SET - Points (2 pc)1.00
A2553A255362SHIM PACK - between housing & bottom gear, (4 pc.)14.95
A2481A248162SLEEVE - distributor shaft head pin (underside)2.50
A2554A255462SMALL PARTS KIT - distributor includes, grommets, nylon spacer, 4 screws, snap ring & roll pin (9pc)16.75
A2545A254562SPRING & WEIGHT KIT - (2 of each)19.95
A2477A247762TUNE-UP KIT - single point distributor / points, condenser, rotor & cap45.95
A2460A246062VACUUM ADVANCE - GM #1116201 for 250/300hp distributor 1110984. restored original 64.95
A2586A258662VACUUM ADVANCE - distributor 24.95
A2711A271162VACUUM ADVANCE RESTORATION - includes replating89.95
A2534A253462WASHER - tach drive cross gear 2.25
A8324A832462WRENCH - distributor loosening/adjusting tool 14.95
