1953-62 Arrow ENGINE COMPARTMENT: SPLASH SHIELDS, HORN SYSTEM, GROMMETS, TIE STRAPS Arrow Grommets - Firewall

Grommets - Firewall

Diagrams:

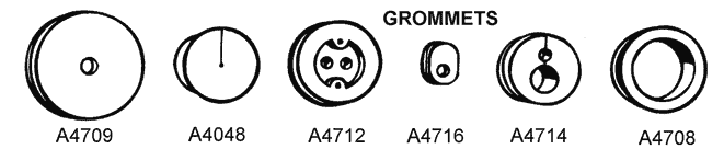

Grommets Diagram Thumbnail
Grommets
(click to enlarge)


A4708A470856-62GROMMET - firewall / heater hose thru firewall (2 req. 53-55) (1 req. 56-62)6.50
A0424A042458GROMMET - firewall / tach cable, F.I., (not included w/grommet kit)21.25
A4048A404853-62GROMMET - firewall, 1 hole, 1", small 7/8 diameter5.10
A4709A470956-62GROMMET - firewall, 1 hole, large 1 3/8 diameter5.80
A4712A471256-62GROMMET - firewall, 4 holes9.70
A4714A471458-62GROMMET - firewall/windshield washer hoses, 2 holes7.65
A4713A471353-57GROMMET - headlight bucket wire harness9.95
A4717A471753-55GROMMET - washer hose, 3 hole9.65
A0654A065453-54GROMMET SET - firewall & body (19pc)69.95
A4702A470256-57GROMMET SET - firewall & body (24 pc)75.75
A4704A470458-62GROMMET SET - firewall & body (contains A4708, A4709, A4048, A4712, A4714 & A4716)(25 pc)77.35
A4716A471658-62GROMMET SET - hood release cable (pr) (A4716 comes without a hole. Cable is pushed through it.)10.45
