1953-62 Arrow FIBERGLASS Arrow Front Body - 1958-62

Front Body - 1958-62

Diagrams:

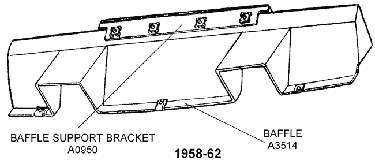

1958-62 Baffle Diagram Thumbnail
1958-62 Baffle
(click to enlarge)

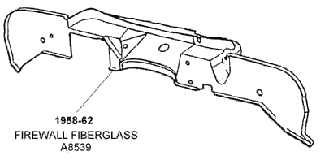

1958-62 Firewall Fiberglass Diagram Thumbnail
1958-62 Firewall Fiberglass
(click to enlarge)

1958-62 Front Body Diagram Thumbnail
1958-62 Front Body
(click to enlarge)

RH Inner Fender Extension Diagram Thumbnail
RH Inner Fender Extension
(click to enlarge)


 A351458-62BAFFLE/PANEL - in front of core support, fiberglass, white, (PM)159.95
A0950A095060BRACKET - on lower radiator fiberglass baffle A3514, in front of radiator. No bracket was used on the 1961/2 models. 52.50
A0991A099158-62REINFORCEMENT SET - lower inner fender to cowl, metal (pr)58.30
A0932A093258-59EREINFORCEMENT SET - upper inner fender to cowl, metal (pr)49.50
A0933A093359L-62REINFORCEMENT SET - upper inner fender to cowl, metal (pr)58.30
 A895258-62SCREW & WASHER - fender skirt reinforcement to firewall retainer, "E" headmark (24 req) (ea)1.00
A0934A093458-62SCREW SET - inner fender reinforcement, upper & lower (48 pc)17.50
