1953-62 Arrow HEATER Arrow Heater Assembly

Heater Assembly

Diagrams:


1958-62 Heater Detail Diagram Thumbnail
1958-62 Heater Detail
(click to enlarge)

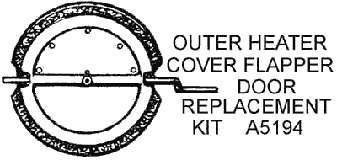

Outer Heater Cover Flapper Door Diagram Thumbnail
Outer Heater Cover Flapper Door
(click to enlarge)


A5177A517755-62BLOWER MOTOR - heater blower, w/plate & original fan, restored original174.95
A5101A510153-62BLOWER MOTOR - RESTORATION & REBUILD SERVICE - your heater motor 6 or 12 volt139.95
 A512358-62BOX - under dash heater (fiberglass)159.95
 A512156-62BRACKET - defroster hose on defroster box (not included w/box)13.20
A5151A515156-62CORE - heater206.65
A5193A519356-62COVER ASSEMBLY - heater, engine compartment side with flapper door  CALL
A5194A519456-62DOOR KIT - outer heater cover, w/rod & seal40.85
A5111A511153-62GASKET - heater blower motor to mounting plate6.05
A5110A511056-62GASKET KIT - heater21.95
A5148A514858-62HOSE - 90 degree control valve to heater core connector13.85
A5135A513558-62MOUNT KIT - heater cable, for outer door cover, includes cable clamp & speed nut w/screws to hold cable to outer heater cover3.45
 A518456-57PLATE - heater block-off, no heater car89.95
 A518658-59EPLATE - heater block-off, no heater car89.95
 A517959L-62PLATE - heater block-off, no heater car89.95
A5127A512756-62PLATE - outer heater cover adapter37.35
A0786A078658-62RETAINER/CLIP - heater cable (ea)2.95
A0789A078956-62SCREW SET - heater defroster box to blower housing3.85
A5113A511356-57SEAL KIT - heater valve44.95
 A511656-62SEAL SET - heater hose at firewall5.20
A5125A512556-62STUDS - w/rivets & nut kit, heater box23.05
A0787A078756-57VALVE - heater control 199.00
A5146A514658-62VALVE - heater control74.95
