1953-62 Arrow SUSPENSION - FRONT & REAR Arrow Front Suspension: Steering Rack

Front Suspension: Steering Rack

Diagrams:


1953-62 Steering Column to Frame Mounting Diagram Thumbnail
1953-62 Steering Column to Frame Mounting
(click to enlarge)

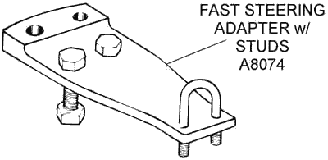

Fast Steering Adapters with Studs Diagram Thumbnail
Fast Steering Adapters with Studs
(click to enlarge)

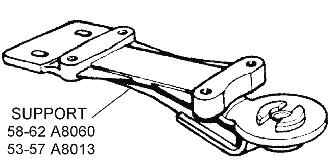

Supports Diagram Thumbnail
Supports
(click to enlarge)


 A801153-623rd ARM - reconditioned w/new ball stud installed (w/exchange) (Exchange item or $200.00 core charge)149.95
A8074A807456-62ADAPTER - fast steering, w/studs179.95
 A809753-62ARM - front steering, #3733451 - wheel backing plate (LH)59.95
 A809853-62ARM - front steering, #3733452 - wheel backing plate (RH)59.95
A8012A801253-62BALL STUD - third arm or steering box arm (ea)45.95
A8062A806253-62BEARING - third arm & steering column (ea)44.95
A8063A806353-62BOLT & NUT KIT - steering knuckle pinch, upper 5.55
A8039A803953-62BOLT & NUT KIT - tie rod clamps, "UR" headmark (8pc}7.95
A8089A808953-62BOLT & WASHER KIT - third arm bearing support to crossmember. 8 pc7.65
A8088A808853-62BOLT SET - lower steering column to frame (9 pc)13.95
A8041A804156-62BRACKET - steering box stop, on frame84.95
A8056A805653-62CLAMP - tie rod end (4 req.) (ea)8.25
A8096A809653-62DRAG LINK - reconditioned, w/rebuild kit, EXCHANGE199.95
A8053A805353-62DUST BOOT/GREASE SEAL - tie rod, rubber, (included w/new tie rod ends)3.95
A8059A805953-62DUST BOOT/GREASE SEAL SET - tie rods, polyurethane (2 pc)8.00
A8079A807953-62NUT - 3rd arm bearing stud4.50
A8043A804353-62NUT - pitman arm7.45
A8066A806653-62NUT - tie rod end, castle/slotted type (ea)1.75
A1068A106853-62PITMAN ARM - steering box, w/new ball stud installed, reconditioned, w/exchange149.95
A8054A805453-62REBUILD KIT - for pitman arm/drag link (seat, springs, cap)119.95
A8058A805853-62SEAL - pitman arm & drag link (not included in A8054), (2 req.)13.95
A8064A806453-62SEAL - third arm bearing5.25
A8009A800953-62SNAP RING - 3rd arm bearing10.95
A7998A799853-62SPACER - between steering box and frame (reconditioned)85.00
A8030A803053-62STUD - 3rd arm bearing, mounts inside bearing & attaches to 3rd arm support32.95
 A806956-62STUD/U-BOLT KIT - fast steering adapter62.00
 A801356-57SUPPORT - bearing, 3rd arm, bolts to crossmember300.00
A8060A806058-62SUPPORT - bearing, 3rd arm, bolts to crossmember300.00
A8050A805056-62TIE ROD END - LH29.35
A8052A805256-62TIE ROD END - RH29.35
A8048A804853-62TIE ROD SLEEVE - (2 required, ea)43.75
