1953-62 Arrow WINDSHIELD WIPER SYSTEM Arrow Windshield Wiper & Washer Parts

Windshield Wiper & Washer Parts

Diagrams:


1958-62 Windshield Wiper and Washer Diagram Thumbnail
1958-62 Windshield Wiper and Washer
(click to enlarge)

1958-62 Windshield Wiper Switch Diagram Thumbnail
1958-62 Windshield Wiper Switch
(click to enlarge)

Jar Diagram Thumbnail
Jar
(click to enlarge)

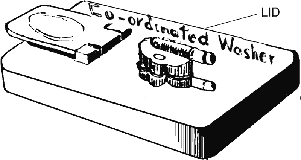

Lid Diagram Thumbnail
Lid
(click to enlarge)

Trico Licensed Parts Diagram Thumbnail
Trico Licensed Parts
(click to enlarge)

Vacuum Can with Valve Diagram Thumbnail
Vacuum Can with Valve
(click to enlarge)

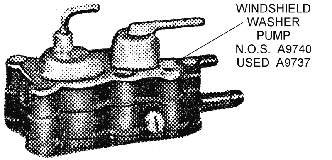

Windshield Washer Pump Diagram Thumbnail
Windshield Washer Pump
(click to enlarge)

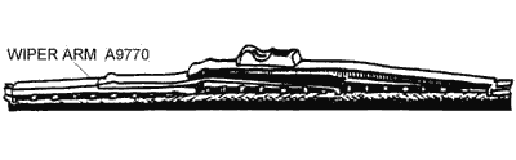

Wiper Arm Diagram Thumbnail
Wiper Arm
(click to enlarge)


A9773A977356-62ARM & BLADE SET - windshield wipers w/correct rubber inserts / polished finish179.95
A9709A970956-62ARM SET - windshield wipers, correct shaped arm, polished finish, w/o Trico logo, almost identical to original, pr104.95
A9711A971156BAG - windshield washer reservoir119.95
 A9711K56BAG & CAP - windshield washer with nos cap, valve, hose & filter195.00
A9722A972256-62BLADE - wiper (GM repl. Anco brushed finish)20.05
A9799A979956-62BLADE SET - wiper, w/inserts, correct reproduction, (pr)113.95
A9734A973455-56BOWDEN CABLE - foot operated washer pump to motor239.95
A9739A973957BOWDEN CABLE - foot operated washer pump to motor239.95
 A978353-54BRACKET - windshield washer jar249.95
A9727A972758-62BRACKET - washer bottle w/F.I.69.95
A9724A972458-62BRACKET - washer bottle w/o F.I.64.95
A9755A975556CAP & VALVE - washer bag, Trico, NOS, includes hose & filter145.00
A3714A371458-62FITTING - vacuum, for washer system or automatic transmission, installs on carburetor or FI21.55
A4022A402253-62GASKET SET - windshield washer nozzles, pr1.95
A4008A400853-57GASKET SET - wiper arm chrome spacers (pr)3.75
A4036A403658-62GASKET SET - wiper arm chrome spacers (pr)2.75
A4714A471458-62GROMMET - firewall/windshield washer hoses, 2 holes7.65
A4717A471753-55GROMMET - washer hose, 3 hole9.65
A4712A471258-62GROMMET - wiper cable, 4 holes9.70
A9726A972656HOSE KIT - windshield wiper34.25
A9742A974257HOSE KIT - windshield wiper36.25
A9728A972858-62HOSE KIT - windshield wiper, w/o F.I.34.95
A9730A973058-61HOSE KIT - windshield washer, F.I. (color coded)34.95
A9732A973262HOSE KIT - windshield washer, F.I. (color coded)40.90
 A978253-55JAR - windshield washer, glass25.00
A9744A974457-62JAR - windshield washer, that lid w/pump installs on35.95
A2109A210958-60KNOB - wiper switch, w/o windshield washers23.95
A2111A211158-60KNOB - wiper switch, w/windshield washers (w/push button)46.65
A2139A213961-62KNOB - wiper switch w/washers & button w/shaft 49.95
A2117A211761-62KNOB - wiper switch w/washers & button w/shaft, USED20.00
 A978557LID - windshield washer jar, red, Trico, w/2 way black valve, NOS  CALL
A9764A976458-59LID - windshield washer jar, w/installation kit, gray/blue69.95
A9765A976560-62ELID - windshield washer jar, w/installation kit, gray/blue69.99
A9763A976362LLID - windshield washer jar, w/instruction kit, bright blue69.95
A9781A978153-55LID - windshield washer, w/decal104.95
 A976758-59LID - with used pump installed224.95
 A976860-62ELID - with used pump installed224.95
A0850A085062LLID - with used pump installed224.95
A9780A978058-60MOUNT KIT - heat shield, washer jar/all with fuel injection, 9pc3.80
A9770A977058-60MOUNT KIT - washer jar bracket on inner fender, with or without fuel injection, 12pc3.80
A9741A974153-62NOZZLE - windshield washer12.95
 A970253-62NOZZLE KIT - windshield washer, w/gasket & nuts (pr)29.00
A9718A971853-62NUT - wiper arm transmission12.70
A2122A212258-60NUT - wiper switch12.00
A2123A212361-62NUT - wiper switch9.95
A9704A970453-62NUT SET - windshield wiper nozzle, flat (pr)16.95
A9737A973758-62PUMP - windshield washer system jar lid, used179.95
A9740A974058-62PUMP - windshield washer system jar lid, NOS449.95
A9701A970158-62REBUILD KIT - windshield washer pump, includes body valve seals, lower pump seals, rivets, washers & more107.75
 A980653-62RESTORATION SERVICE - windshield wiper motor drum under motor, mounted to firewall89.95
A9703A970358-62RESTORATION SERVICE - windshield washer pump on jar lid, (w/exchange)199.95
A9719A971953-62RESTORATION SERVICE / WIPER SWITCH - windshield wiper, restored w/new cable (exchange - you must send in your cable to be redone)79.95
A9754A975457-62RETAINER - on wiper motor to hold wiper switch cable16.25
A9804A980458-62RETAINER/MOUNT PLATE - on wiper motor to hold wiper switch cable & support washer coordinator 39.95
A9964A996456-62SCREW SET - engine compartment for wire harness clip, hoses, etc. (phillips head) (10 pc)7.25
A9746A974658-62SHIELD - heat, F.I., washer , aluminum89.95
A9708A970853-57SPACER SET - wiper arm transmission, chrome (pr)67.35
A9714A971458-62SPACER SET - wiper arm transmission, chrome (pr)67.35
A8632A863258-62SWITCH - windshield wiper, original-restored w/new cable99.95
A9753A975358-62SWITCH - windshield wiper, w/stainless steel cable94.95
A2916A291661-62TIE STRAP - aluminum, short, w/wiper hose22.50
A2914A291453-60TIE STRAP - brass, windshield washer hose, 1 piece4.75
A2915A291558-62TIE STRAP - wiper cable, white plastic (1), horn wire (ea)3.25
 A291053-57TIE STRAP KIT - wire harness, windshield wiper nose, and heater hose (8 pc) 21.95
 A291158-60TIE STRAP KIT - wire harness, windshield wiper hose, and heater hose (10 pc)35.95
A2912A291261-62TIE STRAP KIT - wire harness, windshield wiper hose, and heater hose (10 pc)24.95
A9788A978853-62TOOL - windshield wipers escutcheon, nut retainer15.95
A9802A980253-57TRANSMISSION - wiper, LH, restored, exchange (Exchange item or $200.00 core charge)129.95
A9803A980353-57TRANSMISSION - wiper, RH, restored, exchange (Exchange item or $200.00 core charge)129.95
A9800A980058-62TRANSMISSION - wiper, LH, restored, exchange (Exchange item or $150.00 core charge)114.95
A9801A980158-62TRANSMISSION - wiper, RH, restored, exchange (Exchange item or $150.00 core charge)114.95
A6663A666358-59WASHER JAR LID - with NOS pump installed on it549.95
A6662A666260-62EWASHER JAR LID - with NOS pump installed on it549.95
A6661A666162LWASHER JAR LID - with NOS pump installed on it549.95
