1963-67 Arrow COOLING SYSTEM Arrow Heater Hoses & Fittings

Heater Hoses & Fittings

Diagrams:

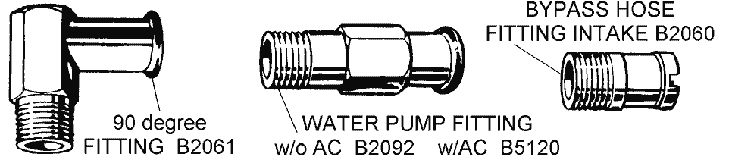

Fittings and Bypass Hose Diagram Thumbnail
Fittings and Bypass Hose
(click to enlarge)


B5124B512463-67BRACKET - heater hose, on alternator20.89
B1988B198863-67CLAMP SET - bypass hose, 327, (pr)9.85
B1949B194965-67CLAMP SET - bypass hose, 396/427, (pr)9.25
B5138B513863-67CONNECTOR - heater hose, w/327 & 396, "T" shape18.62
A5156A515663-67FITTING - heater hose on intake, 1/2" NPT, 5/8" hose, all14.00
B2060B206063-67FITTING - intake manifold nipple w/special hi-perf14.30
 B225563-67FITTING - w/hose, intake manifold7.25
B2041B204163-67FITTING - water pump, 20 degree nipple, w/sp. hi-perf, by-pass, stamped with "CP" logo as original on production Corvettes  CALL
B2061B206163-67FITTING - water pump, 20 degree nipple, w/sp. hi-perf, by-pass35.00
B5120B512063-67FITTING - water pump for heater hose on w/AC 327/350, correct15.05
B5122B512263-67HOSE - bypass, intake to water pump, 327 hi-perf, w/GM logo16.54
B2095B209565-67HOSE - bypass, intake to water pump, 396/4278.95
B2033B203366-67HOSE - bypass, intake to water pump, w/427 & A.I.R. #388282922.45
A5150A515063-65HOSE KIT - heater, w/GM logo, (red logo on 3/4 hose only)61.75
B2063B206363-67HOSE KIT - heater, w/GM logo, (white logo on 5/8" hose)66.65
B9160B916066-67PIPE - 90 degree 427 w/A.I.R., water pump to manifold, top of pump57.95
B2062B206265-67PIPE - water pump & manifold bypass, 396/427 , except A.I.R.10.95
 A831363-67PLIERS - hose clamp removal42.45
