1968-82 Arrow RADIO & RELATED

RADIO & RELATED

Diagrams:

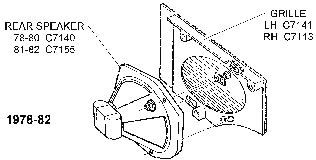

1978-82 Radio Speaker and Grille Diagram Thumbnail
1978-82 Radio Speaker and Grille
(click to enlarge)

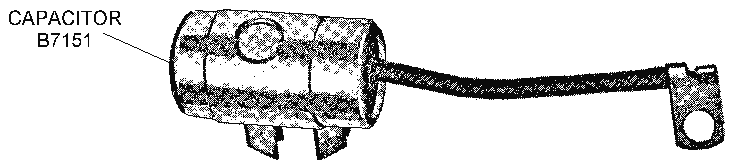

Capacitor Diagram Thumbnail
Capacitor
(click to enlarge)

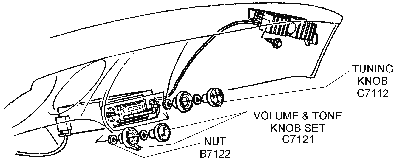

Radio Knobs Diagram Thumbnail
Radio Knobs
(click to enlarge)

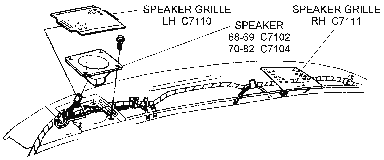

Speaker and Speaker Grille Diagram Thumbnail
Speaker and Speaker Grille
(click to enlarge)

Static Collector Diagram Thumbnail
Static Collector
(click to enlarge)


 C715778-82BRACKET - rear speaker and grille, LH25.85
 C715878-82BRACKET - rear speaker and grille, RH25.85
 C711769-82CAPACITOR - on alternator9.95
B2894B289470-74CAPACITOR - on coil bracket, incl. bracket21.25
B7152B715268-80CAPACITOR - on heater blower motor67.50
 B715168-75CAPACITOR - on voltage regulator22.50
C7103C710368-71DRUM - overlay w/numbers, radio inner dial18.75
C7105C710572-75DRUM - overlay w/numbers, radio inner dial17.55
C7110C711078-82GRILLE - radio speaker dash, LH28.95
C7111C711178-82GRILLE - radio speaker dash, RH28.95
C7141C714178-82GRILLE - radio speaker, LH rear44.95
C7113C711378-82GRILLE - radio speaker, RH rear44.95
C7120C712068-70GROUND STRAP KIT - all except side exhaust26.00
C0080C008069GROUND STRAP SET - all 19.70
C0082C008273-74GROUND STRAP SET - all19.70
C0083C008375-77GROUND STRAP SET - all19.70
C0084C008478GROUND STRAP SET - all w/power antenna22.80
C0085C008578-80GROUND STRAP SET - all w/o power antenna22.80
C0086C008679-80GROUND STRAP SET - all w/power antenna24.65
C0087C008781-82GROUND STRAP SET - all w/power antenna22.80
C0088C008881-82GROUND STRAP SET - all w/o power antenna22.80
 C711272-76KNOB - radio, outer tuning14.95
C7109C710968KNOB SET - radio, LH & Rh59.00
 C715068-71KNOB SET - radio, [1968 replacement], pr19.85
C7121C712172-76KNOB SET - radio volume & tone21.95
C7125C712568-71LENS - push button, radio dial AM/FM27.50
 C712672-76LENS - push button, radio dial AM/FM29.50
 C715178-82MICROPHONE & CABLE - CB, radio w/CB19.95
B7122B712268-76NUT - radio retainer around volume & tuning controls, (2 req.)(ea.)1.60
 C714378-82PIG TAIL KIT - radio harness, 3 plug w/wire595.00
C7101C710168-73PLATE - radio delete179.95
C7107C710778-82REPAIR KIT - radio harness, re-installation of OEM radio, 3 connectors w/pigtails for under dash harness8.95
C7119C711978-82SCREW SET - rear speaker grille, (4 pc.)2.65
 C710669-71SPACER SET - radio knobs, w/stereo18.95
C7102C710268-69SPEAKER - on kick panel, w/mount bracket, (ea)27.95
C7104C710470-82SPEAKER - in dash, each19.95
C7140C714078-80SPEAKER - rear, 6 x 921.95
 C715581-82SPEAKER - rear49.95
S8017S801768-82STATIC COLLECTOR - inserts in front hub grease caps, (ea)19.00
