Fuel System: Carburetor - Rebuild Kits * Standard & Special

Diagrams:

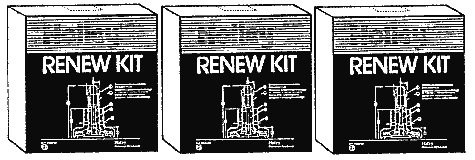

Renew Kits Diagram Thumbnail
Renew Kits
(click to enlarge)


A3720A372063-65CARBURETOR KIT - CARTER AFB 4 barrel carburetors number: 3460S, 3461S, 3720SA, 3720SB, 3721SA, 3721SB32.50
A3948A394863-65CARBURETOR KIT - CARTER WCFB 4 Barrel carburetors number 3500S, 3501S, 3697S, 3697S32.95
B1565B156564-66CARBURETOR KIT - Holley #2818, 2818-1 327-350/365HP, #3124, 396/425hp; #3247, 427/425hp32.95
B1566B156666CARBURETOR KIT - Holley #'s 3367, 3605 (Calif.) 300/350hp & #3370, 3606 (Calif.) 427/390hp28.95
B1570B157067CARBURETOR KIT - Holley #'s 3810, 3814 (Calif.), 300/350hp & #3811, 3815 (Calif.), 427/390hp29.95
B1575B157567CARBURETOR KIT - Holley #3418, 427 L8835.75
B0679B067967CARBURETOR SUPER KIT - Holley #3659, 3x2 End only w/secondary diaphram [ diaphrams are not included in any kits from other source] & other parts not found in standard kits-see detail44.95
 B067167CARBURETOR ULTIMATE KIT - Holley #3659, 3x2 End only w/secondary diaphram [ diaphrams are not included in any kits from other source] & other parts not found in standard kits-see detail 69.95
 B067767CARBURETOR KIT - Holley #3659, 3x2 End only / DOES NOT INCLUDE SECONDARY DIAPHRAM..18.95
 B068067CARBURETOR KIT - Holley #3660 & 3888 3x2 Centers only31.95
 B157267CARBURETOR KIT - Holley Tri-power carburetors / traditional style kit - all Holley #'s 3659/3660/3888 - does not include secondary diaphrams, filters or other related special parts in kits B0679 or B068024.95
 B154764-65CARBURETOR SUPER KIT - Holley #281869.95
 B154865CARBURETOR SUPER KIT - Holley #312469.95
 B155366CARBURETOR SUPER KIT - Holley #324779.95
 B154966CARBURETOR SUPER KIT - Holley# 3367 3370 & 360669.95
 B155166CARBURETOR SUPER KIT - Holley #360569.95
 B155667CARBURETOR SUPER KIT - Holley #341884.95
 B155967CARBURETOR SUPER KIT - Holley #381069.95
 B155267CARBURETOR SUPER KIT - Holley #381169.95
 B155467CARBURETOR SUPER KIT - Holley #381469.95
 B155567CARBURETOR SUPER KIT - Holley #381569.95
 B372067CARBURETOR SUPER KIT - Holley 3x2, 3 carb set AT w/#3660 & 2 #3659'S129.95
 B404267CARBURETOR SUPER KIT - Holley 3x2, 3 carb set AT w/#3888 & 2 #3659'S129.95
 A395563-67STAND KIT - carburetor, elevates carb. 2" to facilitate servicing it, throttle shafts easily open, (4 pc.)5.95
