1963-67 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, EXHAUST MANIFOLDS, FUEL PUMPS, HEADS, IGNITION SHIELDING, INTAKE MANIFOLDS, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Ignition System - Point Type & Transistorized Ignition Distributors, Ignition Wires, Coils, Spark Plugs & Ignition Shielding Arrow Ignition Distributor - Tach Drive Distributors Complete & Rebuilding Components

Ignition Distributor - Tach Drive Distributors Complete & Rebuilding Components

Diagrams:


1963-65 Fuel Injection Distributor Diagram Thumbnail
1963-65 Fuel Injection Distributor
(click to enlarge)

Clamp Diagram Thumbnail
Clamp
(click to enlarge)

Distributor Diagram Thumbnail
Distributor
(click to enlarge)

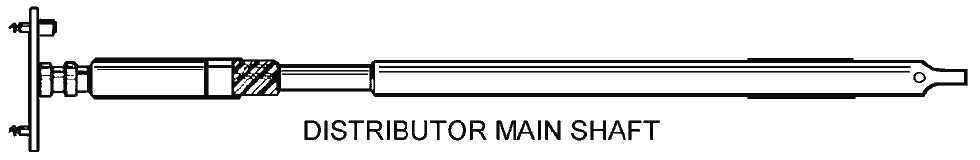

Distributor Main Shaft Diagram Thumbnail
Distributor Main Shaft
(click to enlarge)

Lubricator Kit Diagram Thumbnail
Lubricator Kit
(click to enlarge)

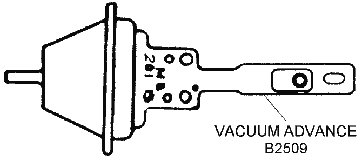

Vacuum Advance Diagram Thumbnail
Vacuum Advance
(click to enlarge)


A2474A247463-67ADAPTER - distributor for tachometer cable, eliminates kinks in cable69.95
A2549A254963-67BRACKET - condenser2.25
A2541A254163-67BUSHING - distributor main shaft, lower11.25
A2540A254063-67BUSHING - distributor main shaft, upper, w/special notch15.75
 A242063-67BUSHING - vacuum advance stem1.25
A2465A246563-67BUSHING KIT - tach drive distributor, upper & lower22.95
A2410A241063-67BUTTON - behind cross gear, nylon as original8.25
A2537A253763-67BUTTON - behind cross gear/bronze (not used on early tach drive distributors w/o housing hole)6.45
K3212K321263-67CAM & HEAD - distributor shaft (point opening cam w/centrifical weight support plate)32.95
 B254963-64CAM & HEAD - CCW724/1111024 distributor shaft (point opening cam w/centrifical weight support plate)   CALL
 A247863-67CAP & ROTOR KIT - w/o FI24.65
B2512B251263-67CLAMP & BOLT - distributor hold-down17.50
A2579A257963-67CONDENSER - distributor10.95
 A256863-67CONDENSER - distributor, NOS Delco #1932004 w/logo19.95
 A251263-67CONDENSER, ROTOR & POINT KIT - (generic)21.95
A2538A253863-67COUPLER - tach drive distributor cross gear, bronze21.05
A2530A253063-67CROSS GEAR - tach drive distributor 31.50
 A2530B63-67CROSS GEAR - tach drive distributor/with brass button end31.55
A2565A256563-67CROSS GEAR & COUPLER KIT - includes OEM design cross gear, coupler, thrust washer & bronze button, (4 pc.)52.95
A2445A244563-67DISTRIBUTOR CAP - w/correct "DELCO REMY PATENT PENDING" logo/as original / all except 1963-65 w/fuel injection54.95
A2546A254663-67DISTRIBUTOR CAP - generic, replacement20.95
 B258163-67DISTRIBUTOR - HEI w/tach drive149.95
 B260363-67DISTRIBUTOR - tach drive, electronic ignition, Hi-Pref with single wire lead LECTRIC LIMITED upgrade & cap & rotor649.95
 A252263-67DISTRIBUTOR - tach drive, 327 standard, w/new cap & rotor524.95
 B257963-67DISTRIBUTOR - tach drive, 327/427 HI-PERF w/new cap & rotor524.95
B2504B250464-67DISTRIBUTOR - tach drive, 327 396 427 transistorized ignition, hi-perf w/cap & rotor,   CALL
B2523B252365-67DISTRIBUTOR - tach drive, 396/427, w/transistorized ignition, w/special oil galley notch as original, restored (w/o exchange)  CALL
 B252066-67DISTRIBUTOR - tach drive, 427, w/o special lower oil galley notch reconditioned w/o TI, replacement524.95
A2446A244663-67DISTRIBUTOR - tach drive, new w/Pertronix Ignitor II ignition system 327/396/427709.95
 A661363-67DISTRIBUTOR REBUILD KIT / HI-PERF - tach drive: includes main shaft, cross gear, coupler, thrust washer, cross gear button & small parts kit139.95
 A661263-67DISTRIBUTOR REBUILD KIT / STANDARD - tach drive: includes main shaft, cross gear, coupler, thrust washer, cross gear button & small parts kit139.95
 A252663-67DISTRIBUTOR REBUILDING SERVICE "STANDARD" - your tach drive distributor, includes new main shaft, cross gear, coupler & bushings as required w/new points & condenser, tested, (exchange)199.95
 A249663-67DISTRIBUTOR REBUILDING SERVICE "SUPER" - your tach drive distributor: includes services under A2526 cap & rotor, rebuilt point plate, drive gear, cam head & weights239.95
 B255464-67DISTRIBUTOR RESTORATION - transistorized w/replacement of upper and lower bearings, new gear seals, cross gear and coupler, (as required)169.95
 A242763-67ELECTRONIC IGNITION CONVERSION SYSTEM - PERTRONIX IGNITOR II model169.95
A0992A099263-67ELECTRONIC IGNITION CONVERSION SYSTEM Say goodbye to Point-Type Ignition... Without replacing distributor, modifying harness or compromising appearance! The BreakLess SE ignition kit is designed to convert 1963-67 GM V8 distributors, originally equipped with breaker points and window-style distributor caps (single or dual point), to solid-state electronic ignition. Unlike competitive systems, this is a single wire system. No additional wires protrude from the distributor, only the single, original point wire. The result is a state-of-the-art ignition with a totally stock look. Includes step by step instructions. 3 year warranty. Made in USA. * Single wire operation. * No Chance of mis-wiring your distributor and damaging the module. * Auto shut off feature. * Hall Effect rotary-vane sensor * Over voltage protected * Operates down to 6 volts for cold weather starting. * Can be installed with distributor remaining in car. * Maintenance Free * Legal for use on emission controlled vehicles. *We recommend use of your original factory wiring, window-type distributor and stock coil.195.00
A2547A254763-67GASKET - distributor to intake2.95
A2590A259063-67GEAR - lower distributor drive / black oxide finish as original24.95
A2581A258163-67GROMMET - distributor lead wire4.25
A2462A246263-67GROUND WIRE W/TERMINAL - distributor point plate7.95
 A259563-67HOUSING/BASE - distributor, w/327, cast iron195.00
A2384A238463-67ID BAND - distributor identification bands dated w/part number /new - also originals in stock / inquire39.95
A9917A991763-67LEAD WIRE - distributor to coil13.95
A9917UA9917U63-67 LEAD WIRE - distributor to coil, original, prox 14" 15.95
A2636A263663-67LUBRICANT - distributor cam11.25
A2551A255163-67LUBRICATOR KIT - point opening cam, (retainer w/wick)14.05
A2559A255963-67MAIN SHAFT - tach drive distributor, hi-perf, 340-450hp64.95
A2532A253263-67MAIN SHAFT - tach drive distributor, standard, 250/300hp64.95
 A2559P63-67MAIN SHAFT W/O CAM HEAD - tach drive distributor, remove and install your original cam head52.95
A2506A250663-67POINTS - distributor 24.95
A2509A250963-67POINTS - distributor, Delco D106, w/Delco made in USA logo, NOS  CALL
K3213K321363-67POINT PLATE - distributor, that points & condenser mount to34.95
A2535A253563-67MASTER REBUILD KIT/HI PERF TACH DRIVE DISTRIBUTOR - everything you need to restore your tach drive distributor, 27pc 239.95
A2523A252363-67 MASTER REBUILD KIT/STANDARD TACH DRIVE DISTRIBUTOR - everything you need to restore your tach drive distributor, 27pc239.95
A2412A241263-67REPAIR KIT - Hi-Perf / tach drive distributor 5pc, cross gear, hi perf main shaft, cross gear washer, coupler & button / 340-450hp119.95
A2413A241363-67REPAIR KIT - Standard / tach drive distributor 5pc, cross gear, standard main shaft, cross gear washer, coupler & button / 250-300hp119.95
A2437A243763-67REBUILD KIT/TACH DRIVE DISTRIBUTOR - coupler, cross gear, thrust washer & button / button may not be required, 4pc49.95
 C255263-67REBUILD KIT - tach drive distributor, (w/cross gear, bushings, installation tools)59.95
A2566A256663-67REPAIR KIT - upper distributor, includes plate's seal, felt wick, sleeve on shaft complete10.95
 A240963-67RETAINER/ROLL PIN - lower distributor drive gear shaft1.50
A2499A249963-67ROTOR - D409, equivalent, heavy plastic12.95
A2584A258463-67ROTOR - distributor6.85
A2480A248063-67SCREW - condenser mounting1.65
A2598A259863-67SCREW SET - distributor, vacuum advance (pr)1.45
A2479A247963-67SCREW SET - points, (2 pc.)1.80
A3691A369163-65SEAL - FI upper main distributor shaft13.95
K2510K251063-67SEAL - plastic / under distributor point plate2.95
A2553A255363-67SHIM PACK - between housing & bottom gear, (4 pc.)14.95
A2481A248163-67SLEEVE - main shaft, under top of cam, rubber2.50
A2554A255463-67SMALL PARTS KIT - distributor [10pc]16.75
A2531A253163-67TOOL - point gap adjuster, flexible, w/screw driver handle24.95
A2555A255563-67TOOL - tap guide insert, set screw, tach drive distributor, (9 pc.)9.75
 A255663-67TOOL - threaded drill guide, tach drive distributor13.00
A2477A247763-67TUNE-UP KIT - distributor, points, rotor, condenser & cap, (w/o FI)45.95
A2586A258663-67VACUUM ADVANCE - 327/250-300hp, (repl.)24.95
B2585B258563-67VACUUM ADVANCE - distributor w/hi-perf, replacement26.95
B2599B2599ALLVACUUM ADVANCE - special hi performance, standard #B2849.95
 VA365ALLVACUUM ADVANCE - GM 1115365 - RESTORED ORIGINAL STAMPED MS 365 20  CALL
 VA400ALLVACUUM ADVANCE - GM 1968861 - RESTORED ORIGINAL STAMPED MS 400 15174.95
A2460A246063-67VACUUM ADVANCE - distributor, GM #1116201, 63 all, 64 250-300hp, 65-67 425-435hp, restored original 64.95
 B252464-67VACUUM ADVANCE - distributor, GM #1116236, 64-67 350-375hp, 65 250-375hp, restored original, STAMPED MS 236 16 124.95
B2510B251065-67VACUUM ADVANCE - distributor, GM #1115355, 66-67 300hp, 66-67E 390-425hp, distributors # 1965/1111093, 1111117, 1111141, 1111142, 1111153 & 111119446.95
 B250563-67VACUUM ADVANCE - GM 1115355 - RESTORED ORIGINAL, stamped MS 355 1579.95
B2529B252966-67LVACUUM ADVANCE - distributor, GM #1115360, 1966 1111093/425HP, 1967 LATE 390 - 400hp / RESTORED ORIGINAL / STAMPED MS12, replated, new diaphragm174.95
A2711A271163-67VACUUM ADVANCE RESTORATION - includes replating89.95
A2534A253463-67WASHER - tach drive cross gear, (ea)2.25
K2511K251163-67WASHER - felt / under distributor plate plastic washer seal2.90
B2560B256064-67WASHER/BUSHING - TI distributor, mounts under magnetic pick-up6.95
 A25453763-67 WEIGHT KIT - 2 originals stamped #37, OEM HI PERFORMANCE ORIGINALS29.95
A2545A254563-67 WEIGHT & SPRING KIT - (2 of each)19.95
