1963-67 Arrow SUSPENSION - FRONT & REAR Arrow Front Suspension: Brake, Rotor & Spindle Related

Front Suspension: Brake, Rotor & Spindle Related

Diagrams:

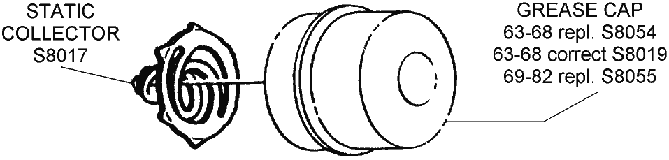

Static Collector and Grease Cap Diagram Thumbnail
Static Collector and Grease Cap
(click to enlarge)


S8046S804663-67BEARING KIT - front wheel, (includes 1 each, inner & outer bearing w/races & inner seal)27.95
 S804863-67BEARING w/RACE - front inner11.85
 S805063-67BEARING w/RACE - front outer12.50
 S700165-67BOLT SET - front brake splash shield, upper caliper bracket12.00
 S804163-67BOLT SET - front caliper mounting, "double circle" headmark, (4 pc.)6.95
 S798063-64BOLT SET - front spindle to knuckle, 4 bolts & 4 nuts, 8pc8.15
 B109865-67BRACKET - caliper mounting, front, LH, (recond./original)69.95
 B109963-67BRACKET - caliper mounting, front, RH, (recond./original)69.95
S8054S805463-67CAP - grease, front wheel / replacement6.95
S8019S801963-67CAP SET - grease, front wheel w/dimple, correct, (pr)17.65
S7699S769963-67COTTER PIN KIT - all correct cotter pins for your suspension, shifter, transmission, clutch & brake system, w/ instructions12.00
 S803463-67GASKET - between front brake splash shield & spindle7.55
 S836663-65HUB - brake drum, front, recond., (ea)95.00
 S806165-67HUB - front rotor, small bearing journal,recond.195.00
 S790863-67KNUCKLE - steering arm, LH, casting #3817593, used, recond.95.00
 S790963-67KNUCKLE - steering arm, RH, casting #3817594, used, recond.95.00
S8025S802563-67NUT - front spindle5.20
 S806563-67NUT, WASHER & COTTER PIN KIT - 6 pc.6.50
 S835063-67RIVET SET - fastens one rotor to hub, as from factory, (5 pc.)5.25
S8039S803965-67ROTOR - front, w/o hub, (transfer old hub)74.00
S8052S805263-67SEAL - front wheel bearing7.50
S7750S775065-67SHIELD - splash, brake flange plate, LH front caliper, w/bright zinc plating, Delco ID & part number89.95
 S775165-67SHIELD - splash, brake flange plate, RH front caliper, w/bright zinc plating, Delco ID & part number89.95
S7754S775465-67SHIELD - splash, brake flange plate, LH front caliper, zinc41.95
S7755S775565-67SHIELD - splash, brake flange plate, RH front caliper, zinc41.95
 S935263-65SPINDLE & KNUCKLE - small spindle bearing journal w/drum brakes, used LH or RH, drum brake only157.50
 S935365-67SPINDLE & KNUCKLE - spindle, small bearing journal, used, LH or RH,disc brake only249.95
 S935463-67SPINDLE & KNUCKLE - large bearing journal, used LH or RH, 69-82 style, repl.95.00
S8030S803065-67STUD - rotor, front or rear, 1 7/8" long2.60
S8165S816565-67STUD KIT - wheel stud, with "TR" marking, set of 510.25
S8056S805663-67WASHER - bearing retainer, front spindle3.00
