1968-82 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, FUEL PUMPS, HEADS, IGNITION SHIELDING, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Alternators Arrow Alternator Supports - 327/350

Alternator Supports - 327/350

Diagrams:


1968-82 327/350 Alternator Support Diagram Thumbnail
1968-82 327/350 Alternator Support
(click to enlarge)

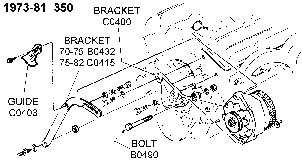

1973-81 350 Alternator Support Diagram Thumbnail
1973-81 350 Alternator Support
(click to enlarge)


A0460A046068-74BOLT KIT - adjusting brace, 5/16-18x1 "WB" headmark bolt w/spec. flat & star washer3.40
B0452B045268-71BOLT KIT - alternator pivot, "TR" headmark5.45
 B049072-82BOLT KIT - alternator pivot, "TR" headmark7.85
B0428B042868-69BRACE - 327/350 alternator support34.60
B0432B043268-74BRACE - alternator adjusting w/bolt & washer, all 1968 w/ sp. hi-perf. all 1970-74 w/35036.75
 C041575-82BRACE - alternator, 35031.95
B0426B042668-71BRACKET - alternator support, 327/35033.95
C0400C040072-82BRACKET - alternator, 350129.95
 C040377-81GUIDE - alternator belt18.95
