1968-82 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, FUEL PUMPS, HEADS, IGNITION SHIELDING, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Fuel System: Carburetors, Parts, Kits, Fuel Filter, Lines, Filters & Fuel Injection Arrow Fuel System: Fuel Lines - Tank to Pump

Fuel System: Fuel Lines - Tank to Pump

Diagrams:

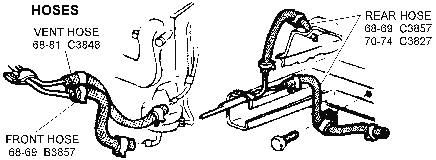

Hoses Diagram Thumbnail
Hoses
(click to enlarge)


B1131B113168BOLT - rear gas line clamp, "E" headmark7.85
C3830C383069-82BOLT SET - brake & fuel line clips4.00
 C385670-82CLAMP - fuel hose "green"1.25
 C385868-82CLAMP - vapor hose "red"1.00
B5076B507668-82CLAMP SET - fuel line, (2 ea. 3/8", 1/2", 5/8")6.25
 C117868CLIP KIT - brake & fuel lines, w/o fuel return line, (18 pc.)10.35
 C115768-72CLIP KIT - brake & fuel lines, w/return line, w/Q-jet carb. 18.00
 C115973CLIP KIT - brake & fuel line14.00
 C116074-82CLIP KIT - brake & fuel line24.95
 C381569-72CLIP KIT - brake & fuel line, w/o gas return line, all w/Holley carbs15.55
C3823C382368CLIP SET - fuel line to frame, yellow zinc dichromate, (7 pc.)13.45
C3825C382568CLIP SET - fuel and vapor line, yellow zinc dichromate15.70
C3846C384670-82HOSE - pump to main fuel line flex, molded "S" shape14.69
C3848C384868-81HOSE - vapor return line , front (except 3x2 or L88), molded "S" shape12.35
B3857B385768-69HOSE & CLAMP KIT - fuel pump to long line, front & rear9.95
C3827C382770-74HOSE & CLAMP KIT - rear flex for fuel, w/clamp8.25
C3829C382969-74HOSE & CLAMP KIT - rear vapor return line9.70
B3865B386568-69HOSE & TOWER CLAMPS - rubber, gas tank sending unit to line10.50
 C383668LINE - gas tank fuel return line, RH85.00
 C383168LINE - gas tank fuel return line, RH, stainless steel79.00
 C383468LINE - gas tank to fuel pump69.00
 C389568LINE - gas tank to fuel pump, stainless steel79.00
 C383869LINE - gas tank to pump85.00
 C383369LINE - gas tank to pump, stainless steel79.00
 C385769-77LINE - gas return, RH59.95
 C384969-77LINE - gas return, RH, stainless steel69.95
 C384470-77LINE - gas tank vapor return, LH, 80.00
 C385070-77LINE - gas tank vapor return, LH, stainless steel109.00
C3840C384070-77LINE - gas tank to pump85.00

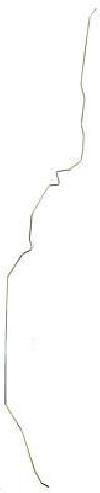

C3897C389770-77LINE - tank to pump line, stainless steel69.95
 C380778-82LINE - gas tank fuel vapor return, LH69.00
 C380978-82LINE - gas tank fuel vapor return, RH, stainless steel59.95
 C380378-82LINE - gas tank gas return, RH80.00
 C380578-82LINE - gas tank gas return, RH, stainless steel109.00
 C380078-82LINE - gas tank to fuel pump85.00
 C380178-82LINE - gas tank to fuel pump, stainless steel69.95
