1968-82 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, FUEL PUMPS, HEADS, IGNITION SHIELDING, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Oil System

Oil System

Diagrams:


1968-73 327/350 Oil Line Diagram Thumbnail
1968-73 327/350 Oil Line
(click to enlarge)

1968-73 427/454 Oil Line Diagram Thumbnail
1968-73 427/454 Oil Line
(click to enlarge)

Dip Stick and Related Diagram Thumbnail
Dip Stick and Related
(click to enlarge)

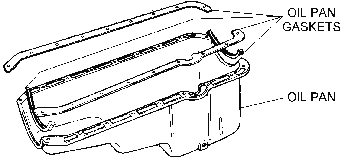

Oil Pan and Gaskets Diagram Thumbnail
Oil Pan and Gaskets
(click to enlarge)


B6500B650068ADAPTER FITTING - oil pressure line, all w/spec hi-perf 427 1/2" x 1/8" NPT5.75
B6501B650168ADAPTER FITTING - oil pressure line, all except spec. hi-perf 427 3/8" x 1/8" NPT5.95
C6533C653369-73ADAPTER FITTING - oil pressure line all except spec hi- perf. 427/454 450 3/8" x 1/8" NPT 45 degree19.05
C6534C653469-71ADAPTER FITTING - oil pressure line, all w/spec. hi-perf. 427/454 L88/LS6, 1/2" X 1/8" NPT 45 degree27.85
C6500C650068-73ADAPTER FITTING - oil pressure line, 68-73 all small block (screws Into block), 68 big block (screws into additional adapter fitting)7.85
A6540A654069-73ADAPTER FITTING - oil pressure line, all big blocks (screws into block), 1/8 x 1/8 NPT4.60
A6543A654369BAFFLE - all w/6 quart oil pan34.50
B6504B650468-74BAFFLE - oil pan, 427/45422.00
C6507C650776-79BAFFLE - oil pan, L8247.75
A6513A651368-82BOLT - oil pump to rear main cap, w/correct hm3.95
A6533A653368-82BOLT SET - oil pan, 327/350, (18 pc.)14.35
B6571B657168-74BOLT SET - oil pan, 427/45419.95
C6516C651669-72BRACKET - oil pressure line, 427/45410.10
B6540B654068CAP - oil filler, "S" logo rivet, 327 special hi-perf., chrome18.45
B6509B650968CAP - oil filler, "S" logo rivet, base 327, black  CALL
 C651869-82CAP - oil filler, chrome, twist-in13.10
 C652069-82CAP - oil filler, plain, twist-in, 3505.25
C6504C650471-76CAP - oil cap, rubber (w/"OIL" letters only,) 71-72 all w/350, 71-74 all w/4546.00
C6510C651069-82CAP - oil filler, chrome, "S" logo, 68-70 427, 454, 69 350 sp. hi-perf., 70-82 w/LT1 aluminum valve covers14.60
 G650068-82CLEANER - concrete degreaser, removes oil & grease stains from concrete driveway & garage floors, (64 oz. bottle)6.95
 B651068-74DIP STICK - oil, 327/350, chrome repl38.80
B6516B651668-74DIP STICK - oil, 327/350, black finish, 21" blade, 24.5" overall length 22.95
B6509B650968-74DIP STICK - engine oil, 327, w/natural finish, 21" blade, 24.5" overall length  CALL
C6528C652868-69DIP STICK - oil, 427, w/white button end16.85
 C653070-74DIP STICK - oil, 427/45410.15
 C651575-76EDIP STICK - oil, measures 17 5/16" from cap to full mark15.00
C6517C651776L-79DIP STICK - oil, measures 18 3/16" long / w/green button7.75
 C650368-82FILTER - oil, PF25 PF29 (spin on replacement)16.95
C6502C650270-72FILTER - oil, PF25, white w/red & blue silk screen43.35
 A653768-82GASKET - oil drain pan plug3.95
 A653268-82GASKET KIT - oil pan, 327/35019.95
 B657368-74GASKET KIT - oil pan, 427/45418.05
C4700C470068-74GROMMET - oil line & tach cable wire harness, 4 hole, in firewall7.20
C6512C651268-73LINE - oil pressure, 68 all, 69-73 w/350, (plastic)8.70
C6514C651469-72LINE KIT - oil pressure, 427/45436.95
C6505C650568-73LINE KIT - oil pressure w/fittings, 68 all, 69-73 w/35021.75
 C658868-69OIL FILTER - PF-29 as original/white body w/blue-red lettering 39.95
B6599B659968-74OIL PAN - all w/power steering [referred to as 5 quart pan/actual capacity 4 quarts]299.95
 C650175-79OIL PAN - 350/L48122.30
 C650675-79OIL PAN - 350/L82140.30
 B651368-74OIL PAN - 427/454219.00
 B652368-82PLUG - oil drain, magnetic5.95
A6536A653668-82PLUG - oil drain, in oil pan6.25
B6535B653568-74REINFORCEMENT KIT - oil pan, 427/454, 4pc27.20
 A654469-80STUD - 350, sp. hi-perf. oil pan baffle, (ea)17.95
C8678C867873-81SWITCH - oil pressure sender41.45
 C867982SWITCH - oil pressure sender82.00
C6513C651368TUBE - oil filler, 327/350hp, hi-perf., chrome39.25
C6511C651168TUBE - oil filler, all 327, w/o hi-perf., black36.80
A6538A653868-79TUBE - oil dip stick, lower (in block), 327/350 engine15.50
B6520B652068-69TUBE - oil dipstick, 42721.75
B6514B651468-74TUBE - oil dipstick, 327/35017.05
B6512B651268-74TUBE - oil dipstick, (chrome repl)13.45
C6532C653270-74TUBE - oil dipstick, 45435.75
 C652175-76ETUBE - oil dipstick, measures 6.5" from shoulder to top of tube4.25
C6523C652380-81TUBE - oil dipstick34.00
