1968-82 Arrow HEAD LIGHT ASSEMBLIES & COMPONENTS Arrow Headlight Assemblies & Components

Headlight Assemblies & Components

Diagrams:


1968-82 Headlight Assembly Diagram Thumbnail
1968-82 Headlight Assembly
(click to enlarge)

Actuator Detail Diagram Thumbnail
Actuator Detail
(click to enlarge)


 C496668-82ACTUATOR - headlight door control, LH83.50
C4967C496768-82ACTUATOR - headlight door control, RH83.50
 C493968-82 ADJUSTER & SCREW KIT - headlight capsule, 8 pieces to do one headlight bucket3.25
C4929C492968-82BEARING - headlight housing opening, w/retainer, (4 req.)(ea)12.49
C4902C490268-82BEZEL - headlight, fiberglass, LH59.00
C4903C490368-82BEZEL - headlight, fiberglass, RH59.00
C4936C493668-82BOLT - headlight housing actuator link10.95
C4912C491268-82BOOT - dust, headlight actuator, accordian shape11.95
C4956C495668-82BRACKET - headlight actuator6.00
C0954C095468-82BRACKET - header bar reinforcement, to inner skirt, LH34.75
C0953C095368-82BRACKET - header bar reinforcement, to inner skirt, RH16.50
 A600568-82BULB - headlight, hi beam, standard replacement, (ea)9.95
 A600668-82BULB - headlight, hi-low beam, standard replacement, (ea)9.95
C4938C493868-82BUSHING - headlight housing actuator link4.25
 C494068-82BUSHING/SLEEVE - headlight housing link, (cut to length)2.95
 C495168-82CANISTER/RESERVOIR - headlight/wiper door vacuum storage, can be used as 68-79 replacement64.15
C4930C493068-82CHECK VALVE - vacuum, headlight reservoir18.50
C4908C490868-82CLEVIS LINK - headlight actuator15.25
C4998C499868-82COVER SET - headlight actuator, chrome39.95
 C499168-82COVER SET - headlight actuator, chrome44.95
B4947B494768-82CUP - headlight bulb retaining, inner, LH16.50
B4951B495168-82CUP - headlight bulb retaining, inner, RH16.50
B4964B496468-82CUP - headlight bulb retaining, outer, RH16.50
B4948B494868-82CUP - headlight bulb retaining, outer, LH16.50
C4910C491069-82DOOR - headlight, LH259.00
C4911C491169-82DOOR - headlight, RH259.00
C4928C492868-82FILTER/VALVE - headlight hoses9.95
C4974C497468-72GROMMET - vacuum lines & wire harness in radiator support3.80
C2899C289968-82GROMMET - firewall, 3 hole vacuum hoses, (ea)7.25
C0905C090568-82HEADER BAR - hood surround & headlight reinforcement187.95
 C501169-74HEADLIGHT ASSEMBLY - complete, LH699.00
 C501269-74HEADLIGHT ASSEMBLY - complete, RH699.00
C4922C492268-82HEADLIGHT ASSEMBLIES/COMPLETE - replacement, fiberglass w/rectangular bulbs, fixed position, pr649.95
C4984C498475-82HEADLIGHT ASSEMBLY - complete, LH699.00
C4985C498575-82HEADLIGHT ASSEMBLY - complete, RH699.00
 B513968HOSE - vacuum, 1/8" ID, w/white strip, (per foot)5.52
C4953C495369HOSE KIT - headlight washers, 3 port pump34.85
C4955C495570-72HOSE KIT - headlight washers, 5 port pump31.60
C4952C495268-82INSERT - headlight housing actuator rear link3.25
C4934C493468-82LINK - headlight housing front14.45
C4954C495468-82LINK - headlight housing rear32.95
C4979C497968-82MANUAL - headlight & wiper vacuum system trouble shooting, complete step-by-step diagnostic guide11.50
C4913C491368-72MOUNT KIT - headlight shields3.95
C4904C490469-71ENOZZLE KIT - headlight washer, w/mount kit, (4 pc.)48.25
C4942C494268-82PIN - headlight housing actuator link12.95
C4950C495068-82PIN - headlight housing actuator rear link4.95
C4978C497868-82PLATE - center fender skirt reinforcement6.75
C4918C491868-82RELAY - headlight actuator solenoid valve on inner fender (68-69 1 req., 70-82 2 req.)72.25
C4909C490968-82RETAINING RING - headlight actuator seal (necessary if you break a tab while replacing headlight actuator seal)9.35
A4931A493168-82RING - headlight bulb retainer, stainless steel, (4 req.)(ea)12.95
 B093468-82RIVET SET - soft aluminum flat head 7/16" long, (50 pc.)5.95
C4972C497268-82ROD - headlight actuator support, inboard, LH14.95
C4973C497368-82ROD - headlight actuator support, inboard, RH14.95
C4970C497068-82ROD - headlight actuator support, outboard, LH14.95
C4971C497168-82ROD - headlight actuator support, outboard, RH14.95
 A493468-82SCREW - headlight capsule adjustment1.75
 C490668-82SCREW SET - headlight bulb, retaining ring, (4 pc.)2.85
 C342468-82SCREW SET - headlight bezel, (8 pc.)3.75
C4969C496968-82SCREW SET - headlight bezel, (12 pc.)8.65
A4999A499968-82SCREW SET - headlight capsule adjuster to door, 20pc7.95
C4968C496868-82SEAL - headlight actuator rod12.95
C4900C490068-69ESHIELD SET - headlight, (behind grille)(pr)69.95
C4901C490169-72SHIELD SET - headlight, (behind grille)(pr)49.95
C4977C497768-82SLEEVE - headlight actuator rear link, (ea)2.25

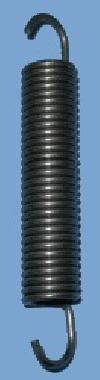

C4750C475068-82SPRING - headlight actuator link, (stainless steel)(ea)4.35
A4910A491068-82SPRING - headlight capsule tension, straight type2.50
C4751C475168-82SPRING - headlight housing, (stainless steel)(ea)4.35
C4946C494668-82SPRING - headlight actuator link7.95
C4948C494868-82SPRING - headlight housing4.60
C4926C492668-82STOP - headlight bearing control4.95
C4924C492470-82STOP - headlight door, LH, reconditioned29.95
C4925C492570-82STOP - headlight door, RH, NOS29.95
C4949C494968-79STOP SCREW & NUT - headlight door, (pr)8.40
C4960C496068-74SUPPORT - headlight housing, LH234.00
C4961C496168-74SUPPORT - headlight housing, RH234.00
C4962C496275-82SUPPORT - headlight housing, LH183.35
C4963C496375-82SUPPORT - headlight housing, RH183.35
C8651C865169-77SWITCH - headlight door open warning, (2 req.)(ea)31.50
C4932C493268-82SWITCH/VALVE - light vacuum door opening override, under dash20.95
B2984B298468-74TIE STRAP - headlight hose retainer, black, "T" shape3.10
 C299469-75TIE STRAP - 7" repl., "T" style (2-7 req.)(ea)1.50
