1968-82 Arrow INTERIOR - CARPET, CONSOLE, DASH & TRIM, DOOR PANELS, DYE, FIREWALL INSULATION, SEATS & MORE Arrow Console

Console

Diagrams:


1968-71 Console Fiber Optic System Diagram Thumbnail
1968-71 Console Fiber Optic System
(click to enlarge)

1977-82 Console / Dash Diagram Thumbnail
1977-82 Console / Dash
(click to enlarge)

1978-76 Console / Dash Diagram Thumbnail
1978-76 Console / Dash
(click to enlarge)

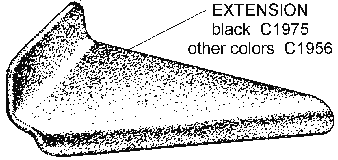

Extension Diagram Thumbnail
Extension
(click to enlarge)

Forward Shift Console Repair Kit Diagram Thumbnail
Forward Shift Console Repair Kit
(click to enlarge)

Lighter and Lighter Housing Diagram Thumbnail
Lighter and Lighter Housing
(click to enlarge)

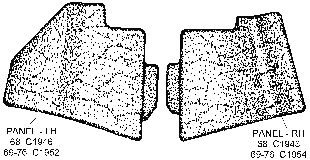

Panels Diagram Thumbnail
Panels
(click to enlarge)

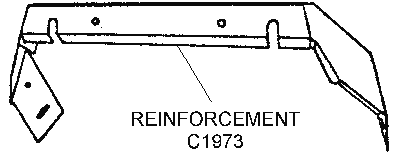

Reinforcement Diagram Thumbnail
Reinforcement
(click to enlarge)

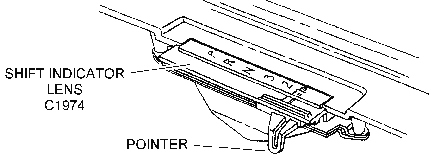

Shift Indicator Lens and Pointer Diagram Thumbnail
Shift Indicator Lens and Pointer
(click to enlarge)

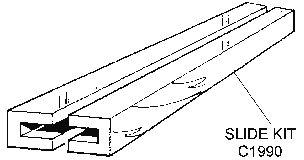

Slide Kit Diagram Thumbnail
Slide Kit
(click to enlarge)

Slide Kit Diagram Thumbnail
Slide Kit
(click to enlarge)


B1912B191268-79ASHTRAY13.95
C1982C198277-82ASHTRAY - w/courtesy lamp lens15.00
C4271C427168BEZEL - center gauge and clock surround, smooth finish w/wiper override381.70
C2105C210568BEZEL - center gauge and clock surround, smooth finish w/o wiper override lens376.70
C2102C210269-71BEZEL - center gauge & clock surround164.95
C2108C210872-76BEZEL - center gauge & clock surround162.90
C2110C211077BEZEL - center gauge & clock surround91.95
C8763C876381-82BEZEL - center guage surround w/o clock, (clock in radio)149.95
C2112C211278-82BEZEL - center guage & clock surround, w/o CB99.00
C8764C876482BEZEL - center guage & oil temp w/ CB Clock in radio, Collector Edition finish149.95
C8765C876582BEZEL - center guage & clock surround w/o CB Collector Edition finish149.95
C1938C193868-76BEZEL - parking brake console front "T" filter28.35
C1915C191568-76BOOT - manual shift, leather, (68-69 repl.)(specify color)39.95 Specify Color
C1958C195868-69BOOT - shifter, 3 & 4 speed, rubber w/steel insert, (68 repl)45.95
C1960C196070-76BOOT - 3 & 4 speed shifter, black leather, as original29.95
C1917C191777-82BOOT - 4 speed & automatic shifter, (specify color)49.95
C1962C196277-82BOOT - 4 speed & automatic shifter, black leather as original31.95
C7328C732868-81BOOT/SEAL - lower, 3 or 4 speed shifter, w/retainer31.75
B2105B210568-82BOLT SET - radiator core support, (6 pc.)8.98
 C199168-69CONSOLE - forward shift, hard plastic, black169.95
C1955C195570CONSOLE - forward shift, hard plastic, black169.95
 C199371CONSOLE - forward shift, hard plastic, black169.95
 C195772-76CONSOLE - forward shift, hard plastic, black169.95
C1902C190268-69CONSOLE - forward shift, padded as original, (specify color)276.70 Specify Color
C1904C190470CONSOLE - forward shift, padded as original, (specify color)239.95 Specify Color
C1906C190671CONSOLE - forward shift, padded as original, (specify color)239.95 Specify Color
C1908C190872-76CONSOLE - forward shift, padded as original, (specify color)239.95 Specify Color
C1981C198168CONSOLE - parking brake w/power windows, (specify color)159.95 Specify Color
C1983C198368CONSOLE - parking brake w/o power window, (specify color)119.95 Specify Color
C1918C191868CONSOLE - parking brake w/power windows, specify color114.95 Specify Color
C1920C192068CONSOLE - parking brake w/o power windows, specify color109.95 Specify Color
C1961C196169-76CONSOLE - parking brake w/power window, (specify color)89.95 Specify Color
C1963C196369-76CONSOLE - parking brake w/o power window, (specify color)82.95 Specify Color
C1926C192669-76CONSOLE - parking brake w/power windows, (black)87.40
C1924C192468-76CONSOLE - parking brake w/o power windows, (black)81.70
C1943C194377-82COVER - parking brake49.95
 C194577-82CONSOLE COVER - parking brake, (specify color)69.95 Specify Color
C5120C512077-79CONTROL ASSEMBLY - heater/AC, (on console)159.95
C5103C510380-82CONTROL ASSEMBLY - (console) heater & AC139.95
 C198877-82DOOR - ashtray73.25
B2171B217168-82ELEMENT - cigarette lighter12.95
 C197568-75EXTENSION - forward console side trim, convertible w/AC, black53.40
 C195668-75EXTENSION - forward console side trim, convertible w/air conditioning, (specify color)73.30 Specify Color
C1990C199068-76GLIDE/SLIDE KIT - ashtray door, (pr)8.30
C1302C130268-82HANDLE/LEVER ASSEMBLY - parking brake, rubber covered446.95
 C193068-76HARDWARE KIT - parking brake console, front & rear reinforcement, front bezel, slider72.40
 C192868-76HARDWARE KIT - parking brake, includes screws & nuts to install parking brake console6.25
 C198468-82HOUSING - cigarette lighter, female, in console18.55
 B216668-82HOUSING & RETAINER KIT - cigarette lighter, in console, (2 pc.)23.95
C1970C197068-76INDICATOR PLATE - 4 speed shifter18.95
 C731377-81INDICATOR PLATE - 4 speed shifter15.95
C1964C196468-69E INDICATOR PLATE - auto shift, black plastic, raised chromed letters11.25
 C580270-71INSERT - console, wood grain, w/AC23.95
 C580170-71INSERT - console, wood grain, w/o AC24.95
C1996C199672-76INSERT - shifter console plate, w/AC, wood grain25.95
 C199572-76INSERT - console, wood grain, w/o AC25.95
C2114C211468-76KNOB - air vent outlet, (chrome)8.75
 C195369L-76KNOB - air vent control, (w/o AC)7.25
C1951C195168-69E KNOB SET - vent, w/o AC, (pr)48.40
C5111C511168LENS - heater/AC selector control, w/AC14.45
C5109C510968LENS - heater selector control, w/o AC20.45
C1916C191668-71LENS SET - fiber optic in dash front and rear, (pr)23.45

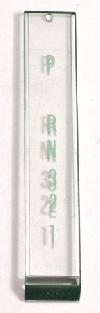

C1939C193969-71LENS - automatic shifter plate indicator, green letters11.85
C5115C511569-71LENS - heater/AC selector control, w/AC14.45
C5113C511369-71LENS - heater selector control, w/o AC14.75
C5162C516269L-71LENS - automatic shifter (green) indicator22.95
C1966C196672-76LENS - automatic shift indicator, blue letters11.65
C5117C511772-75LENS - heater/AC selector control20.45
C5116C511672-75LENS - heater selector control, w/o AC16.95
C1974C197477-81LENS - automatic shift indicator15.15
 C194777-81LENS - center gauge cluster, all small gauges23.75
C4276C427677-82LENS - heater/AC selector control, (clear)22.95
 C510777-82LEVER - heater/AC selector control13.25
C5102C510277-82LENS - ashtray2.40
C1977C197782LENS - automatic shift indicator22.35
C1980C198068-82LIGHTER11.15
C3472C347268-72MOUNT KIT - parking brake console, (20 pc.)6.35
C3430C343077-82NUT SET - center console side panel, anchor type, plastic, 4PC3.25
 G500368-76PAINT - semi-gloss black for 68-76 center gauge and shifter console (12 oz aerosol can)6.50
 C194468PANEL SET - forward console side panels w/clips (pr)(specify color)166.20 Specify Color
C1950C195069-76PANEL SET - forward console side panels, LH/RH (pr)(specify color)119.99 Specify Color
C1900C190077PANEL SET - console side trim, vinyl covered, specify color, (pr)129.95 Specify Color
C1903C190378-81EPANEL SET - console side trim, pr45.90
C1959C195981L-82PANEL SET - console side trim, pr34.95
C1912C191268PLATE - fiber optic trim23.75
C1914C191469-71PLATE - fiber optic trim32.70
C5118C511877-82PLATE - heater/AC control face21.95
C1801C180169PLATE ASSEMBLY - shifter console, 4 speed w/air conditioning326.00
C1802C180269PLATE ASSEMBLY - shifter console, 4 speed w/o air conditioning326.00
C1803C180369PLATE ASSEMBLY - shifter console, auto w/air conditioning326.00
C1804C180469PLATE ASSEMBLY - shifter console, auto w/o air conditioning342.00
C1805C180570-71PLATE ASSEMBLY - shifter console, 4 speed w/air conditioning325.00
C1806C180670-71PLATE ASSEMBLY - shifter console, 4 speed w/o air conditioning330.00
C1807C180770-71PLATE ASSEMBLY - shifter console, auto w/air conditioning336.00
C1808C180870-71PLATE ASSEMBLY - shifter console, auto w/o air conditioning327.00
C1812C181272-74PLATE ASSEMBLY - shifter console, auto w/o AC, w/o shift indicator lines269.95
C1809C180972-76PLATE ASSEMBLY - shifter console, 4 speed w/air conditioning269.95
C1810C181072-76PLATE ASSEMBLY - shifter console, 4 speed w/o air conditioning269.95
C1811C181172-76PLATE ASSEMBLY - shifter console, auto w/AC, w/o shift indicator lines269.95
C1818C181875-76PLATE ASSEMBLY - shifter console, auto, w/PW, w/shift indicator lines269.95
C1819C181975-76PLATE ASSEMBLY - shifter console, auto, w/o AC, w/shift indicator lines269.95
C1967C196777-82PLATE ASSEMBLY - shifter console, auto trans, (no cut outs)56.70
C1907C190777-82PLATE ASSEMBLY - shifter console, auto trans, w/power windows52.95
C1909C190977-80EPLATE ASSEMBLY - shifter console, w/PW & rear defrost68.40
C1910C191080L-81PLATE ASSEMBLY - shifter console, w/PW & rear defrost52.95
 C471677-82PLATE - manual, shift console w/power window72.25
 C471980L-82PLATE - manual, shift console w/power windows, defroster & mirror86.70
 C472081-82PLATE - manual, shift console w/power mirror & defroster72.25
 C471880L-82PLATE - manual, shift console w/power windows & defroster72.25
 C471777-80EPLATE - manual, shift console w/power windows & defroster72.25
C1913C191381-82PLATE ASSEMBLY - shifter console, w/PW & power mirror52.95
C1911C191181-82PLATE ASSEMBLY - shifter console, w/PW, rear defrost & power mirrors68.40
C1813C181382PLATE ASSEMBLY - Collectors Edition console plate, w/pw99.95
C1799C179982PLATE ASSEMBLY - Collectors Edition console plate, w/pw & defroster104.95
C1798C179882PLATE ASSEMBLY - Collectors Edition console plate, w/pw & defroster & power mirrors136.50
C1797C179782PLATE ASSEMBLY - Collectors Edition console plate, w/pw & power mirrors104.95
C1973C197368-76REINFORCEMENT - front forward console22.10
C1940C194068-76REINFORCEMENT - parking brake console front w/chrome trim ring39.95
 C194268-76REINFORCEMENT - parking brake console rear mount23.75
 C190168-76REPAIR KIT - forward shift console, (for fixing mounting tabs)45.90
C1905C190568-76RETAINER - ash tray and lighter, die cast, chrome plate44.35
 C192168-76RETAINER/SPRING CLIP - ashtray console cover, keeps tray from idling open6.50
C3403C340368-73SCREW SET - shifter console plate, (4 pc.)2.75
C3467C346768-76SCREW SET - radio side panel, (4 pc.)3.50
C3404C340468-76SCREW SET - shifter boot, (4 pc.)2.95
 C340168-76SCREW SET - parking brake console, (4 pc.)2.65
C3402C340268-76SCREW SET - center gauge console, (9 pc.)4.75
C5380C538077-82SCREW SET - console side trim panels, (4 pc.)2.95
 C346677-82SCREW SET - shifter boot, (4 pc.)2.95
B1950B195068-76SLIDER - around parking brake handle, (black plastic)4.95
C1969C196968-76SLIDE (SEAL) KIT - automatic shift, upper & lower, black plastic, (pr)12.75
