Diagrams:

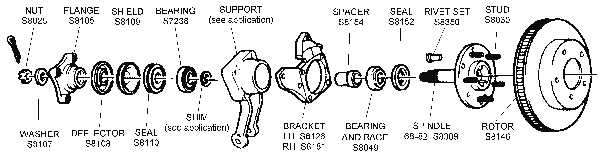

Detail View
(click to enlarge)

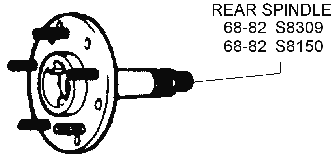

Rear Spindle Diagram Thumbnail

Rear Spindle
(click to enlarge)

S7238	68-82	BEARING & RACE - rear, inner	38.25
S8049	68-82	BEARING & RACE - rear outer	27.60
S8112	68-82	BEARING KIT - rear wheel (incl. 1 each of: rear inner bearing & seal, rear outer bearing & seal	44.95
S8338	68-82	BEARING, SPACER & TOOL KITS - rear wheel servicing	329.95
B6592	68-79	BOLT, NUT & COTTER PIN KIT - rear end carrier mount bracket w/THT trans., (6 pc.)	16.25
S8108	68-82	DEFLECTOR - dust, rear spindle flange	3.75
S8386	68-79	FLANGE - rear spindle, reconditioned	65.00
S8427	80-82	FLANGE - rear spindle 80-81 w/manual trans.& 82 w/automatic	210.00
S8425	80-81	FLANGE - rear spindle, 80-81 w/manual trans., 82 w/automatic, reconditioned	54.00
S8428	80-81	FLANGE - rear spindle w/automatic trans.	84.00
S8426	80-81	FLANGE - rear spindle w/auto. trans., reconditioned	57.00
S8025	68-82	NUT - castle, rear spindle	5.20
S8350	68-82	RIVET SET - rotor to hub, as from factory, (5 pc.)	5.25
S8146	68-82	ROTOR - rear	74.00
S8110	68-82	SEAL - rear wheel inner bearing	6.00
S8152	68-82	SEAL - rear wheel outer bearing	7.75
S8109	68-82	SHIELD - dust, rear inner wheel bearing	4.95
S7761	68-82	SHIM & SPACER KIT-rear wheel bearing, incl. 9 shims & 1 spacer	69.95
S8331	68-82	SHIM - rear wheel bearing, .139 thickness	4.25
S8309	68-82	SPINDLE - rear	159.95
S8154	68-82	SPACER - rear wheel bearing	17.65
S8030	68-82	STUD - front rotor retaining, 1 7/8" long	2.60
S8165	68-70	STUD KIT - wheel stud, with "TR" marking, set of 5	10.25
S9377	68-74	SUPPORT - spindle, LH w/small lower shock support ears, reconditioned original	199.95
S9378	68-74	SUPPORT - spindle, RH w/small lower shock support ears, reconditioned original	199.95
S8077	68-82	SUPPORT - spindle, LH, reconditioned original, w/large lower shock support ears, (68-74 repl.)	159.95
S8029	68-82	SUPPORT-spindle, RH, w/large lower shock support ears, 68-74 repl. reconditioned original	159.95
S8107	68-82	WASHER - rear spindle	6.80
