1968-82 Arrow WINDSHIELD WIPER SYSTEM & RELATED Arrow Windshield Wiper Arms & Washer System

Windshield Wiper Arms & Washer System

Diagrams:


1968-75 Washer Bottle System Diagram Thumbnail
1968-75 Washer Bottle System
(click to enlarge)

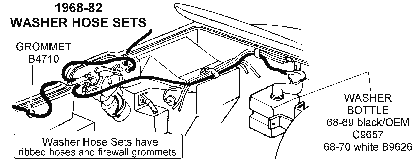

1968-82 Washer Hose Sets Diagram Thumbnail
1968-82 Washer Hose Sets
(click to enlarge)

1975-82 Washer Bottle System Diagram Thumbnail
1975-82 Washer Bottle System
(click to enlarge)

Windshield Wiper System Diagram Thumbnail
Windshield Wiper System
(click to enlarge)


C9738C973868ARM SET - windshield wiper, pr 134.95
 C973269-74EARM SET - windshield wiper, w/windshield washer tubes, LH & RH, (pr)141.95
 C959674L-82ARM SET - windshield wipers109.95
C9626C962668BAG - washer, w/cap & hose, w/AC64.95
C9628C962869-72BAG - washer, w/cap & hose, w/AC73.40
 C960468-82BLADE/INSERT SET - windshield wiper holder, rubber, 16"11.95
C9624C962468-72BOLT/ANCHOR SET - windshield wiper door vacuum reservoir tank to inner fender attaching, (8 pc.)23.29
 C962568-72BOLT & BUSHING SET - windshield wiper door linkage pivot, mounts wiper door to linkage, include. 4-C9644 & 8-C967623.95
B9629B962968-69BRACKET - windshield washer jar, w/o AC31.89
 C966370-72BRACKET - WINDSHIELD WASHER JAR W/O AC20.90
C9726C972673-74BRACKET - windshield washer jar neck support 14.50
C9630C963068BRACKET - washer bag, w/AC23.15
C9632C963269-72BRACKET - washer bag, w/AC20.65
 C963170-72BRACKET - washer reservoir bottle extension26.75
B9628B962868-72CAP - washer bag, w/air conditioning6.25
B9627B962768-75CAP - washer bottle (68-72 w/o AC, all 73-74), no legend on cap7.35
 B9627L68-75CAP - washer bottle w/o ac, with legend on cap WINDSHIELD WASHER FLUID ONLY7.35
C9679C967975-82CAP - windshield washer reservoir extension9.25
C9615C961569-73CLIP SET - windshield washer hose to tube nozzle, 2 per tube, silver, sharp tangs as original, (2 pc.)9.44
C9633C963369-77CLIP SET - windshield washer nozzle tube, LH, (3 pc.)16.25
C9635C963569-77CLIP SET - windshielf washer nozzle tube, RH, (3 pc.)16.25
C9725C972574-82CONNECTOR - windshield washer hose to arm hose, plastic7.60
C9791C979168-74COVER - windshield washer motor pump 19.95
C9751C975168-74CUSHION - windshield wiper arm stop9.70
 C966471-82EXTENSION - windshield washer reservoir bottle, ( repl.)16.75
B9631B963168-74FILTER - windshield washer hose pick-up6.85
 C966575-82FILTER - windshield washer pump4.60
C2899C289968-82GROMMET - vacuum hose thru firewall, 3 hole7.25
B4710B471068-82GROMMET SET - washer/water hose firewall, 2 pc. 3.29
 C969268HOSE SET - windshield washer, w/AC14.95
C9691C969168HOSE SET - windshield washer, w/o AC19.95
 C969369-72HOSE SET - windshield washer, w/AC14.95
C9694C969469HOSE SET - windshield washer, w/o AC15.95
C9696C969670HOSE SET - windshield washer, w/o AC14.95
C9697C969771-72HOSE SET - windshield washer, w/o AC14.95
C9698C969873-74HOSE SET - windshield washer24.95
C9699C969975-76HOSE SET - windshield washer14.95
C9671C967177-82HOSE SET - windshield washer15.95
C9657C965768-69JAR/BOTTLE - washer, w/o AC, black, as original42.25
B9626B962668-69JAR/BOTTLE - washer, w/o AC, white25.45
C9662C966270-74JAR - washer reservoir29.25
C9600C960075-79EJAR - washer reservoir32.95
 C960179L-82JAR - washer reservoir  CALL
C9661C966168-72KNOB - wiper over ride switch22.50
C2132C213268-72KNOB - wiper switch6.95
 C213473-77KNOB - wiper switch6.70
C9642C964278-82KNOB - wiper switch, (has arrow for delay)17.00
C9472C947268NOZZLE SET - windshiled washers, pr49.95
 B967168-74REBUILD KIT - washer pump, standard, w/straight white nozzle end25.95
B9707B970768-70RIVET SET - washer bottle bracket to inner fender, w/o AC, (3 pc.)1.75
C9667C966769SOLENOID - headlight washer squirters anti drip valve, on wiper motor pump204.95
B2984B298468-74TIE STRAP - "T" style, 5" black3.10
 C299478-82TIE STRAP - top shield to hood cable, (2 req.)(ea)1.50
A9665A966568-82TOOL - windshield wiper arm removal8.10
 C960568-82TRANSMISSION - windshield wiper link assembly LH, (used)75.00
 C961968-82TRANSMISSION - windshield wiper link assembly RH, (used)75.00
C9695C969569-74ETUBE/NOZZLE - windshield washer, brass, clips to wiper arm, LH32.95
C9639C963969-74ETUBE/NOZZLE - windshield washer, brass, clips to wiper arm, RH32.95
 C964668-73WASHER PUMP - windshield wiper motor, w/barrel terminals & cover w/white pump body, 3 port, restored, original139.95
 C961468-73WASHER PUMP - windshield wiper motor, (3 port)86.50
 C961875-82WASHER PUMP - windshield wiper motor41.95
