1968-82 Arrow WINDSHIELD WIPER SYSTEM & RELATED Arrow Windshield Wiper Door

Windshield Wiper Door

Diagrams:


1968-72 Wiper Door Diagram Thumbnail
1968-72 Wiper Door
(click to enlarge)

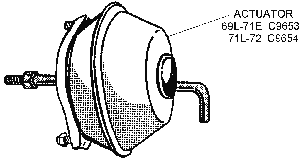

Actuator Diagram Thumbnail
Actuator
(click to enlarge)

Detail Diagram Thumbnail
Detail
(click to enlarge)

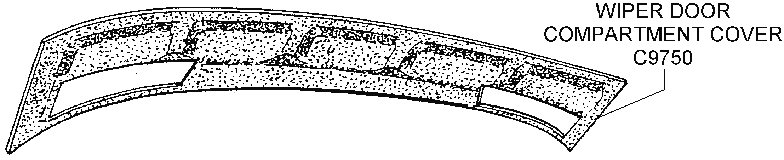

Wiper Door Compartment Cover Diagram Thumbnail
Wiper Door Compartment Cover
(click to enlarge)

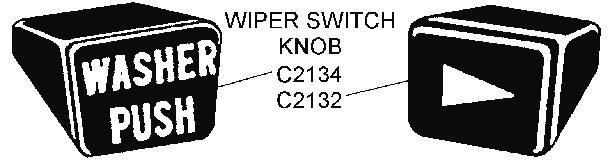

Wiper Switch Knob Diagram Thumbnail
Wiper Switch Knob
(click to enlarge)


C9651C965168EACTUATOR - vacuum, windshield wiper door, 1/4" shaft size187.95
C9652C965268-69ACTUATOR - vacuum, windshield wiper door, 5/16" shaft size149.95
C9653C965369L-71EACTUATOR-vacuum, windshield wiper door straight vacuum outlet118.95
C9654C965471L-72ACTUATOR-vacuum, windshield wiper door curved vacuum outlet97.95
C9644C964468-72BOLT - wiper door4.75
C9648C964868-72BOOT - dust, wiper door actuator rod, rear / accordian style13.25
 C967868-69BOLT & BUSHING KIT -windshield wiper door (2 bolts, 2 plastic bushings, for mounting 68/69 style wiper actuator to bracket) (set)10.55
 C960668-73BRACKET - windshield wiper arm stop17.79
C9850C985068-69EBRACKET - windshield wiper door actuator mounting34.95
C9656C965669L-72BRACKET - windshield wiper door actuator mounting (will also work on 68-69 when 70-72 actuator is used)55.02
 C967668-72BUSHING - windshield wiper door linkage, (8 req.)(ea)1.35
 C495168-82CANISTER/RESERVOIR - headlight/wiper door vacuum storage.64.15
C4930C493068-82CHECK VALVE - vacuum, headlight reservoir18.50
C3437C343768-72CLIP/RETAINER SET - wiper door trim molding, 5 pc.28.75
C9750C975073-82COVER - wiper compartment94.95
 C873268DOOR - windshield wiper, used  CALL
C9598C959869-72DOOR - windshield wiper, used  CALL
 C973468-72DOOR ASSEMBLY - windshield wiper door, mechanism door molding grill, complete, (original)  CALL
 C967068-72GRILLE - wiper door, reconditioned  CALL
B9689B968968-82GROMMET - wiper motor mount, w/sleeve & screw10.85
C9661C966168-72KNOB - wiper over ride switch22.50
C2132C213268-72KNOB - wiper switch6.95
 C213473-77KNOB - wiper switch6.70
C9642C964278-82KNOB - wiper switch, has arrow for delay17.00
C9683C968368LINKAGE - windshield wiper door, w/ 1/4-20 stud, reconditioned324.95
 C969069-72LINKAGE - windshield wiper door, w/ 5/16-20 stud, reconditioned  CALL
C4979C497968-82MANUAL - headlight & wiper vacuum system trouble shooting, complete step-by-step diagnostic guide11.50
 C967568MOLDING - windshield wiper door195.00
 C967369-72MOLDING - windshield wiper door  CALL
C9649C964968NUT - wiper door actuator rod, LH/RH threads, (1/4" both ends)22.50
C9597C959768L-69ENUT - wiper door actuator rod, 5/16 RH & 1/4 LH thread30.55
 C965069-72NUT - wiper door actuator rod, LH/RH threads, (5/16" both ends)12.75
C9727C972768-72REINFORCEMENT - wiper door control, GM #3921586, 3 required, each6.45
C4918C491868-72RELAY - wiper door actuator solenoid valve, on inner fender72.25
C9645C964568-72REPAIR KIT - deluxe, windshield wiper door linkage, (16 rivets & 32 bushings)69.95
C9674C967468-72REPAIR KIT - windshield wiper door (8 bushings, 4 long bolts), mounts wiper door to linkage23.00
C9634C963468-72REPAIR KIT - windshield wiper door linkage, (1 rivet & 2 bushings)8.07
 C963168-72SCREW SET - linkage, wiper grille to wiper door, fastens w/special undersize fillister head, (8 pc.)26.75
C3497C349768-82SCREW SET - windshield molding on fender top, outer, (2 pc.)2.40
C3431C343168-72SCREW SET - wiper door grille, (8 pc.)4.00
 C965869L-72SEAL - wiper actuator rod, on actuator12.50
 C972869L-72SEAL KIT - wiper actuator, plug, boot & seal21.10
C9617C961768-72SHIM - windshield wiper door actuator3.75
C9669C966968-72SOLENOID/VALVE - wiper door on rear of tachometer  CALL
C9621C962168-72SWITCH - wiper door limiting, on firewall, micro type (w/o harness)63.40
C9687C968769SWITCH - windshield wiper over ride with AC49.95
C9686C968669SWITCH - windshield wiper over ride w/o AC 64.95
C8642C864268-72SWITCH/VALVE - wiper door vacuum on firewall32.25
