1953-62 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, FUEL PUMPS, GENERATORS, HEADS, IGNITION SHIELDING, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Ignition System Arrow Ignition: Shielding - Individual Components

Ignition: Shielding - Individual Components

Diagrams:


1956-57 Spark Plug Wire Guide Diagram Thumbnail
1956-57 Spark Plug Wire Guide
(click to enlarge)

Grease Cap & Static Collector Diagram Thumbnail
Grease Cap & Static Collector
(click to enlarge)

Ignition Shield Diagram Thumbnail
Ignition Shield
(click to enlarge)

Spark Plug Wire Shields & Brackets Diagram Thumbnail
Spark Plug Wire Shields & Brackets
(click to enlarge)

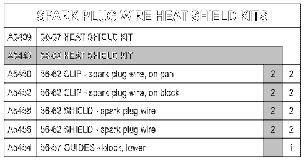

Spark Plug Wire Table Diagram Thumbnail
Spark Plug Wire Table
(click to enlarge)

Wing Nuts Diagram Thumbnail
Wing Nuts
(click to enlarge)

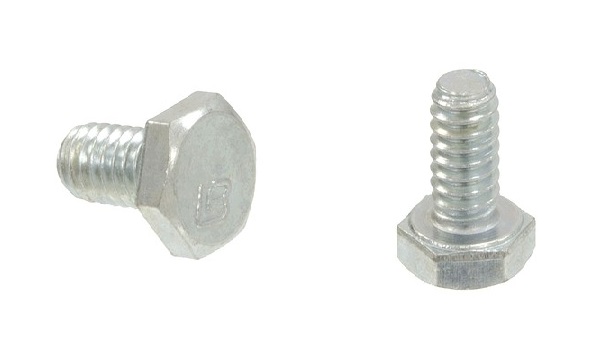

A5420A542056-61BOLT - top ignition shield hex, chrome (3 req) (ea)2.25
A0626A062662BOLT - top ignition shield hex, chrome (3 req)(ea)2.00
A5449A544957-62 BOLT SET - 4 heat shields above spark plugs 6pc9.65
A5427A542756-57BRACKET - coil, figure "8" shape122.95
A5424A542456-62BRACKET - coil, RH w/shield support, w/o FI33.85
A5428A542857-62BRACKET - coil, w/F.I.24.95
A5436A543656-62BRACKET - lower horizontal ignition shielding, LH16.35
 A544256-62BRACKET - lower ignition shields (4 req)(ea)4.35
A5422A542256-62BRACKET - top ignition shield, LH33.85
A5426A542657-62BRACKET - top ignition shield, RH, w/F.I.24.50
A5444A544456-62BRACKET SET- spark plug shields (standard steel) (4pc)19.50
A5452A545256-62CLIP/SUPPORT - spark plug wire, on block (2 req) (ea)6.25
A5450A545056-62CLIP/SUPPORT - spark plug wire, on oil pan (2 req) (ea)6.25

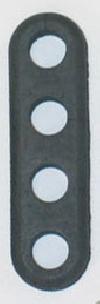

A5448A544856-62GROMMET - spark plug wires, oval (ea)3.25
A5419A541956-57GROMMET SET - spark plug "U" heat shields (8 pc)6.50
A5423A542356-62LOCK WASHER SET - ignition shielding wing nuts, (4 pc)1.00
A5451A545156-62NUT - ignition shield, "J" type (ea)1.25
A5401A540156-62SCREW & WASHER KIT - coil bracket (2 pc)2.10
A5456A545657-62SHIELD - heat, spark plug, LH front & RH rear12.00
A5458A545857-62SHIELD - heat, spark plug, RH front & LH rear12.00
A5412A541257SHIELD - ignition, top, w/F.I.  CALL
A5414A541458-60SHIELD - ignition, top, w/F.I.  CALL
A5416A541661SHIELD - ignition, top, w/F.I.  CALL
A5418A541862SHIELD - ignition, top, w/F.I.  CALL
A5406A540656-60SHIELD - ignition, top, w/o F.I.  CALL
A5408A540861SHIELD - ignition, top, w/o F.I.  CALL
A5410A541062SHIELD - ignition, top, w/o F.I.  CALL
A5430A543056-59SHIELD - ignition, vertical LH (stamped steel)47.95
A5432A543260-62SHIELD - ignition, vertical LH (stamped steel)36.25
A5429A542956-58ESHIELD - ignition, vertical RH, w/"J" nut, round lower mounting hole129.95
A5434A543458L-62SHIELD - ignition, vertical RH, w/"J" nut, oval lower mounting hole89.95
 A540956-57SHIELD KIT - heat, spark plug wire117.95
 A544358-62SHIELD KIT - heat, spark plug wire84.60
 A545353-55SHIELD KIT - ignition, 6 cyl. upper & lower, metal w/correct stress lines (as original) & brackets  CALL
 A543755SHIELD KIT - V8  CALL
 A084457-62SHIELD SET - heat, above spark plugs, (4 pc)39.95
A5438A543857-61SHIELD SET - spark plug, horizontal LH & RH, lower148.75
A5439A543962SHIELD SET - spark plug, horizontal LH & RH, lower139.95
A5454A545456-57SHIELD/GUIDE - lower spark plug wires to block, "U" shaped with grommets (pr)56.95
A0827A082756-62STATIC COLLECTOR - front wheels under grease cap (2 reg ea)28.00
A5421A542162SUPPORT - RH lower, spark plug wire w/PCV18.69
A5446A544656-62WING NUT - ignition shield (ea)2.70
