1963-67 Arrow SHIFTER, SHIFTER PARTS & LINKAGE

SHIFTER, SHIFTER PARTS & LINKAGE

Diagrams:


1963-67 4-Speed Diagram Thumbnail
1963-67 4-Speed
(click to enlarge)

1964-67 4-Speed Shifter Components Diagram Thumbnail
1964-67 4-Speed Shifter Components
(click to enlarge)

1965-67 Automatic Diagram Thumbnail
1965-67 Automatic
(click to enlarge)

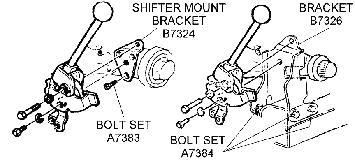

Shifter Mounts Diagram Thumbnail
Shifter Mounts
(click to enlarge)


B8756B875664-67ARM - transmission linkage, (Muncie)28.25
A7383A738364-66EBOLT SET - shifter mount plate3.30
A7384A738466L-67BOLT SET - shifter mount bracket2.95
B7353B735363-64BOLT SET - shifter mount, 1963 all, 1964 w/auto trans, 6 pc.2.70
B7351B735164-67BOLT SET - shifter mount, 4 speed, 4 pc.2.25
B1919B191963BOOT - 3 speed or automatic trans. shifter57.95
B7310B731063BOOT - 4 speed shifter44.95
B1928B192864-67BOOT - 3 & 4 speed shifter31.05
B1900B190064BOOT - powerglide automatic shifter, upper69.00
B1938B193865-67BOOT - powerglide automatic shifter, lower68.00
A7322A732263BRACKET - anti rattle spring (4 speed shifter)5.85
 B732464-66EBRACKET/PLATE - 4 speed shifter mount on transmission30.00
B7326B732666L-67BRACKET - 4 speed shifter, mount on frame crossmember29.25
B7331B733164-67BUSHING SET - split, shifter T w/4 speed, 2 pc.6.75
B7385B738565-67BUTTON - auto shifter knob push button10.05
A7302A730263-67CLEVIS & COTTER PIN KIT - shifter linkage to transmission2.50
B7354B735464-67CLEVIS - 4 speed shift rod, (1st & 2nd)10.50
A8702A870263-67CLIP - shifter rod retainer, "G" shape1.00
A7319A731963GAUGE BLOCK - 4 speed adjustment5.45
B7355B735564-67GAUGE - 4 speed shifter adjustment4.25
B7325B732564-67GROMMET - auto shifter to linkage, rubber5.75
A7310A731063HANDLE - 4 speed, w/shifter reverse lockout, w/cable, "T" shape54.30
B7328B732864-67HANDLE - 4 speed, w/shifter reverse lockout, w/rod & bushing, "T" shape32.95
A7321A732163HANDLE ASSEMBLY - 4 speed shifter, stock239.25
B7399B739963HANDLE ASSEMBLY - shifter, looks original, fits Hurst shifter body, uses stock shifter boot116.50
B7381B738164-67HANDLE ASSEMBLY - shifter, looks original, fits Hurst shifter body, uses stock shifter boot93.00
B7313B731364-67HOUSING - shifter, lower, 4 speed35.45
B7312B731264-67HOUSING - shifter, upper, 4 speed48.30
B7308B730863KNOB - shifter, all transmissions, black8.75
 B735264-67KNOB - 3 speed shifter14.00
B7322B732264-67KNOB - 4 speed shifter, (chrome)16.80
A7316A731664KNOB - automatic shifter, chrome42.45
 B739865-67KNOB - automatic shifter, black chrome, metal20.95
B7380B738065-67KNOB - automatic shifter, black plastic21.50
B7317B731764-67LEVER - 4 speed shifter, 1st & 2nd gear15.70
B7315B731564-67LEVER - 4 speed shifter, 3rd & 4th gear15.70
B7321B732164-67LEVER - 4 speed shifter, reverse lever15.70
B7318B731864-67LEVER - 4 speed shifter, reverse lockout, 5/64" thick9.00
B7319B731964-67LEVER - 4 speed shifter, reverse lockout 7/64" thick9.00
 A732863LINKAGE KIT - 3 speed shifter rods  CALL
 B735064-67LINKAGE KIT - 3 speed shifter rods50.50
 B730463LINKAGE KIT - 4 speed shifter rods, (Borg Warner)138.95
 B730663LINKAGE KIT - 4 speed shifter rods, (Muncie)137.95
B7320B732064-67LINKAGE KIT - 4 speed shifter rods, (Muncie transmission)74.75
 B736063LINKAGE KIT - auto shifter rod57.95
 B736864LINKAGE KIT - auto shifter rods57.95
B7335B733564-67MAIN SHAFT - 4 speed shifter96.45
B7336B733664-67NUT - shifter rod1.00
B1961B196164-67NUT PLATE - w/rivets, shift boot retainer under tunnel21.95
B7356B735664-67NUT SET - 4 speed shifter lever on transmission, (3 pc.)1.00
A734463PIN - shifter lever to cross pin37.35
B7314B731464-67PIN - 4 speed shifter shaft7.60
 B731164-67PIN - lockout, 4 speed reverse5.15
B1923B192364-67PLATE - 3 speed trans. shifter indicator8.25
B1955B195563PLATE - 4 speed trans. shifter indicator16.00
 B735764-67REPAIR KIT - minor, 4 speed shifter, w/knob, "T" handle & rod, bushing & spring48.75
B7359B735964-67REPAIR KIT - major, 4 speed shifter66.15
 B738964-67RETAINER - shifter lever pin, 3 or 4 speed3.55
B7330B733064-67ROD - 4 speed shifter reverse lockout6.00
 B737865-67ROD - auto shifter linkage kit33.85
B7394B739465-67SCREW SET - automatic shifter mounting, (3 pc.)3.25
B7393B739365-67SCREW SET - neutral safety switch, (pr)1.25
B7391B739165-67SCREW SET - shifter boot retainer, (11 pc.)11.00
B7309B730964-67SHAFT - 4 speed pivot7.85
B7300B730064-67SHAFT - main shifter chrome136.25
A7360A736063SHIFTER - 3 speed w/knob289.00
 B734864-67SHIFTER - 3 speed w/knob269.95
B7302B730263SHIFTER - 4 speed w/knob433.30
B7316B731664-67SHIFTER - 4 speed w/knob248.25
 B735863SHIFTER - auto w/knob311.35
 B736664SHIFTER - auto349.95
B7372B737265-67SHIFTER - auto419.95
A7320A732063SPRING - anti-rattle, 4 speed shifter7.25
B7375B737565-67SPRING - auto shifter knob push button3.05
B7332B733264-67SPRING - reverse lock-out handle, 4 speed shifter6.00
 B730365-67SWITCH - neutral safety, back up light, automatic transmission195.00
B7338B733864-67SWIVEL - 4 speed shifter, reverse, long5.75
B7337B733764-67SWIVEL - 4 speed shifter, rod, (3rd & 4th)5.95
B7323B732364-67WASHER - 4 speed shifter, pivot shaft1.00
