1953-62 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, FUEL PUMPS, GENERATORS, HEADS, IGNITION SHIELDING, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Exhaust Manifolds & Related Parts

Exhaust Manifolds & Related Parts

Diagrams:


Exhaust Heat Riser Diagram Thumbnail
Exhaust Heat Riser
(click to enlarge)

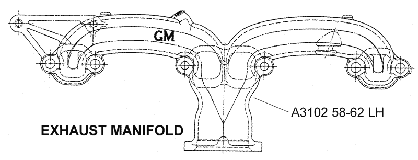

Exhaust Manifold Diagram Thumbnail
Exhaust Manifold
(click to enlarge)


A3121A312155BOLT & WASHER SET - V8 exhaust manifolds "M" HM, (24 pc)24.00
 A312755-56BOLT SET - exhaust manifolds, w/washer, "M" headmark25.95
A3120A312056-61BOLT SET - exhaust manifolds, "double circle" headmark, (12 pc).21.75
A3137A313762BOLT & STUD KIT - exhaust manifolds to heads, w/"double circle" headmark (12 pc)32.94
A3114A311457-62CHOKE TUBE - inside exhaust manifold, w/o F.I. (stainless steel)10.95
A3105A310556-62DONUT/SEAL - exhaust manifold to pipe, 2"3.50
A3107A310762DONUT/SEAL - exhaust manifold to pipe, 2.5"4.15
 G0056HOT STUFF - exhaust manifold dress15.99
 G015553-62DRESSING - "Calyx" manifold conditioner (stick)10.30
G0003G000353-62DRESSING - "Calyx" manifold conditioner, (jar)23.25
A3122A312256-62FLANGE - exhaust pipe, 2"9.45
 A312356-57FLANGE - exhaust, 3 bolt (flat type)11.45
A3134A313462FLANGE - exhaust pipe (flat type), 2.5",11.50
 A316053-57FLANGE SET - exhaust pipes to exhaust manifold, 6 cylinder, cast iron, (pr)129.00
 A313155-56FRENCH LOCK SET - exhaust manifold, OEM steel, (4 pc) 15.95
 A312557-62FRENCH LOCK SET - exhaust manifold, standard steel, (4 pc)17.60
 A314257-62FRENCH LOCK SET - exhaust manifold, stainless steel, (4 pc)13.80
A3156A315656L-62GASKET - heat riser, 2"4.95
A3176A317662GASKET - heat riser, 2.5"4.95
 A310356-62GASKET SET - exhaust manifolds to engine (not originally used by Chevrolet) they prevent exhaust leaks between exhaust manifold and heads11.95
 A312955L-56EHEAT RISER - exhaust manifold / 2 bolt exhaust manifold  CALL
A3152A315256LHEAT RISER - for 3 hole exhaust manifolds, TEMPORARILY DISCONTINUED-CALL FOR AVAILABILITY  CALL
A3128A312857-62HEAT RISER - exhaust, 2"84.37
A3130A313062HEAT RISER - exhaust, 2.5"93.15
A3118A311853-54MANIFOLD - exhaust, dual, used original  CALL
 A057455MANIFOLD - exhaust, RH, used original  CALL
 A057656EMANIFOLD - exhaust, 2 bolt, LH/RH  CALL
A3143A314356LMANIFOLD - exhaust, 3 bolt, #3731557, LH  CALL
A3144A314456LMANIFOLD - exhaust, 3 bolt, #3731558, RH  CALL
 A314856LMANIFOLD SET - exhaust, #3731558/3731557, (pr)  CALL
A3145A314557MANIFOLD - exhaust, LH, #3731975  CALL
 A315357MANIFOLD - exhaust, LH, #3733975, reconditioned original  CALL
A3147A314757MANIFOLD - exhaust, RH, #3731976, w/F.I.695.00
 A313357MANIFOLD - exhaust, RH, #3731976, W/F.I, original  CALL
A3146A314657MANIFOLD - exhaust, RH, #3731976, w/o F.I.  CALL
 A315457MANIFOLD - exhaust, RH, #3733976, reconditioned original  CALL
A3102A310258-62MANIFOLD - exhaust, LH, #3749965, 2"  CALL
 A310158-62MANIFOLD - exhaust, LH, #3749965, 2", reconditioned original,  CALL
 A315558-62MANIFOLD - exhaust, RH, #3750556, 2", w/o F.I., reconditioned Original  CALL
A3104A310458-62MANIFOLD - exhaust, RH, #3750556, 2", w/choke545.00
A3106A310658-61MANIFOLD - exhaust, RH, #3750556, 2", w/F.I.  CALL
 A313858-61MANIFOLD - exhaust RH w/FI #3750556, 2", original  CALL
A3108A310862MANIFOLD - exhaust, LH, #3797901, 2.5",  CALL
A3111A311162MANIFOLD - exhaust, LH, 2.5", #3797901, used, restored  CALL
A3110A311062MANIFOLD - exhaust, RH, 2.5", #3797902  CALL
 A311362MANIFOLD - exhaust, RH, 2.5", #3797902, used, restored  CALL
A3112A311262MANIFOLD - exhaust, RH, 2.5", #3797902, w/FI, w/o choke tube hole  CALL
 A313962MANIFOLD - exhaust, RH 2.5" #3797902 w/FI, w/o choke tube hole original  CALL
A3109A310962MANIFOLD - exhaust, RH, 2.5", w/o #3797902  CALL
 A314956-62NUT SET - exhaust manifold studs, brass (6 pc)5.95
A3141A314156-62NUT SET - exhaust manifold studs-correct "Top Lock" type9.95
 A313556SHIELD SET - heat, 3 hole exhaust manifold, (pr)90.00
A3117A311753-62SLEEVE - exhaust donut, alignment, 2"10.65
A3119A311962SLEEVE - exhaust donut, alignment, 2.5"9.85
A3126A312658-62SPACER - replaces 2" heat riser valve56.00
A3132A313262SPACER - replaces 2.5" heat riser valve, (all w/F.I.)67.00
 A313656-62STUD & NUT KIT - exhaust manifold to exhaust pipe, (12 pc)22.95
A3140A314063-67STUD & NUT KIT - exhaust manifold to exhaust pipes, stainless steel, (12 pc)39.60
 A376462STUD - lower clean air tube to exhaust manifold8.95
 A316153-55WASHER SET - exhaust & intake manifold retaining, 4 large, 2 small, all w/6 cylinder, (6 pc)150.00
A3116A311657-62WASHER SET - exhaust manifold bolts, (8 pc)12.19
