1953-62 Arrow HOOD Arrow Latches, Locks & Hinge Supports

Latches, Locks & Hinge Supports

Diagrams:


1953-57 Hood Parts Diagram Thumbnail
1953-57 Hood Parts
(click to enlarge)

1958-59 Hood Latch Diagram Thumbnail
1958-59 Hood Latch
(click to enlarge)

1960-62 Hood Latch Diagram Thumbnail
1960-62 Hood Latch
(click to enlarge)

Hood Lock Assembly Diagram Thumbnail
Hood Lock Assembly
(click to enlarge)

Hood Support Hinge Diagram Thumbnail
Hood Support Hinge
(click to enlarge)

Hood Support Reinforcement Diagram Thumbnail
Hood Support Reinforcement
(click to enlarge)


A5206A520653-57BLOCK KIT - hood stabilizer, w/screws (pr) (53-55 replacement)28.50
A5225A522553-57BOLT KIT - hood support, 8pc6.15
A5237A523756-57BOLT KIT - hood support / 4 1/4x20x9/16 bolts & 4 lock washers, 8 pc6.67
A5216A521653-58BOLT KIT - male hood lock attaching, 8 "C" headmark grade 5 bolts & 8 split & flat washers, 24 pc7.65
 A527058-59BOLT & BUMPER KIT - hood adjusting, 2 bolts, 2 bumpers w/nuts9.35
 A527160-62BOLT & BUMPER KIT - hood adjusting (2 bolts & 2 bumpers)9.35
A5250A525053-57BOLT SET - female hood lock, "TR" headmark (8 req.) (2 pc)8.75
A5200A520053-57BOLT SET - hood hinge to hood "WB-1C" headmark (4 pc)10.95
 A521358-62BOLT SET - hood hinge to hood, C headmark (10 pc)30.49
 A522253-62BOLT SET - hood locks, "TR" headmark (used for 53-58E male & 58-62 female hood locks) (12 pc)13.30
 A524258-62BOLT SET - hood locks, female, "TR" headmark (pr)6.75
A5247A524758-62BOLT SET - male hood locks, indented hex w/"C" headmark (58 only w/5/16x18 holes in hood)(6 pc)20.65
A5210A521053-62BUMPER SET - hood stop bolt adjuster, rubber (pr) 12.95
A5208A520856-57CABLE ASSEMBLY - hood latch release, w/bracket226.10
A5234A523458-62CABLE ASSEMBLY - hood release, w/handle & nut146.00
A5257A525753-57CLIP & SCREW KIT- hood release cable to firewall , 12pc24.75
A4716A471658-62GROMMET SET - hood release cable (pr) (A4716 comes without a hole. Cable is pushed through it.)10.45
A5219A521953-57HINGE SET - hood (pr)353.60
A5233A523358-62HINGE - hood, LH27.25
A5232A523258-62HINGE - hood, RH27.25

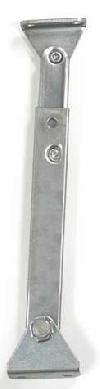

A5201A520153-57HOOD SUPPORT 95.82
A5245A524558EHOOD SUPPORT - mounted, RH79.75
A5230A523058L-62HOOD SUPPORT - mounted, LH81.25
A5251A525153-57LEVER - female hood lock, LH52.82
A5252A525253-57LEVER - female hood lock, RH61.57
A5285A528558ELEVER - female hood lock, short, LH or RH, (used approximately thru 12/1/57)21.70
A5221A522158L-59LEVER - female hood lock, LH or RH48.39
A5281A528153-57LOCK ASSEMBLY - female, hood, RH (on firewall)150.24
A5280A528053-57LOCK ASSEMBLY - female, hood, LH (on firewall)150.24
A5224A522458-59LOCK ASSEMBLY - female, hood (2 req. ea)112.82
 A524860-62LOCK ASSEMBLY - female, hood, (on firewall), (restored, original) LH175.00
A5249A524960-62LOCK ASSEMBLY SET - female, hood, (on firewall), LH & RH159.95
A5220A522058-59LOCK ASSEMBLY - male, hood (2 req. ea.)123.00
A5223A522360-62LOCK ASSEMBLY - male, hood (2 req. ea)124.44
A5203A520353-57LOCK SET - on latch hood, male (pr)109.95
A5236A523658-62NUT & WASHER - hood release cable4.72
 A527660-62NUT PLATE - female hood lock on firewall/facing hood12.24
B5207B520753-62PIN - hood support, prevents hood from closing in the wind15.65
A5253A525353-57PIN - hood lock / male, each26.45
A5272A527258-59PIN - hood lock / male, each17.45
A5238A523859L-62PIN - hood lock / male, each16.35
A5202A520253-57POP-UP SET - hood, front (pr)100.70
A5256A525660-62REINFORCEMENT - hood support (on inner fender)40.85
A2500A250053-57REPAIR KIT - female hood lock (spring, pin & clip)(does one lock)20.85
A2501A250158-59REPAIR KIT - female hood lock (spring, pin & clip)(does one lock)20.57
A5217A521753-62REPAIR KIT - hood support, semi-tubular rivet & spring washer12.00
A8286A828660-62RETAINER & SCREW KIT - hood release cable on female hood catch (8pc)14.95
A5207A520758-59RETAINER & SCREW KIT - hood release cable to female latch (4pc)10.50
A5209A520953-57RETAINER/CLIP - hood release cable on firewall (4 req., ea)4.95
A5227A522753-57RETAINER/CLIP - hood release cable, on firewall (4 pc)(does not Include Part A5665)14.95
A5214A521453-62RETAINER/STOP/GUIDE - hood release cable, w/clutch head screw (pr)9.85
A5218A521853-62SCREW SET - cable guide, clutch head (pr)1.15
A5215A521556-57SCREW SET - hood stabilizer blocks (4 pc)2.65
A5231A523158-62SCREW SET - hood support, clutch head (8 pc)4.25
A5707A570759-60SEAL/AIR DAM - hood, front (after 1959 serial #3500)33.80
A5118A511860-62SEAT - male hood lock spring9.89
 A522658-59SPRING - female hood lock (ea)11.75
A5235A523553-57SPRING - hood pop up, ea18.40
A5241A524160-62SPRING - male hood lock (ea)8.25
A5204A520453-57SPRING SET - female hood lock (pr)13.00
A5240A524060-62SPRING SET - female hood lock tension (pr)15.00
 A527560-62STUD PLATE - female hood lock on firewall/facing radiator15.17
A5228A522858-59SUPPORT - hood cable, w/clamp and screw, near female latch, LH35.20
A5229A522958-59SUPPORT - hood cable, w/clamp and screw, near female latch, RH35.20
