1953-62 Arrow INTERIOR Arrow Door Panel Trim & Accessories

Door Panel Trim & Accessories

Diagrams:


1956-57 Door Panel Trim Assembly Diagram Thumbnail
1956-57 Door Panel Trim Assembly
(click to enlarge)

1962 Door Panel Diagram Thumbnail
1962 Door Panel
(click to enlarge)

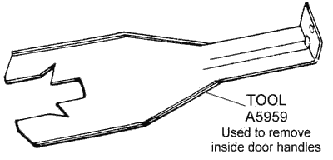

Tool Diagram Thumbnail
Tool
(click to enlarge)


A1920A192053ASHTRAY - in door panel38.95
A1942A194254-55ASHTRAY - in door panel74.95
A5904A590453-55BEZEL - ashtray bezel, in door panel20.10
A5900A590053-55BEZEL SET - door open control, pr64.35
 A594658-61BEZEL SET - door open, on door panel, pr26.85
A5948A594862BEZEL SET - door open, on door panel, pr19.95
A5901A590156-57BRACKET - door pull cup support on arm rest39.10
A5995A599558-61BRACKET KIT - door panel reflectors15.10
A5996A599662BRACKET KIT - door panel reflectors15.10
A5926A592656-62CLIP SET - window crank/lock knob retainer, 4pc2.75
A5736A573658COVER SET - upper door panel covers, pebal grain, LH/RH62.95 Specify Color
 A597056-57CUP - door pull (2 req., ea)16.50
A5918A591856-62HANDLE - window crank17.45
A5914A591456-62KNOB - door lock, inside20.85
A5910A591053-62KNOB SET - door release, white (pr)9.95
A5942A594258-61REFLECTOR SET - door panels, w/brackets & nuts50.00
A5944A594462REFLECTOR SET - door panels, w/brackets & nuts82.15
A5988A598853-62REPAIR KIT - door panel mounting (repairs oversize door panel screw holes in door)39.95
A0799A079956-58RETAINER SET - front door upper rail (pr)16.25
A5690A569056-57SCREW SET - door panel mounting (24 pc)16.35
A5691A569158-62SCREW SET - door panel mounting, w/finish washers (26 pc)9.25
A2644A264456-62SEAL SET - door panel regulator-window crank, foam (behind door panel)(2pc)6.59
A5619A561956-57SHEET METAL KIT- lower door & kick panel, waffle design (pr)249.00
 A562358SHEET METAL KIT- door & kick panel inserts, pre-punched414.00
 A562659SHEET METAL KIT- door & kick panel inserts, pre-punched414.00
 A562860SHEET METAL KIT- door & kick panels & kick panel inserts, pre-punched414.00
 A562961SHEET METAL KIT - door & kick panel inserts, pre-punched438.00
A2634A263460-62SHIELD SET - door open mechanism protector (pr)6.85
 A592256-62SPACER/BEARING - window crank, plastic, (ea)4.95
A2605A260556-62SPRING SET - window crank spacer (pr)9.35
 A562459-62SUPPORT SET - upper door panel, metal (pr)59.00
A5959A595956-62TOOL - window crank and door lock knob removal6.75
A5693A569356-57TRIM PLATES - metal (unpainted) upper middle door panel (door knob passes thru) (pr)201.75
A5906A590656-57TRIM SET - door panel, lower, stainless moldings (6 pc)215.00
A5938A593858-61TRIM SET - door panels, "S" type, around aluminum trim (does two door panels), (12 pc)305.00
A5940A594062TRIM SET - door panel, stainless (does two door panels), (6 pc)224.95
A5692A569258-62WASHER KIT - door panel, flush type (8 pc)8.75
 A592256-62WASHER/SHIELD SET - interior door lock knob, plastic (pr)4.95
