1953-62 Arrow TRANSMISSION Arrow 3 Speed, Borg Warner T10 & Powerglide

3 Speed, Borg Warner T10 & Powerglide

Diagrams:


1956-52 Trans Mount Diagram Thumbnail
1956-52 Trans Mount
(click to enlarge)

1956-62 Auto Transmission Diagram Thumbnail
1956-62 Auto Transmission
(click to enlarge)

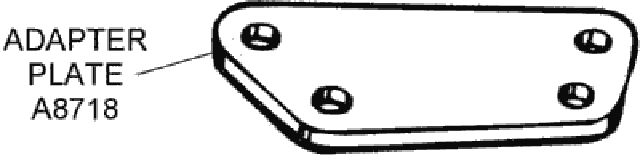

Adapter Plate Diagram Thumbnail
Adapter Plate
(click to enlarge)

Borg Warner Transmission Yoke Diagram Thumbnail
Borg Warner Transmission Yoke
(click to enlarge)

Switch Rod and Related Diagram Thumbnail
Switch Rod and Related
(click to enlarge)

Transmission Assembly Diagram Thumbnail
Transmission Assembly
(click to enlarge)


A8707A870756-62BOLT SET - flywheel to crankshaft, grade 8, (6 pc)10.95
A8719A871953-62BOLT SET - transmission crossmember to frame8.20
A8715A871556-62BOLT SET - transmission cushion mount retainer to crossmember9.45
A8742A874256-61BOLT SET - transmission mount bracket to transmission, "AP" head Mark, (2pc)6.15
A8790A879056-62BOLT SET - transmission mount, "TR" headmark (2 pc)8.25
A8713A871353-62BOLT SET - transmission mount, "UR" headmark (2 pc)9.27
A8731A873156-62BOLT SET - transmission to bell housing, "TR" headmark, w/nuts & washers (4 pc)9.75
A8710A871056-61BRACKET - 3 speed transmission mount22.50
A8712A871256-62BRACKET - 4 speed transmission mount33.60
A8714A871455-61BRACKET - automatic transmission mount124.95
 A899053-54BRAKE BAND - POWERGLIDE TRANSMISSiON, reconditioned179.95
 A181456-62BUSHING - transmission housing slip yoke, T104.95
A8702A870256-62CLIP - shifter/clutch rod, "G" type (ea)1.85
A8741A874156-62CLIP SET/HAIRPIN TYPE - neutral safety switch/powerglide (4pc)1.95
 A877957-62CONVERSION - Borg Warner T-10 to Super T-10 transmission internals, prevents breakage in high stress situations, add cost to A8773 to A8778 transmissions350.00
 A876357-62COUNTER SHAFT - Borg Warner T-10 transmission17.95
A8724A872453-62CROSSMEMBER - transmission mount149.95
A1403A140356-60EXTENSION - speedometer drive gear, in transmission7.00
 A871162FILTER & GASKET KIT - powerglide transmission7.95
A3714A371455-62FITTING - vacuum, for auto transmission, (on the carb)21.55
 A874953-55FLYWHEEL - Powerglide transmission, used original 179.95
 C884555-62GASKET SET - 3 speed transmission26.95
 C884757-62GASKET SET - Borg Warner T-10 transmission37.95
 A868755-60GEAR - speedo drive (18 tooth, brown) 3:08 RATIO14.95
 A868356-60GEAR - speedo drive (20 tooth, blue) 3:36 RATIO 14.95
 A868255-60GEAR - speedo drive (21 tooth, red) 3:55 RATIO14.95
A8684A868456-60GEAR - speedo drive (22 tooth, green) 3:70 RATIO 14.95
 A868555-60GEAR - speedo drive (24 tooth, yellow) 4:11 RATIO14.95
 A868655-60GEAR - speedo drive (25 tooth, white) 4:56 RATIO14.95
A8791A879161-62GEAR - speedo drive (18 tooth, brown) 3:08 RATIO30.35
A8792A879261-62GEAR - speedo drive (20 tooth, blue) 3:36 RATIO30.35
A8793A879361-62GEAR - speedo drive (21 tooth, red) 3:55 RATIO30.35
A8794A879461-62GEAR - speedo drive (22 tooth, green) 3:70 RATIO30.35
A8795A879561-62GEAR - speedo drive (24 tooth, yellow) 4:11 RATIO30.35
 A877157-62GEAR - Speedo in transmission (3:08-3:55) (reconditioned)57.85
 A877057-62GEAR - Speedo in transmission (4:56-4:88) (reconditioned)76.95
 A875561-62HOSE - modulator3.65
 A870055-57LINKAGE KIT - 1x4, powerglide kick-down224.95
 A870956-57LINKAGE KIT - 2x4, powerglide kick-down324.95
A8720A872053-62MOUNT - transmission, rubber49.95
A8718A871862PLATE - transmission mount adapter, 3 & 4 speed23.90
 A878053-54REBUILD KIT - Powerglide transmission289.95
 A878455REBUILD KIT - powerglide transmission314.95
 A878556REBUILD KIT - powerglide transmission289.95
 A870157REBUILD KIT - Powerglide transmission299.95
 A878258-61REBUILD KIT - Powerglide transmission299.95
 A878362REBUILD KIT - Powerglide transmission, w/aluminum case299.95
 A878956-62REBUILD KIT - Saginaw 3 speed transmission, gaskets, seals, bearings & small parts kit224.95
A8725A872557-62REBUILD KIT - T10 transmission (new seals, bearings, counter shaft, syncros, gaskets, shims & small parts)239.95
 A865356-62RELAY - powerglide transmission, 1116904, restored  CALL
A8797A879756-62RETAINER & BOLT - speedo gear fitting11.65
 A872253-62RETAINER - transmission mount39.95
A8736A873654-60ROD/LINK - neutral safety switch, powerglide transmission32.95
 A181656-62SEAL - transmission housing slip yoke, T1014.95
A8735A873553-60SHIELD - neutral safety switch56.95
 A872957-62SMALL PARTS KIT - Borg Warner T-10 / needle bearings, shims, snap rings (included in part A8725)44.95
A8761A876153-54SWITCH - neutral safety, powerglide transmission124.95
A8767A876755-57SWITCH - neutral safety, powerglide transmission89.95
A8732A873258-60SWITCH - neutral safety, powerglide transmission94.95
 A876257-62SYNCHRONIZER RING KIT - Borg Warner T-10 trans. (4pc)23.95
 A871753-54TAIL SHAFT HOUSING - automatic tranmission - conversion / exchange   CALL
A8716A871655-61TAIL SHAFT HOUSING - automatic transmission 695.00
 A872762TAIL SHAFT HOUSING - automatic transmission, 3 hole shifter mount  CALL
 A085257-62TRANSMISSION - Borg Warner T-10 replacement, restored, service dated1995.00
 A877357TRANSMISSION - Borg Warner T-10, dated, completely restored & correct, specify close or wide ratio  CALL
 A877458TRANSMISSION - Borg Warner T-10, dated, completely restored & correct, specify close or wide ratio  CALL
 A877559TRANSMISSION - Borg Warner T-10, dated, completely restored & correct, specify close or wide ratio  CALL
 A877660TRANSMISSION - Borg Warner T-10, dated, completely restored & correct, specify close or wide ratio  CALL
 A877761TRANSMISSION - Borg Warner T-10, dated, completely restored & correct, specify close or wide ratio [CAST IRON CASES USED THRU NOV 1960] EXCEPTIONS MAY EXIST!  CALL
 A877862TRANSMISSION - Borg Warner T-10, dated, completely restored & correct, specify close or wide ratio  CALL
A8768A876855-61TUBE - dipstick, Powerglide transmission37.45
A8760A876062TUBE - dipstick, Powerglide transmission71.75
 B870962UNDER PAN - auto trans., flywheel/converter inspection 69.95
S7355S735558-62VENT - metal / tail shaft - 3 speed19.65
A8733A873356-62YOKE - drive shaft, inserts into Borg Warner & powerglide tail housing, 16 spline135.50
