1963-67 Arrow AIR CONDITIONING Arrow Air Conditioning Ducts & Cables

Air Conditioning Ducts & Cables

Diagrams:

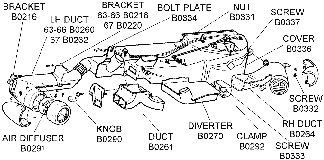

Ducts Inside Diagram Thumbnail
Ducts Inside
(click to enlarge)

Temperature Control Diagram Thumbnail
Temperature Control
(click to enlarge)


B0334B033463-67BOLT PLATE - RH AC duct, w/nut & rivets13.19
B0484B048463-67BRACKET - cable, all with A/C18.69
B0216B021663-67BRACKET - duct, LH, (kick panel)35.00
B0218B021863-66BRACKET - duct, LH, (pedal brace to duct)47.29
B0220B022067BRACKET - duct, LH, (pedal brace to duct)44.95
B0533B053363-65 CABLE - A/C blower switch/air inlet169.00
B0529B052966-67CABLE - A/C blower switch/ air inlet169.00
B0483B048363-67CABLE - A/C defroster, lower RH knob (repl.)99.00
B0525B052563-67CABLE - A/C temperature, upper RH knob (repl.)99.00
B0497B049763-67CABLE - A/C upper LH knob (repl.)99.00
B0292B029263-67CLAMP W / SCREW- air conditioning air duct, RH49.49
B0335B033563-67CLIP SET - center dash duct deflector, (2 pc.)2.75
B0336B033663-67COVER - plenum44.00
B0260B026063-66DUCT / AIR CONDITIONING - w/metal chrome air deflector, flap & knob - LH / identical to original275.00
B0262B026267DUCT / AIR CONDITIONING - w/metal chrome air deflector, flap & knob - LH / identical to original275.00
B0264B026463-67DUCT / AIR CONDITIONING - w/metal chrome air deflector, flap & knob - RH / identical to original275.00
B5189B518963-67DUCT - center "Y" shaped at floor, console209.48
B0346B034663-67DUCT - defroster, upper99.00
 B063963-67DUCT - fresh air / RH inside fender, metal, original  CALL
B0290B029063-67KNOB - air control on duct, (original)(used)24.95
B0331B033163-67NUT SET - air conditioning heater box, (9 pc.)6.59
B0333B033363-67SCREW - AC duct clamp1.00
B0332B033263-67SCREW & WASHER KIT - air conditioning duct installation, (8 pc.)2.65
B0337B033763-67SCREW SET - plenum cover, (12 pc.)12.09
B0305B030563-67SEAL SET - AC duct ball, felt, (4 pc.)(does 2 balls)7.69
