1963-67 Arrow BRAKE SYSTEM Arrow Drum & Related / 1963-65

Drum & Related / 1963-65

Diagrams:


Typical Rear Brake Diagram Thumbnail
Typical Rear Brake
(click to enlarge)

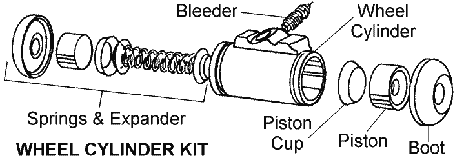

Wheel Cylinder Kit Diagram Thumbnail
Wheel Cylinder Kit
(click to enlarge)


 B103563-65ADJUSTER - brake, star wheel, LH, (2 req.)(ea)9.25
 B103663-65ADJUSTER - brake, star wheel, RH, (2 req.)(ea)9.25
 B104563-65BACKING PLATE - front, LH, w/drum brakes, (recond.)  CALL
 B112363-65BACKING PLATE - front, RH, w/drum brakes, (recond.)  CALL
 B107463-65BACKING PLATE - rear, w/drum brakes, LH, (recond.)  CALL
 B108963-65BACKING PLATE - rear, w/drum brakes, RH, (recond.)  CALL
 B130563-65CONVERSION KIT - drum to disc brake, front, kit consists of *New Bearings *Seals and Races *Backing Plates *New Rotors *Reconditioned Spindles *Caliper Brackets *Tie Rod Supports *New Rubber Hoses *Brake Pads *(2) Calipers/rebuilt, does both sides1325.00
 B130963-65CONVERSION KIT - drum to disc brake, rear, •Rebuilt Bearing Assembly (Bearing, Races & Seals), New Spindle, Caliper Mounting Bracket, New Stainless Steel Hardware Kit, New GM Style Shoes, New Backing Plates, New Rotors and T-Arms, Brake Pads, Hoses and Calipers, does both sides 2346.00
 A103163-65COVER SET - brake shoe adjusting holes (4 pc) 5.95
 B102963-65DRUM - brake, front69.00
A1027A102763-65DRUM - brake, rear79.95
B1000B100063-65FAN KIT - Z06, heavy duty, brakes, (4 pc.)349.95
 B109463-65HARDWARE SUPER KIT - self adjuster system, , star wheel, Springs plates & retainers, (does one wheel) LH15.50
 B109563-65HARDWARE SUPER KIT - self adjuster system, , star wheel, Springs plates & retainers, (does one wheel) RH15.50
 S836663-65HUB - brake drum, front, reconditioned (ea)95.00
 B103263-65KIT - brake spring & hold down, front14.00
 B103363-65KIT - brake spring & hold down, rear14.00
 A104163-65PIN - wheel cylinder, (8 req. per car)(2 per wheel cylinder)(ea)7.30
A8310A831063-65PLIERS - brake spring installation/removal16.95
 A102863-65REBUILD KIT - front wheel cylinder, 1 3/16" bore12.95
 A102263-65REBUILD KIT - rear wheel cylinder, 1" bore9.95
A0567A056763-65RETAINER - Brake shoes (top/center) (ea)10.75
 A101763-65SCREW - wheel cylinder bleeder, replacement (1-11/16"x3/8" hex head)(repl.)(ea)3.65
A1078A107863-65SCREW SET - wheel cylinder bleeder, original design, w/3/8-24 threads, (4 pc)39.95
S8052S805263-65SEAL - front wheel bearing7.50
 B103063-65SHOE SET - front brakes, (4 pc.)46.80
 A103363-65SHOE SET - rear brakes, (4 pc.)39.95
A1029A102963-65SPRING - around brake drum, (coil type)(ea)14.50
 A1029K63-65 SPRING KIT - around brake drums in groove/4pc56.95
 A105263-65SPRING SET - brake shoe spreader bar, (1 set required per car)4.50
 A100163-65STUD/LUG - on brake drum, wheel mounting, (1- 5/8" OL)  CALL
A8305A830563-65TOOL (SPOON) - brake adjusting9.35
A8321A832163-65TOOL - brake shoe hold-down spring compressing, removal & installation11.95
 B101563-65WHEEL CYLINDER - left front27.60
 B101663-65WHEEL CYLINDER - right front27.60
A1019A101963-65WHEEL CYLINDER - left rear, (1 1/8" bore)36.75
A1020A102063-65WHEEL CYLINDER - right rear, (1 1/8" bore)36.75
 A830963-65WRENCH - brake bleeder16.50
