1963-67 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, EXHAUST MANIFOLDS, FUEL PUMPS, HEADS, IGNITION SHIELDING, INTAKE MANIFOLDS, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Alternator, Voltage Regulators, Pullies, Brackets & Related Arrow Alternator Brackets, Braces & Mounting Hardware - 327

Alternator Brackets, Braces & Mounting Hardware - 327

Diagrams:


1963-65 327 Alternator Area Diagram Thumbnail
1963-65 327 Alternator Area
(click to enlarge)

1966-67 327 Alternator Mount Diagram Thumbnail
1966-67 327 Alternator Mount
(click to enlarge)

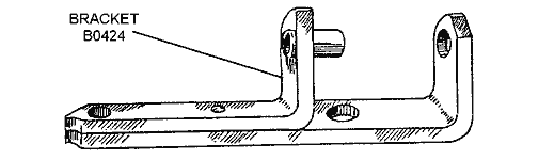

Bracket Diagram Thumbnail
Bracket
(click to enlarge)


B0451B045165-67BOLT - alternator pivot, "TR" headmark8.25
B0450B045063-65BOLT KIT - alternator bracket to exhaust manifold all except w/AC, "WB" headmark, (pr)6.65
B0415B041563BOLT KIT - alternator bracket to exhaust manifold, all w/AC8.79
 B049063-65BOLT KIT - alternator pivot, "TR" headmark7.85
 B045664-67BOLT KIT - 327 alternator bracket mounting, 64/5 w/ac 66/ all 3275.65
B0452B045266-67BOLT KIT - alternator pivot, "TR" headmark5.45
B0453B045364-65BRACE - alternator adjusting, 250/300hp, w/AC, w/bolt kit43.99
B0432B043266-67BRACE - alternator adjusting, 64-65 w/sp. hi-perf., w/AC, 66-67 all36.75
B0547B054763BRACE - alternator adjusting, RH w/o AC43.99
B0401B040163BRACE - alternator adjusting, w/AC, LH38.95
B0428B042864-65BRACE - alternator adjusting, w/o AC w/special washers "WB" headmark bolt, (63 is replacement for all w/o AC) RH34.60
 B040363BRACKET - alternator support to exhaust manifold, LH with AC76.99
B0426B042664-67BRACKET - alternator support, all w/sp. hi-perf. & AC, all 66-67 w/327, LH33.95
B0424B042463-65BRACKET - alternator support to exhaust manifold, RH, w/o AC63.95
A0445A044563BRACKET - to mount alternator on left hand side56.00
B2889B288963L-67SCREW & NUT KIT - screw/nut, voltage regulator mounting10.05
B0480B048063-67SLEEVE - alternator brace4.65
