1963-67 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, EXHAUST MANIFOLDS, FUEL PUMPS, HEADS, IGNITION SHIELDING, INTAKE MANIFOLDS, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Blocks, Rebuilding Components & Related Arrow Block and Engine Rebuilding Components - 396/427 Engine

Block and Engine Rebuilding Components - 396/427 Engine

Diagrams:

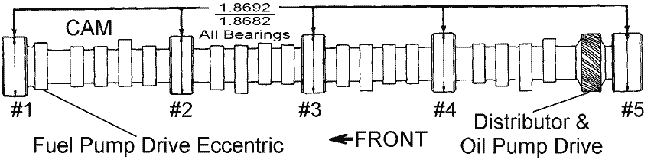

Cam Diagram Thumbnail
Cam
(click to enlarge)


B6504B650465-67BAFFLE - oil pan, 396/42722.00
 B299665-67BEARING SET - cam, specify size  CALL
 B294865-67BEARING SET - cam 396/427/454  CALL
 B299565-67BEARING SET - rods, specify size, (16 pc.)48.30
 G5102BELT - dressing, Permatex, extends belt life, 16 oz. can3.95
A6513A651365-67BOLT - oil pump to block3.95
 B287765-67CAM - 396 OR 427/425hp  CALL
 B888866-67CAM - 427/390hp  CALL
 B003166-67CHAIN & GEAR SET - engine timing, hi perf38.95
 B299466-67CHAIN & GEAR SET - engine timing, standard38.95
 B291965-67CRANK - 396/427, steel, (used)(guaranteed)  CALL
 G5101FORM-A-GASKET - Permatex no. 2 sealant, non-hardening sealant for use w/cut gaskets, 1.5 oz. tube12.95
 G5100FORM-A-GASKET - Permatex no.1 sealant, hard setting sealant for rigid materials and flanges, 1.5 oz. tube12.95
 B287865-67FREEZE PLUG SET - (8 pc.)7.50
 B287965-67GASKET SET - engine, 396/42795.25
G5107G5107GREASE - white lithium, all purpose, anti-moisture,16 oz. aerosol 5.95
 A281566-67LIFTER SET - hydraulic, 390hp, 16pc  CALL
 A282165-67LIFTER SET - solid, 425/435hp, 16pc  CALL
 G5108LUBRICANT - anti-seize, Permatex, use during assembly to prevent corrosion seizing, 1 oz. tube3.60
A2847A284763-67PICK UP & SCREEN - oil (in oil pan)  CALL
 B288165-67PUMP - oil, 396/427/454, hi-pressure  CALL
 B288565-67PUSH ROD SET - 396/427 long & short, 16pc  CALL
 B299865-67RING SET - 8 pistons, chrome molly  CALL
 B299765-67RING SET - 8 pistons, standard, cast  CALL
 B002265-67ROCKER ARM - Hi - perf (ea)10.00
 B299265-67ROCKER ARM - kit, does 1 head, w/balls & nuts, (24 pc.)  CALL
 B002165-67ROCKER ARM SET- arm w/ball & nut  CALL
 A282063-67ROD - oil pump drive14.00
 G5106SEALANT - blue silicone, Permatex, makes reliable formed-in-place gaskets, 3 oz. tube5.25
 G5105SEALANT - threadlocker/blue, Permatex, seals and resists pressure in fittings, general purpose, .35 oz. tube4.60
 B002666-67SHAFT - oil pump, w/Hi-perf16.95
 B002566-67SHAFT - oil pump, w/o Hi-perf16.95
 G5104SILICONE - hi-temp RTV, Permatex, sensor safe RTV gasket, 3 oz. tube5.40
 B286865-67SPRING SET - valves, 396/427/454-435hp, Hi-perf, (16 pc.)137.85
 B002465-67STUD - rocker arm, 396/4275.40
 B299365-67STUD - rocker arm, in head2.50
B2860B286065-67STUD/BOLT - engine main cap retaining, w/windage tray, 396 & 427 (4 req.) (ea)24.45
 G5109TEFLON TAPE - Loctite PST, liquid, lubes, locks & seals pipe threads, temp. to 400 degrees, 50 ml. tube10.50
 G5111THREADLOCK - Loctite 242, blue, medium strength for bolts & nuts up to 3/4", 6 mi. tube5.65
 G5110THREADLOCK - Loctite 271, red, high strength for bolts & nuts up to 1", 6 mi. tube6.40
B0034B003465-67VALVE STEM KEEPER SET - All 396/427 engines 32pc27.95
