1963-67 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, EXHAUST MANIFOLDS, FUEL PUMPS, HEADS, IGNITION SHIELDING, INTAKE MANIFOLDS, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Exhaust Manifolds & Related Arrow Exhaust Manifolds & Related: 327

Exhaust Manifolds & Related: 327

Diagrams:


Exhaust Heat Riser Diagram Thumbnail
Exhaust Heat Riser
(click to enlarge)

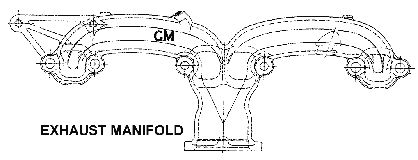

Exhaust Manifold Diagram Thumbnail
Exhaust Manifold
(click to enlarge)


A3137A313763-67BOLT & STUD KIT - all 63 & 63-65 w/FI exhaust manifold32.94
B3101B310164-67BOLT & STUD KIT - exhaust manifold 327 w/AC36.29
A3120A312063-67BOLT SET - 327 exhaust manifolds, "double circle" hm, (12 pc.)21.75
B3135B313564-65BOLT SET - F.I. exhaust manifold to head31.89
A3114A311463-65CHOKE TUBE - inside exhaust manifold, all w/o FI, stainless steel10.95
 A315763-67CLAMP - exhaust, 2 1/2", heavy duty, (ea)2.70
 A315863-67CLAMP - exhaust, 2", (ea)8.10
A3107A310763-67DONUT/SEAL - 2 1/2" exhaust manifold to pipe4.15
A3105A310563-67DONUT/SEAL - 2" exhaust manifold to pipe3.50
G0003G000363-67DRESSING - Calyx manifold conditioner, jar23.25
 G0056HOT STUFF - exhaust manifold dress15.99
 G0056HOT STUFF - exhaust manifold dress15.99
 G015563-67DRESSING - Calyx manifold conditioner, touch-up tube10.30
 B316166-67EXTENSION TUBE - injector pipe in exhaust man., 327, (8 req.)(ea.)21.80
A3134A313463FLANGE - 2 1/2", exhaust pipe, (flat type)11.50
A3122A312263-67FLANGE - 2" exhaust pipe9.45
 A314263FRENCH LOCK SET - exhaust manifold, (stainless steel)(4 pc.)13.80
B3137B313764-65FRENCH LOCK SET - exhaust manifold, (stainless steel)(4 pc.)16.95
B3138B313866-67FRENCH LOCK SET - exhaust manifold, (stainless steel)(4 pc.)27.48
A3156A315663-67GASKET - heat riser, 2"4.95
A3176A317663-67GASKET - heat riser, 2-1/2 "4.95
 A310363-67GASKET SET - exhaust manifolds to engine (not originally used from factory)11.95
A3128A312863-67HEAT RISER VALVE - 2" exhaust84.37
A3130A313063-67HEAT RISER VALVE - 2 1/2" exhaust93.15
A3102A310263MANIFOLD - exhaust, LH, 2" 250hp/300hp, #3749965  CALL
A3108A310863MANIFOLD - exhaust, LH, 2 1/2", 300/340hp, MT #3797901  CALL
A3111A311163MANIFOLD - exhaust, LH 2 1/2", 327/360hp #3797901 w/o choke hole   CALL
 B312063-65MANIFOLD - exhaust, LH 2 1/2" all w/FI/MT #3797942, has both 902 & 942 cast on the side & choke hole  CALL
 B311465MANIFOLD - exhaust, LH, 2" 250/300hp, MT139.95
B3106B310664-65MANIFOLD - exhaust, LH, 2 1/2" 327 300/365hp, #3846563  CALL
B3118B311866-67MANIFOLD - exhaust, LH, 2" 300/350hp w/o A.I.R #3846559  CALL
 B316066-67MANIFOLD - exhaust, RH, 2" 300/350hp w/ A.I.R. holes, w/plugs #3872778  CALL
A3104A310463-65MANIFOLD - exhaust, RH, 2", 250/300hp, AT, #3750556 w/choke545.00
A3110A311063-65MANIFOLD - exhaust, RH 2 1/2" all w/FI #3797942, has both 902 & 942 cast on the side, no choke tube  CALL
B3199B319963-65MANIFOLD - exhaust, RH, 2 1/2", 327 all except FI w/choke tube, #/3797902350.00
A3112A311263-65MANIFOLD - exhaust, RH, 2 1/2" w/FI, 360/375HP #3797902  CALL
B3110B311064-65MANIFOLD - exhaust, RH, 2 1/2", w/AC, sp. hi perf. #3846563, w/out counter bore  CALL
 B314966-67PLUG SET - emission holes in exhaust manifold, (set of 8)19.55
A3119A311963-67SLEEVE - exhaust donut alignment, 2 1/2"9.85
A3117A311763-67SLEEVE - exhaust donut alignment, 2"10.65
A3126A312663-67SPACER - 2", installs below exhaust manifold, (replaces heat riser)56.00
A3132A313263-65SPACER - 2 1/2", installs below exhaust manifold, (replaces heat riser)67.00
A3140A314063-67STUD & NUT KIT - exhaust manifold to exhaust pipes, stainless steel, (12 pc)39.60
 A313663-67STUD & NUT KIT - exhaust manifold to pipe, (12 pc.)22.95
 A376463-65STUD - lower clean air tube to exhaust manifold8.95
A3116A311663-67WASHER SET - exhaust manifold bolts, (8 pc.)12.19
