1968-82 Arrow BATTERY & BATTERY CABLES

BATTERY & BATTERY CABLES

Diagrams:


Battery and Related Diagram Thumbnail
Battery and Related
(click to enlarge)

Battery Cable Area Diagram Thumbnail
Battery Cable Area
(click to enlarge)

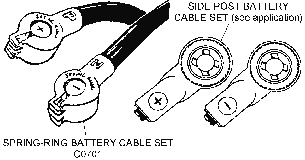

Battery Cables Diagram Thumbnail
Battery Cables
(click to enlarge)

Battery Disconnect Switch Diagram Thumbnail
Battery Disconnect Switch
(click to enlarge)


 C072668-82ADAPTER - converts side post battery to accept top post design cable5.95
 C071068-69EBATTERY - Delco Energizer R59S, top post, w/correct caps and hoses449.95
 C0710X68-69BATTERY - R59S EQUIVELANT/GENERIC, top post424.95
 C070368-69EBATTERY - Delco Energizer R59S, top post, heavy duty359.00
 C072569L-70EBOLT - battery cable, side terminal, w/7/16" head, NOS (after SN #22081 1969)6.95
B0731B073168-82BOLT - battery hold-down3.45
 C070470-82CABLE - battery, positive, (70-79 replacement)149.95
C0715C071568-71CABLE - battery, ground, starter to frame51.95
 C070068-71CABLE - starter to frame, ground32.00
 C071972-82CABLE - starter to frame, ground59.95
C0701C070168-69ECABLE SET - battery, spring ring, 2 gauge heavy duty cable, as original, for top post battery169.95
C0722C072269LCABLE SET - battery, side post battery, 2 gauge w/grommets, (pr)189.95
 C071270CABLE SET - battery, side post battery, 2 gauge, w/grommet, (pr)182.00
 C071371CABLE SET - battery, side post battery, 2 gauge, w/grommet, (pr)182.00
 C072372-74CABLE SET - battery, side post battery, 0 gauge w/grommets, (pr)182.00
 C072475-79CABLE SET - battery, side post battery, 0 gauge w/grommets, (pr)182.00
B0716B071668-82CLAMP - battery hold down w/bolt9.15
 A076768-72DATING SERVICE - battery, on Delco Energizer50.00
A0713A071368-82FELT SET - battery terminals, prevents corrosion, (pr)4.95
C0714C071468-75HOSE SET - battery cap vent, (pr)12.95
C5887C588768INSULATION SET - jack/battery compartment, correct materials as original, (2 pc.)94.65
C0721C072168-82MAT - under battery, prevents corrosion, 8"x 12" 6.95
C0720C072068-82REINFORCEMENT - battery hold down, front, rivets to underbody10.85
C0730C073068-82REINFORCEMENT - battery hold-down, rear15.45
C0717C071768-82RETAINER/CLAMP - battery, rivets to floor12.72
C0705C070568-75STRAP - battery cable retainer, positive cable to engine block on RH side, Plastisol dipped as original13.25
B5150B515068-82STUD PLATE-negative battery cable to underbody tunnel, (6 req.)(ea)9.85
 C071868-82SWITCH - battery disconnect, side post style14.95
A0700A070053-82SWITCH - battery disconnect, top post style battery17.95
