1963-67 Arrow FRAME Arrow Frame & Crossmember Components

Frame & Crossmember Components

Diagrams:

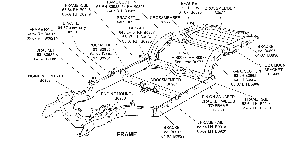

Frame Diagram Thumbnail
Frame
(click to enlarge)


B0963B096363BODY MOUNT - above rear suspension52.79
B0962B096264-67BODY MOUNT - above rear suspension51.69
B0831B083163-64LBRACKET - axle bumper on rear frame rail / welds in place 2 required. each48.00
 B091363BRACKET - body mount #1 on frame, LH76.99
 B092363BRACKET - body mount #1 on frame, RH65.95
B0929B092964-67BRACKET - body mount #1 on frame, LH42.25
 B098164-67BRACKET - body mount #1 on frame, RH63.75
 B079263BRACKET - body mount # 2, on frame, LH or RH54.95
 B079363BRACKET - body mount # 3, on frame, LH or RH 54.95
B0952B095264-67BRACKET - body mount #2 or 336.20
B0895B089563BRACKET - body mount, on frame, at rear #452.79
 B089664-67BRACKET - body mount, on frame, at rear #443.45
B0951B095164-67BRACKET - body mount, on frame, under door, convertible only53.89
B0972B097263BRACKET - parking brake lever, (welds to frame)25.25
B0973B097364-66BRACKET - parking brake pivot, (welds to frame)20.89
 B097567BRACKET - parking brake pulley, (welds to frame)36.85
B0903B090363-67BRACKET - pinion snubber, welds to frame103.50
B0990B099063-67BRACKET - rear shock, upper, (welds to frame)(2 req.)(ea)18.69
B0970B097064-66BRACKET SET - parking brake cable on frame, (pr)29.69
B0971B097167BRACKET SET - parking brake cable on frame, (pr)22.65
B0980B098063-67BRACKET SET - rear brake block, (weld on)(pr)21.99
B0977B097763-67BRACKET/GUSSET - sombrero LH, (welds to frame)35.00
B0978B097863-67BRACKET/GUSSET - sombrero RH, (welds to frame)53.89
B0958B095863-67CAGE & NUT - for inside body13.95
B0974B097464-66CLAMP - parking brake cable7.50
 B089363-64CROSSMEMBER / FRONT - used original/nice  CALL
 B089465-67CROSSMEMBER / FRONT - used original/nice  CALL
 B090163-67CROSSMEMBER - #3 w/differential bracket575.00
 B099863-67CROSSMEMBER - above rear end, recond. w/2 new with rubber cushions installed  CALL
B0927B092763-67CROSSMEMBER - frame over rear axle299.95
 B092263-67CROSSMEMBER - rear frame319.00
 B099263-67CROSSMEMBER - transmission540.80
B0976B097663-67CUSHION - steel sombrero, (weld to bracket B0977 & B0978) (2 req., ea)54.95
B0905B090563-67END PLATE - frame rail, (2 reg.)(ea)14.95
 B099465-67FRAME ASSEMBLY - rear cowl back, (specify year & coupe or convertible)2832.00
 B091463-64FRAME RAIL - section 23", in front of kick-up, LH122.95
 B091563-64FRAME RAIL - section 23", in front of kick-up, RH122.95
 B091865-67FRAME RAIL - section 23", in front of kick-up, LH122.95
 B091965-67FRAME RAIL - section 23", in front of kick-up, RH122.95
 B091663-64FRAME RAIL - section 48", in front of kick-up, LH178.95
 B091763-64FRAME RAIL - section 48", in front of kick-up, RH178.95
 B092065-67FRAME RAIL - section 48", LH178.95
 B092165-67FRAME RAIL - section 48", RH178.95
 B098263FRAME SECTION - kick-up, LH568.10
 B098363FRAME SECTION - kick-up, RH568.10
 B098464FRAME SECTION - kick-up, LH568.10
 B089864FRAME SECTION - kick-up, RH568.10
 B089965-67FRAME SECTION - kick-up, LH769.00
 B098565-67FRAME SECTION - kick-up, RH769.00
B0897B089764LGUSSET - side rail to crossmember, LH or RH (after 4/21/64)27.49
B0924B092465-67GUSSET - side rail to crossmember, LH31.89
B0925B092565-67GUSSET - side rail to crossmember, RH31.89
 B096663-67EGUSSET/BRACKET - over axle crossmember, for sombrero, LH25.00
 B096763-67EGUSSET/BRACKET - over axle crossmember, for sombrero, RH25.00
B0945B094567LGUSSET/BRACKET - over axle crossmember, for sombrero, LH49.95
B0946B094667LGUSSET/BRACKET - over axle crossmember, for sombrero, RH49.95
 G501263-67PAINT - frame & chassis, asphalt based, black, quart23.95
B0815B081563-67REPAIR KIT - crossmember #3 on bottom, 7 inch39.50
 B098863-67SUPPORT - motor, LH, (welds to frame)139.20
B0989B098963-67SUPPORT - motor, RH, (welds to frame)139.20
