Diagrams:

1963-67 Rear End Rebuild Kits Diagram Thumbnail

1963-67 Rear End Rebuild Kits
(click to enlarge)

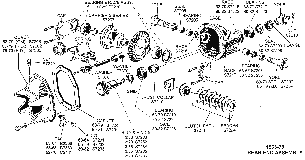

1963-79 Rear End Assembly Diagram Thumbnail

1963-79 Rear End Assembly
(click to enlarge)

A7218	63-67	BEARING - carrier, side, (2 req.)(ea)	23.95
S7219	63-67	BEARING - pinion, inner	27.95
S7217	63-67	BEARING - pinion, outer	25.75
S7221	63-67	BEARING - rear, inner	17.95
S7205	63-67	BEARING - side yoke, (2 req.)(ea)	15.95
A7284	63-67	BOLT SET - ring gear to pinion (10 pc.)	21.65
B5232	63-67	CARRIER CASE - non posi, for ring gear assembly, 3 series, used	75.00
S7211	65-67	CLUTCH PACK - posi	239.95
S7212	65-67	CROSS PIN - posi unit	41.45
S7188	63-64	CRUSH COLLAR - all w/original course spline yoke	11.00
S7210	65-67	CRUSH COLLAR	11.00
S7306	63-67	DEFLECTOR - rear end front yoke	10.95
S7241	63-67	LUBRICANT - rear end, quart, (2 quarts req.)(ea.)	6.75
S7242	63-67	LUBRICANT ADDITIVE - posi-traction rear end fluid	16.95
S7213	63-67	NUT - pinion	8.25
S8209	63-64	POSI CARRIER ASSEMBLY - original 3 series, complete, used, guaranteed not to be cracked, w/o any other warranty	195.00
S7310	63-64	POSI CARRIER ASSEMBLY - original 4 series, complete, used, guaranteed not to be cracked, w/o any other warranty	195.00
S7297	63-67	POSI CARRIER/CASE - 3 series, 3:08 - 3:70 ratios / bare [63/4 replacement]	424.95
S7297U	63-67	POSI CARRIER/CASE - 3 series, 3:08 - 3:70 ratios / used w/used internals [63/4 replacement]	349.95
S7298	63-67	POSI CARRIER/CASE - 4 series, 4:11 & up ratios, bare/used [63/4 replacement]	549.95
S7295	65-67	POSI CARRIER HARD PARTS KIT - 4 springs & 2 plates, 6pc	75.23
S7220	63-67	RACE - pinion, inner	9.65
S7218	63-67	RACE - pinion, outer	9.95
S7222	63-67	RACE - rear, inner	18.95
S7216	63-67	RACE - side yoke, (2 req.)	9.95
S7239	65-67	REBUILD KIT - non-posi rear end / bearings, races, seals & more - see chart	137.95
S7214	63-67	REBUILD KIT - posi rear end / bearings, races seals, posi pack & more - see chart -all 63/67 with fine spline yoke [not 63/4 with course spline]	389.00
S7315	65-67	REMANUFACTURING SERVICE - posi carrier case, ovaled-out pin hole repaired, cracks in housing can not be repaired		CALL
S7293	65-67	SCREW & BOLT - posi carrier pin retainer	16.45
A7213	63-64	SEAL - pinion, front	33.80
S7209	65-67	SEAL - pinion, front	13.95
S7206	63-67	SEAL - side yoke, (2 req.)(ea)	8.75
S7204K	63-67	SEAL KIT - rear end, 2 side yoke and 1 pinion seal, rear cover and drain plug gasket, 5pc	27.95
S7320	63-67	SPACER - ring gear	41.00
S7294	64-67	SPACER/PLATE - posi clutch	11.75
S7372	63-64	TAG - rear end ID, metal, 3:08	10.95
S7373	63-64	TAG - rear end ID, metal, 3:36	10.95
S7374	63-64	TAG - rear end ID, metal, 3:55	10.95
S7375	63-64	TAG - rear end ID, metal, 3:70	10.95
S7376	63-64	TAG - rear end ID, metal, 4:11	10.95
S7377	63-64	TAG - rear end ID, metal, 4:56	10.95
B2338	63-64	TAG - rear end, "Limited Slip" for round metal	10.50
B0013	65	TAG - red plastic, posi traction for rear end drain plug	11.95
B2339	66-67	TAG - rear end, posi-traction for drain plug, red plastic	13.95
S7355	63-64	VENT - differential, metal,	19.65
S7240	63-67	VENT - differential	5.90
S7318	63-64	YOKE - 3 27/32" diameter, front of differential, mount on pinion, coarse spline, original 1963/4 only, (recond.)	179.95
S7309	63-67	YOKE - 3 27/32" diameter, front of differential, mount on pinion, w/deflector, fine spline	99.00
