1963-67

STEERING COLUMN, TURN SIGNAL ASSEMBLY & STEERING WHEEL

1964 66 Steering column Non Teli

Diagrams:

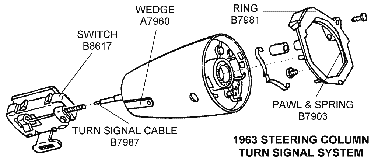

1963 Steering Column Turn Signal System Diagram Thumbnail

1963 Steering Column Turn Signal System
(click to enlarge)

Bracket Diagram Thumbnail

Bracket
(click to enlarge)

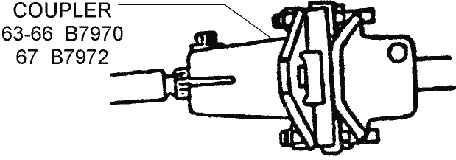

Coupler Diagram Thumbnail

Coupler
(click to enlarge)

Coupler Repair Kit Diagram Thumbnail

Coupler Repair Kit
(click to enlarge)

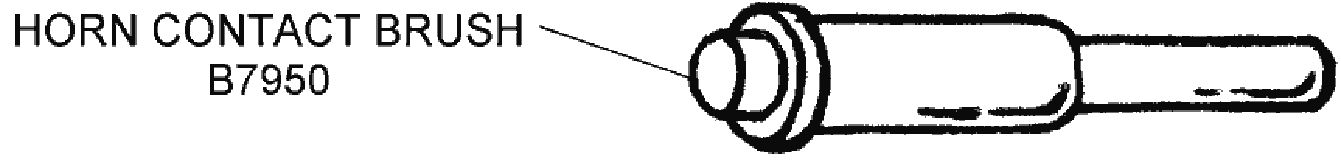

Horn Contact Brush Diagram Thumbnail

Horn Contact Brush
(click to enlarge)

Seal Diagram Thumbnail

Seal
(click to enlarge)

Steering Column Detail Diagram Thumbnail

Steering Column Detail
(click to enlarge)

B8053	64-66	"O" RING - turn signal actuator plate	1.64
B7975	64-66	"U" BOLT & NUTS - steering column, under dash	27.49
B7989	64-64	ACTUATOR/PLATE - turn signal switch	8.25
B7918	64-66	BEARING - lower steering column	29.95
B7916	64-66	BEARING - upper steering column	29.95
B7125	64-66	BELL - steering column turn signal assembly housing, (used).	90.00
B8311	64-66	BOLT - steering column coupler, star head	8.50
B7968	64-66	BRACKET - steering column mount, under dash	40.69
B7950	64-66	BRUSH - horn brush contact	16.05
B7936	64	BUTTON - horn	74.95
B7938	65-66	BUTTON - horn	67.75
B7958	64-66	CAM - turn signal canceling	24.25
B7154	64-66	CAPACITOR - on turn signal switch, between flasher & fuse block		CALL
B7932	64-66	CLAMP - lower steering column bearing spring	14.65
B7910	64-66	CLAMP W/SCREW - steering column/on firewall	12.75
B7907	64-66	COLLAR - steering column at dash	114.95
B7901	64-66	COLUMN ASSEMBLY - steering, restored		CALL
B7944	64-66	CONTACT - horn, (except tele)	27.95
B7891	64-66	COUPLER/RAG JOINT - w / ground strap, lower steering column / DICONTINUED		CALL
B9807	64-66	COUPLER REPAIR KIT - w/rubber connector, limit bolts & fasteners	19.95
B7942	65-66	EMBLEM - horn button	20.95
B7969	64-66	FASTENER KIT - steering column mount bracket	5.95
B7922	64-66	HOUSING/ADAPTER - lower steering column bearing	11.10
B8030	64-66	HUB - steering wheel	144.00
B8028	64-64	INSULATOR & RETAINER SET - steering column collar	17.45
B7964	64-66	LEVER/HANDLE - turn signal	226.25
B7933	65-66	LINER - tele horn button, (between emblem & backing ring)	39.85
A7962	64-66	NUT - steering wheel hub mount	13.25
B8032	64-66	PLATE - turn signal (non-tele) switch repair, plastic	11.85
B9853	64-66	PROTECTOR/SHIELD - turn signal wires, including clip	21.00
A8312	64-66	PULLER - steering wheel hub	31.95
B7928	64-66	REBUILD KIT - lower steering column, (w/o telescoping column) includes bearing, spring and stainless washer	33.95
C7968	64-66	RETAINER - horn button cap	11.25
B7906	64-66	RETAINER - upper steering column mast jacket	23.35
B8054	64-66	SCREW & LOCK WASHER KIT - turn signal canceling cam, (4 pc.)	1.75
B8037	63-66	SCREW & NUT SET - steering column mounting bracket, (4 pc.)	5.49
B8033	63-66	SCREW - steering column clamp at firewall, w/flat washer	4.39
B7995	64-66	SCREW - turn signal lever mounting	1.00
B3416	64-66	SCREW SET - steering column collar at dash, (2 pc.)	3.50
B8055	64-66	SCREW SET - steering column support bracket at firewall, (2 pc.)	3.84
B3470	64-66	SCREW SET - steering wheel mounting, (6 pc.)	5.25

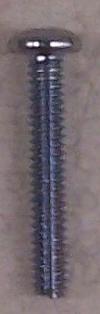

B9852	64-66	SCREW SET - turn signal switch mounting	4.94
B7912	64-66	SCREW SET- horn contact, (6 pc.)	3.45
B2930	64-66	SEAL - steering column at firewall	5.80
B7908	63-66	SHAFT - steering column	139.95
B7926	63-66	SPRING - lower steering column shaft	8.25
B9820	64-66	STAR BOLT - lower steering column coupler	7.40
B7904	65-66	STEERING WHEEL - teak wood/may take 6-8 weeks	1595.00
B7860N	64-66	STEERING WHEEL - wood grained plastic, NEW	1000.00
B9862	64-66	STEERING WHEEL - wood grained plastic, original, mint condition	525.00
B7973	64-66	SUPPORT - steering column and odometer cable, under dash	40.69
B7977	64-66	SUPPORT - steering column on firewall	36.85
B7952	64-66	SWITCH - turn signal, w/harness, W/O TELE	67.50
B7914	64-66	TUBE - steering column	109.95
B7930	64-66	WASHER - lower steering column bearing	6.25
