 | C0954 | 68-82 | BRACKET SET - header bar reinforcement, to inner skirt, LH & RH | 34.75 | |
 | C0907 | 68-75 | BRACKET/STRAP - underbody heat shield attaching, (3 req.)(ea) | 9.70 | |
 | B0958 | 68-82 | CAGE & NUT - body mounts, (2 req.)(ea) | 13.95 | |
 | G2600 | 68-82 | CAULK - access plates, strip type | 12.95 | |
 | B0912 | 68-78 | COVER SET - rear body mount access rear wheel, w/screws, (pr) | 19.95 | |
| | C7536 | 75-77 | FLOOR PAN - metal, w/sill extension, LH | 289.95 | |
| | C7537 | 75-77 | FLOOR PAN - metal, w/sill extension, RH | 289.95 | |
 | C7539 | 78-82 | FLOOR PAN - metal, LH, (exc. 81-82 w/power seat) | 377.95 | |
| | C7540 | 78-82 | FLOOR PAN - metal, RH | 377.95 | |
 | C0905 | 68-82 | HEADER BAR - front header surround | 187.95 | |
 | C8714 | 68-69 | INSULATION - underbody blanket, LH | 51.45 | |
 | C8712 | 68-69 | INSULATION - underbody blanket, RH | 51.45 | |
 | B8767 | 68-76 | INSULATION - transmission tunnel | 65.00 | |
 | C8796 | 68-69 | INSULATION SET - underbody blankets, pr | 97.95 | |
 | B0801 | 68-87 | NUT - body mount, (square) | 5.90 | |
 | C3373 | 68-73 | NUT PLATE - rear exhaust valance, w/rivet set, (12 pc.) | 13.95 | |
 | C0935 | 68-74 | NUT PLATE - rear seat mount, underbody | 13.00 | |
| | G5090 | 68-82 | PAINT - GM chassis, black, 12 oz. aerosol | 5.85 | |
 | G5013 | 68-82 | PAINT - synthetic zinc chromate primer, green | 12.35 | |
 | C5658 | 68-71 | PLUG KIT - floor plan | 9.30 | |
| | C5659 | 72-75 | PLUG KIT - floor pan | 9.70 | |
 | C0720 | 68-82 | REINFORCEMENT - battery hold down, front, rivets to underbody | 10.85 | |
 | C0730 | 68-82 | REINFORCEMENT - battery hold-down, rear | 15.45 | |

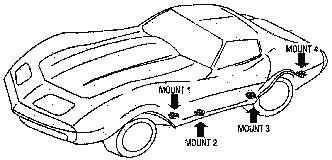

 | C0900 | 68-82 | REINFORCEMENT - body mount #1 on firewall | 25.00 | |
 | C0928 | 68-82 | REINFORCEMENT - body mount #4 on body, LH | 62.95 | |
 | C0930 | 68-82 | REINFORCEMENT - body mount #4 on body, RH | 62.95 | |
 | C7532 | 68-70 | REINFORCEMENT - deck lid hinge, convertible, LH, on floor | 38.75 | |
 | C7533 | 68-70 | REINFORCEMENT - deck lid hinge, convertible, RH, on floor | 38.75 | |
 | C7534 | 71-75 | REINFORCEMENT - deck lid hinge, convertible, LH, on floor | 38.75 | |
 | C7535 | 71-75 | REINFORCEMENT - deck lid hinge, convertible, RH, on floor | 38.75 | |
 | C0952 | 68-72 | REINFORCEMENT - hood surround, (rivets to surround) | 145.95 | |
 | C1248 | 73-74 | REINFORCEMENT - hood surround, (rivets to surround) | 124.95 | |
 | C0936 | 68 | REINFORCEMENT - seat belt, outer, LH | 49.00 | |
 | C0937 | 68 | REINFORCEMENT - seat belt, outer, RH | 49.00 | |
 | C0938 | 69 | REINFORCEMENT - seat belt, outer, LH | 49.00 | |
 | C0939 | 69 | REINFORCEMENT - seat belt, outer, RH | 49.00 | |
| | C0990 | 68 | REINFORCEMENT - seat belt underbody, w/weld nut, outside, LH | 49.00 | |
| | C0991 | 68 | REINFORCEMENT - seat belt underbody, w/weld nut, outside, RH | 49.00 | |
| | C0992 | 69 | REINFORCEMENT - seat belt underbody, w/weld nut, outside, LH | 49.00 | |
| | C0993 | 69 | REINFORCEMENT - seat belt underbody, w/weld nut, outside, RH | 49.00 | |
 | B0969 | 68-69 | REINFORCEMENT - seat belt underbody, w/weld stud, inner, LH | 34.95 | |
 | B0968 | 68-69 | REINFORCEMENT - seat belt underbody, w/weld stud, inner, RH | 34.95 | |
 | C0956 | 70 | REINFORCEMENT - seat belt underbody, outer, LH | 30.45 | |
 | C0957 | 70 | REINFORCEMENT - seat belt underbody, outer, RH | 30.45 | |
 | C0933 | 72-73 | REINFORCEMENT - seat belt anchor underbody, LH | 68.95 | |
| | C0934 | 72-73 | REINFORCEMENT - seat belt anchor underbody, RH | 66.40 | |
 | C0975 | 75 | REINFORCEMENT - seat belt anchor underbody, LH | 49.00 | |
 | C0976 | 75 | REINFORCEMENT - seat belt anchor underbody, RH | 49.00 | |
| | C0977 | 74-76 | REINFORCEMENT - shoulder harness belt/underbody, LH | 49.00 | |
| | C0978 | 74-76 | REINFORCEMENT - shoulder harness belt/underbody, RH | 49.00 | |
 | C8708 | 68-69 | RETAINER SET - underbody insulation, (17 pc.) | 35.00 | |
| | B0934 | 68-82 | RIVET SET - soft aluminum flat head 7/16" long, (50 pc.) | 5.95 | |
| | B0938 | 68-82 | RIVET SET - soft aluminum flat head 5/8" long, (50 pc.) | 6.05 | |
 | C4628 | 68-72 | ROD - nose support, core support to header bar | 41.07 | |
| | C4605 | 73-79 | ROD - nose support, core support to header bar | 12.00 | |
| | B0949 | 68-82 | SCREW SET - rear body mount access covers by rear wheel, (4 pc.) | 3.50 | |
 | C2993 | 68-69 | SHIELD - heat, attaches of frame under floor pan, (2 req.)(ea) | 29.00 | |
 | C0965 | 73-80 | SHIELD SET - body mount, installs outboard of body mount #1 | 16.40 | |

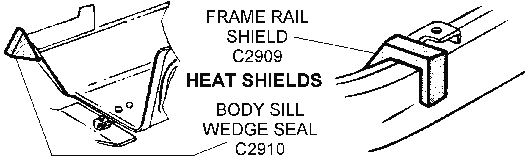

 | C2909 | 69-75 | SHIELD SET - heat, frame rail, mounts between frame rail & underbody in front of #2 body mount, (pr) | 31.85 | |
 | C2910 | 69-75 | SHIELD SET - heat, body sill wedge, triangular black shield mounts between firewall & splash shields, along the frame, (pr) | 12.85 | |
 | C0967 | 68-82 | SUPPORT - front lower body hinge pillar/LH | 198.00 | |
 | C0968 | 68-82 | SUPPORT - front lower body hinge pillar/RH | 198.00 | |
 | B5150 | 68-82 | STUD PLATE - fastens: 68-71 horn relay (1 req.), 68-72 splash shield (4 req.), 68-82 heater box to firewall (2 req.), 68-82 neg. battery cable to underbody (6 req.)(ea) | 9.85 | |
BODY MOUNTING & ASSEMBLY
