1968-82 Arrow DECALS, INSTRUCTIONS & LABELS Arrow Cooling System

Cooling System

Diagrams:

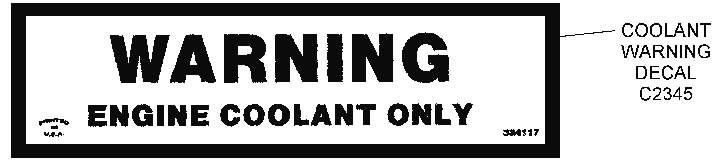

Warning: Engine Coolant Only Diagram Thumbnail
Warning: Engine Coolant Only
(click to enlarge)


C2344C234473DECAL - shroud caution3.40
C2345C234573-77EDECAL - coolant warning5.50
C2347C234779-80DECAL - fan caution4.35
C2348C234880-82DECAL - fan caution, large yellow10.00
C2216C221677L-82DECAL - coolant bottle cap10.05
A2348A234868-72LABEL - Harrison radiator, foil7.95
B2346B234668-72LABEL - inspection number "8", green, expansion tank4.65
B2347B234768-72LABEL - inspection number "3", green, expansion tank4.65
B2348B234868-72STAMP KIT - "16CT" radiator inspection, w/327/35030.95
