1968-82 Arrow DOOR Arrow Hinge, Pillar, Striker

Hinge, Pillar, Striker

Diagrams:


Hinge Assembly Diagram Thumbnail
Hinge Assembly
(click to enlarge)

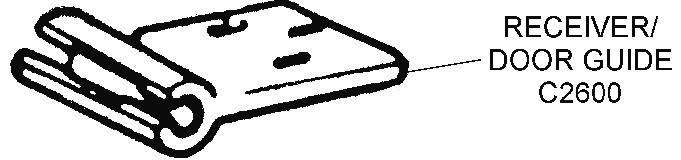

Receiver / Door Guide Diagram Thumbnail
Receiver / Door Guide
(click to enlarge)

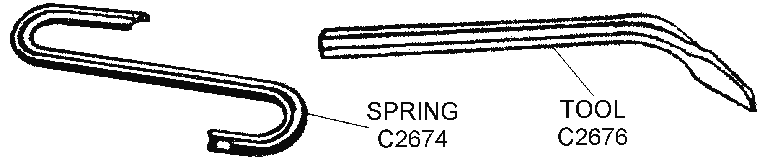

Spring and Tool Diagram Thumbnail
Spring and Tool
(click to enlarge)


 C263968-75BOLT SET - receiver to door receiver reinforcement, located inside door pillar, "anchor" HM, convertible, (6 pc.)14.00
 A268668-82BUSHING SET - door hinge pin, (8 pc.)6.00
C2607C260770-75GUIDE/WEDGE - on door - all convertibles, die cast chrome plated aluminum, w/studs, LH86.04
C2609C260970-75GUIDE/WEDGE - on door - all convertibles, die cast chrome plated aluminum, w/studs, RH86.04
C2633C263368GUIDE/WEDGE SET - door alignment, all convert., brass & plastic (4 pc.)52.25
C2646C264668-82HINGE - door, lower, LH97.50
 C257868-82HINGE - door, lower, LH, (used, reconditioned, outright)39.95
 C257968-82HINGE - door, lower, RH, (used, reconditioned, outright)39.95
C2644C264468-82HINGE - door, upper, LH149.50
 C264568-82HINGE - door, upper, RH  CALL
 C257668-82HINGE - door, upper, LH, (used, reconditioned, outright)39.95
 C257768-82HINGE - door, upper, RH, (used, reconditioned, outright)39.95
C2605C260568-82PIN - striker, door latch on body4.10
 A268468-82PIN - door hinge6.85
 A268568-82PIN & BUSHING KIT - door hinge repair, (12 pc.)23.60
C2600C260070-75RECEIVER/DOOR GUIDE - on door jamb, all convertibles132.02
C2687C268770-75REINFORCEMENT - convertible door guide, mounts into door, w/template & instructions, LH31.57
C2688C268870-75REINFORCEMENT - convertible door guide, mounts into door, w/template & instructions, RH31.57
C2648C264870-75SEAL - receiver/door guide on convertible body, foam w/adhesive6.50
C2680C268068-82SHIM - door hinge4.30
C2674C267468-82SPRING - door hinge, (lifetime warranty)(ea)10.95
C2676C267668-82TOOL - door hinge spring installation12.60
C4017C401768-69WEDGE/CATCH - door alignment, on rear of door, brass69.55
