1968-82 Arrow DOOR Arrow Internal

Internal

Diagrams:


1968-77 Internal Door Components Diagram Thumbnail
1968-77 Internal Door Components
(click to enlarge)

1978-82 Control Diagram Thumbnail
1978-82 Control
(click to enlarge)

1978-82 Internal Door Components Diagram Thumbnail
1978-82 Internal Door Components
(click to enlarge)


C2670C267078-82ACTUATOR - power door lock, (2 req.)(ea)53.15
C2627C262768-82BEARING - door glass, roller type17.45
C2661C266170-72BUMPER SET - door, jamb warning alarm switch, (pr)7.45
C2628C262868-82BUSHING - door glass lift channel, (ea)2.65
C2659C265968-82BUSHING - door glass7.85
C2653C265368-82CAP - door glass bushing4.30
G2600G260068-82CAULK - door access plates, strip type12.95
 C264168-82CLIP - inside door control rod, RH, (5 req.)(ea)1.10
C2613C261369-82CLIP - outside door handle rod4.70
C2622C262268-77CONTROL - inside door opening, LH84.50
C2623C262368-77CONTROL - inside door opening, RH84.50

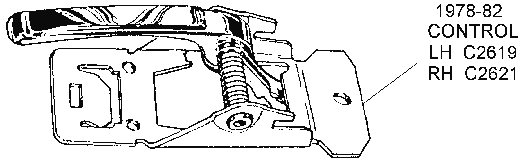

C2619C261978-82CONTROL - inside door opening, LH21.95
C2621C262178-82CONTROL - inside door opening, RH21.95
 C264269-82CUSHION - door glass anti-rattle, (felt covered)(4 req.)(ea)9.45
C2660C266069-82CUSHION SET - glass anti rattle cushions, does both doors, 4pc40.85
 C594379L-82DIVERTER - door sill water, RH16.95
 C257568-82GASKET - small door access plate11.95
C4007C400768-77GROMMET - door rod, anti-rattle, (4 req.)(ea)5.80
C2601C260169-77LATCH ASSEMBLY - door lock, LH129.95
 C260369-77LATCH ASSEMBLY - door lock, RH129.95
 C268178-82LATCH ASSEMBLY - door lock, LH129.95
 C268278-82LATCH ASSEMBLY - door lock, RH129.95
C2697C269768-82MOUNT & ROLLER KIT - door glass/front36.25
C2684C268469L-82NUT - door glass channel or guide roller, round4.95
C2615C261569-81PIN/PIVOT - outside door handle rod9.90
C4009C400968-79PLUG SET - power window hole, (2 req.)(ea)2.90
 C265468-79REGULATOR - w/o power windows, LH, original, reconditioned, w/new gear if required, exchange139.95
 C265568-79REGULATOR - w/o power windows, RH, original, reconditioned, w/new gear if required, exchange139.95
A5988A598868-82REPAIR KIT - door panel mount holes in door39.95
B6144B614468-77RETAINER - door lock cylinder pawl1.65
C6127C612769-82RETAINER - door lock5.25
B6953B695368-82RETAINER SET - door pull lock rod, (2 pc.)7.75
 C267777L-82RETAINER & SWITCH - drivers door lock & alarm activator (restored/original)74.95
 C261669-82ROD - outside door, handle to mechanism, LH16.00
 C261769-82ROD - outside door, handle to mechanism, RH13.60
C2618C261868-77ROD - inside upper door lock mechanism24.95
 C262068-77ROD - inside lower door lock mechanism22.00
C2698C269868-77ROD - inside opening lock mechanism, (ea)41.60
C2689C268968-82ROLLER SET - window regulator, (6 pc.)34.95
C2631C263168-82ROLLER & SLIDE ASSEMBLY - door glass track24.60
C2611C261168-82SPRING - power window regulator25.90
 C867677L-78SWITCH - alarm on/off w/harness, drivers door  CALL
 C867779-80SWITCH - alarm on/off w/harness, drivers door33.50
 C864981-82SWITCH - alarm on/off w/harness, drivers door, LH33.50
 C865581-82SWITCH - alarm on/off w/harness, passenger door, RH33.50
 C267568-82WASHER - door glass channel4.00
 B266868-77WASHER - door lock knob to door panel, (plastic)1.65
C2582C258268-82WASHER INSULATOR - door glass channel/plastic4.40
 C263768WASHER SET - rubber, door glass insulator, (4 pc.)2.75
C2664C266468-77WASHER SET - rubber, door glass, (3 pr. req.)(2 pc)4.10
