1968-82 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, FUEL PUMPS, HEADS, IGNITION SHIELDING, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Blocks & Related Arrow Blocks & Engine Rebuilding Components - 327/350

Blocks & Engine Rebuilding Components - 327/350

Diagrams:

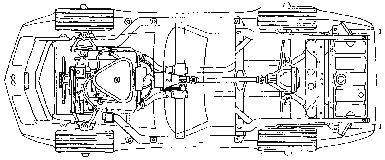

Bottom View Diagram Thumbnail
Bottom View
(click to enlarge)

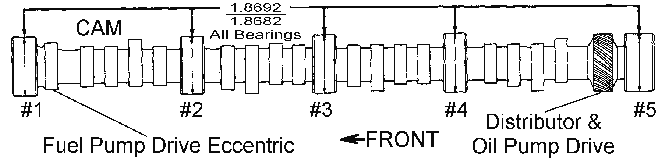

Cam Diagram Thumbnail
Cam
(click to enlarge)


 B287368CAM - 327/350hp, GM #3863151137.95
 B287668-82CHAIN & GEAR SET - engine timing, 327/35033.95
 G500868-82CLEANER - engine6.05
A2887A288768-82DOWEL PIN SET - timing chain cover, installs in block (2 pc)3.65
 G5102DRESSING - belt, Permatex, extends belt life, 16 oz. can3.95
A2328A232868-82FEELER GAUGE - for setting valves7.04
 G5101FORM-A-GASKET - Permatex no. 2 sealant, non-hardening sealant for use w/cut gaskets, 1.5 oz. tube12.95
 G5100FORM-A-GASKET - Permatex no.1 sealant, hard setting sealant for rigid materials and flanges, 1.5 oz. tube12.95
 A289768-82FREEZE PLUG SET - 8 pc18.95
 A283568-74GASKET KIT - engine, complete62.95
G5107G5107GREASE - white lithium, Permatex, all purpose, anti-moisture lube 16 oz. aerosol can5.95
 A282168-82LIFTER SET - solid, 16 pc set  CALL
 A281568-82LIFTER SET - hydraulic, 16 pc set  CALL
 G5108LUBRICANT - anti-seize, Permatex, use during assembly to prevent corrosion seizing, 1 oz. tube3.60
A2847A284768-82PICK UP & SCREEN - oil (in oil pan)  CALL
 A289868-82PUMP - oil, standard59.95
 A280168-82PUMP - oil, hi output54.95
 A281768-82PUSH ROD - (16 req.)(ea)4.35
 A281968-82ROCKER ARM - w/ball & nut, (16 req.)(ea)5.65
 A282068-82ROD - oil pump drive14.00
 G5105SEALANT - threadlocker/blue, Permatex, seals and resists pressure in fittings, general purpose, .35 oz. tube4.60
 G5106SEALANT - blue silicone, Permatex, makes reliable formed-in-place gaskets, 3 oz. tube5.25
 G5104SILICONE - hi-temp RTV, Permatex, sensor safe RTV gasket, 3 oz. tube5.40
 A282668-82SPRING SET - valves in heads, 327, (16 pc.)60.90
B2860B286068-74STUD/BOLT - oil pan baffle, 427/45424.45
C8633C863371-73SWITCH - thermal, in RH head19.95
 G5109TEFLON TAPE - Loctite PST, liquid, lubes, locks & seals pipe threads, temp. to 400 degrees, 50 ml. tube10.50
 G5110THREADLOCKER - Loctite 271, red, high strength for bolts & nuts up to 1", 6 mi. tube6.40
 G5111THREADLOCKER - Loctite 242, blue, medium strength for bolts & nuts up to 3/4", 6 mi. tube5.65
