1968-82 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, FUEL PUMPS, HEADS, IGNITION SHIELDING, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Exhaust Manifolds Arrow Exhaust Manifolds & Related

Exhaust Manifolds & Related

Diagrams:


Actuator and Related Diagram Thumbnail
Actuator and Related
(click to enlarge)

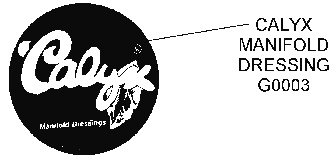

Calyx Manifold Dressing Diagram Thumbnail
Calyx Manifold Dressing
(click to enlarge)

Exhaust Heat Riser Diagram Thumbnail
Exhaust Heat Riser
(click to enlarge)

Exhaust Manifold Diagram Thumbnail
Exhaust Manifold
(click to enlarge)

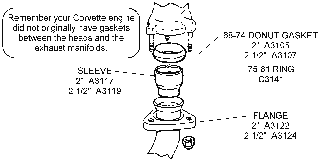

Flange, Sleeve, and Gasket Diagram Thumbnail
Flange, Sleeve, and Gasket
(click to enlarge)


 C319575-77ACTUATOR - heat riser, w/bracket & rod, reconditioned95.00
B3101B310168-76BOLT/STUD KIT - exhaust manifold 327/350 w/AC, double circle headmark (12 pc)36.29
A3120A312068-79BOLT SET - 327/350 exhaust manifolds, w/o AC, double circle HM (12 pc.)21.75
B3133B313368-74BOLT & STUD KIT - 427/454 w/air w/o P.S. double circle headmark38.49
B3134B313468-74BOLT & STUD KIT - 427/454 w/AC & P.S. double circle hm, (16 pc.)42.89
B3132B313268-74BOLT KIT - 427/454 w/P.S. w/o AC double circle headmark37.55
 C311868-79BOLT KIT - 327/350 exhaust manifold repl, (12 pc.)12.00
B3148B314868-74BOLT KIT - 427/454 exhaust manifold double circle headmark, (14 pc.) w/o P.S. or AC31.89
 G511368-82CEMENT - muffler, 6 oz.5.95
C3144C314476-80COVER - carburetor air heat choke stove all w/A.I.R. on exhaust manifold 92.00
C3143C314376-80COVER - carburetor air heat choke stove all w/o A.I.R. on exhaust manifold92.00
A3105A310568-74DONUT/SEAL - 2" exhaust manifold to pipe3.50
A3107A310768-74DONUT/SEAL - 2.5" exhaust manifold to pipe4.15
G0003G000368-82DRESSING - Calyx manifold conditioner, jar23.25
 G0056HOT STUFF - exhaust manifold dress15.99
 G015568-82DRESSING - Calyx manifold conditioner, chap stick type tube10.30
 B315968-74EXTENSION TUBE - injector pipe in exhaust manifold, 427/454 (8 req.)(ea.)102.50
 B316168-82EXTENSION TUBE - injector pipe in exhaust manifold, 327/350 (8 req.)(ea)21.80
A3122A312268-82FLANGE - 2" exhaust pipe9.45
A3134A313468-74FLANGE - 2.5" exhaust pipe, flat type11.50
B3138B313868-82FRENCH LOCK SET - exhaust manifold, 327/350, (SS)(4 pc.)27.48
B3139B313968-74FRENCH LOCK SET - exhaust manifold, 427/454, (SS)(4 pc.)20.89
A3156A315668-79GASKET - heat riser, 2"4.95
A3176A317668-74GASKET - heat riser, 2.5"4.95
 A310368-75GASKET SET - exhaust manifold to engine, 327/35011.95
 B316468-74GASKET SET - exhaust manifold, 427/454, (pr)15.25
B3118B311870-71MANIFOLD - exhaust, -350 exc hp-LH w/o airholes  CALL
 B311970-71MANIFOLD - exhaust, -350 exc hp-LH w/air holes, (comes w/plugs)139.95
 C319169-72MANIFOLD - exhaust, - 69-72 RH, 72 LH, 2", all w/350 #3932461, w/A.I.R. holes, pre-owned149.95
 B315168-71MANIFOLD - exhaust, - LH, 2", all w/350 #3872765, w/A.I.R. holes, preowned  CALL
 A314968-82NUT SET - exhaust manifold studs, brass, (6 pc.)5.95
A2922A292268-74NUT SET - exhaust manifold studs, lower, correct "top lock" design, (6 pc.)8.65
 B314968-80PLUG SET - emission holes in exhaust manifold, (8 pc.)19.55
 C314175-81RING - exhaust pipe to manifold sealing3.60
A3117A311768-74SLEEVE - exhaust donut alignment, 2"10.65
A3119A311968-74SLEEVE - exhaust donut alignment, 2.5"9.85
A3177A317768-74SLEEVE - exhaust donut alignment, 2" stainless steel14.00
 A317868-74SLEEVE - exhaust donut alignment, 2 1/2" stainless steel15.55
A3132A313268-74SPACER - 2.5", 427/454 exhaust manifold67.00
 A313668-79STUD & NUT KIT - exhaust manifold to exhaust pipe, (12 pc.)22.95
A3140A314068-82STUD & NUT KIT - exhaust man. to pipes, stainless steel, (12 pc.)39.60
C3119C311975-78SWITCH - exhaust heat valve actuator, ea33.95
 C690068-71TUBE ASSEMBLY (PIPES) - A.I.R., exhaust manifold (black), 427/454, LH85.00
 C690168-71TUBE ASSEMBLY (PIPES) - A.I.R., exhaust manifold (black), 427/454, RH85.00
C6902C690268-71TUBE ASSEMBLY (PIPES) KIT - A.I.R., exhaust manifold (black), 427/454, LH & RH, (pr)  CALL
 B700175-76TUBE ASSEMBLY (PIPES) - A.I.R., air injector, exhaust manifold, 327, 350 LH103.45
 B700268-76TUBE ASSEMBLY (PIPES) - A.I.R., air injector, exhaust manifold, 327, 350 RH40.65
 C703572-74TUBE ASSEMBLY (PIPES) - A.I.R., air injector, mounts to exhaust manifold, 454, LH  CALL
 C690372-74TUBE ASSEMBLY (PIPES) - A.I.R., air injector , mounts to exhaust manifold, 454, RH90.55
 C703777-80TUBE ASSEMBLY (PIPES) - A.I.R., air injector, mounts to exhaust manifold, RH129.40
 C703878-79TUBE ASSEMBLY (PIPES) - A.I.R., air injector, w/Calif. or hi-altitude61.60
 C690472-74TUBE ASSEMBLY KIT - A.I.R., air injector mounts to exhaust manifolds, 454, (pr)  CALL
A3128A312868-74VALVE - heat riser, 2" exhaust84.37
A3130A313068-74VALVE - heat riser, 2.5" exhaust93.15
C3588C358875-79VALVE - heat riser, w/stock exhaust89.95
A3116A311668-80WASHER SET - exhaust manifold bolts, (8 pc.)12.19
