1968-82 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, FUEL PUMPS, HEADS, IGNITION SHIELDING, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Fuel System: Carburetors, Parts, Kits, Fuel Filter, Lines, Filters & Fuel Injection Arrow Fuel System: Carburetors - Holley Tri-Power Components & Related - 3X2

Fuel System: Carburetors - Holley Tri-Power Components & Related - 3X2

Diagrams:


Holley Center Carburetor Assembly Diagram Thumbnail
Holley Center Carburetor Assembly
(click to enlarge)

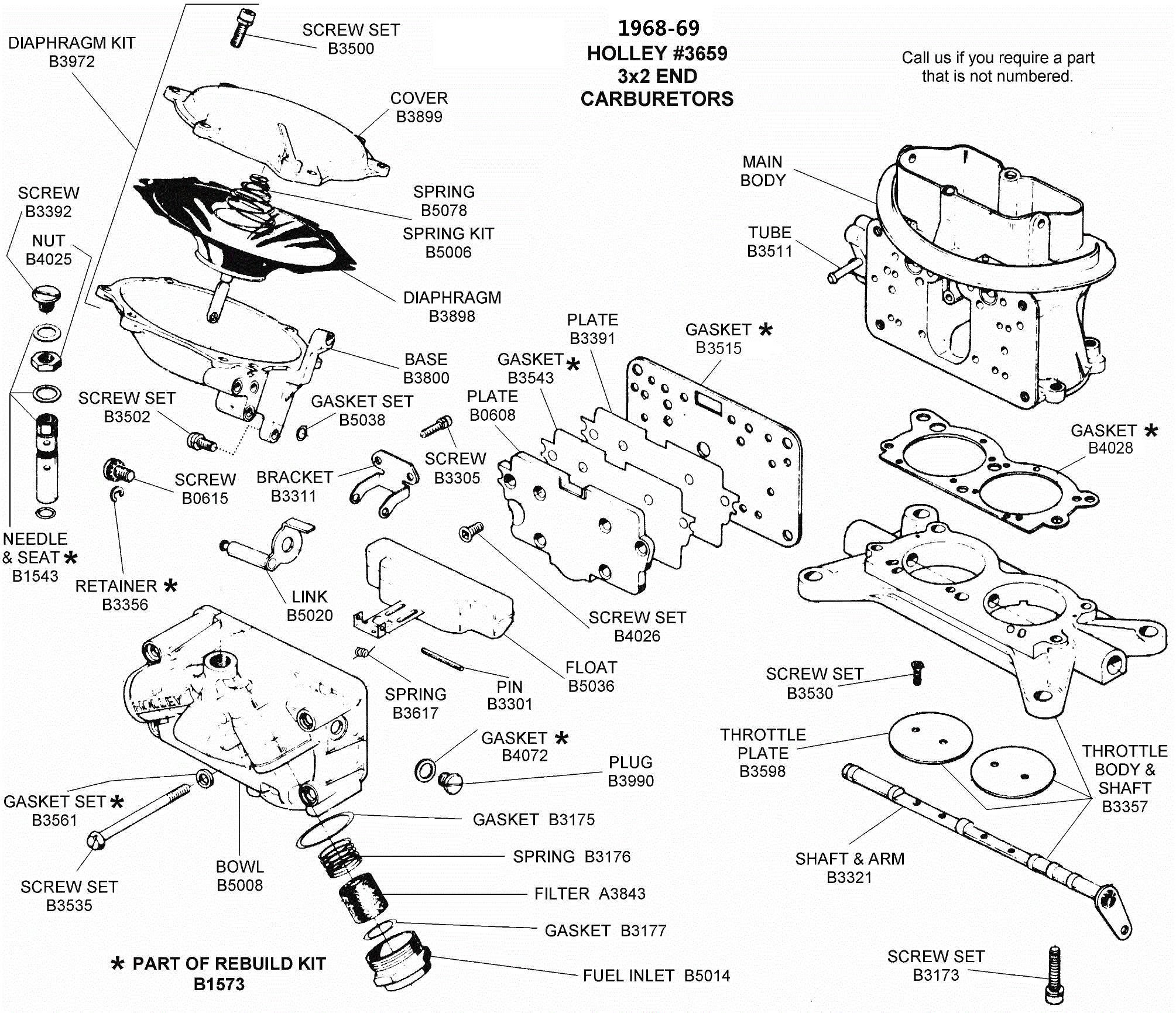

Holley End Carburetor Assembly Diagram Thumbnail
Holley End Carburetor Assembly
(click to enlarge)


B3307B330768-69BAFFLE - metering block vent4.75
B3800B380068-69BASE - secondary diaphragm, Holley #365989.95
 C387668-69BASE PLATE ASSEMBLY - throttle body, w/shaft, Holley #4055, 4056, 3x2 center carburetor, used  CALL
 C3853N68-69BOWL - center carburetor, Holley #4055, 4055-1, 4056 & 4056-1 w/vent provision,169.95
C3853C385368-69BOWL - center carburetor, Holley #4055, 4056, w/vent, reconditioned original139.95
 B5008U68-69BOWL - end carburetor, 3x2, Holley #3659, used replacement/has slightly higher site plug149.95
 B402368-69BOWL SCREW & GASKET SET - 8pc/does 1 3659 Holley 2 barrel7.95
B3311B331168-69BRACKET - float, in fuel bowl1.85
 B373768-69BUSHING KIT - tri power linkage, 2 bushings, special bolt & locking nut/used at center pivot point16.95
A3746A374668-69BUSHING & INSERT KIT - accelerator rod8.95
B3531B353167BUSHING SET - throttle shaft, to repair worn out throttle shaft holes in base plate, may require reaming of base, brass, (2 pc.)6.00
B3889B388968-69CAGE/LEVER - fast idle plastic cam21.95
B3315B331568-69CAM - accelerator pump on throttle shaft arm, Holley #4055, red plastic4.95
B3560B356068-69CAM - accelerator pump on throttle shaft arm, Holley #4056, white plastic4.95
 B388768-69CAM/ACTUATOR - choke, plastic, RH side of carburetor on stud22.95
B3647B364768-69CAM KIT - accelerator pump, on throttle shaft arm, allows custom Tailoring of accelerator pump response, (8 different profiles & colors)30.95
 B5012K68-69CHOKE KIT/UPPER - all TRI-POWER center carburetors, 4055, 4055-1, 4056 & 4056-1, choke cross shaft, butterfly & screw set, 4pc, RH side of carburetor32.95
B3968B396868-69CHOKE KIT - 4055, 4055-1, 4056, 4056-1 Holley's, 15 pc/top and RH side of carburetor, including choke pull off with straight pipe149.95
B3888B388868-69CHOKE PULL-OFF - center carb #4055, 405669.95
B4032B403269-69CHOKE PULL OFF KIT - includes original design choke pull off with curved pipe, choke pull off link and installation screws 76.95
B3608B360868-69COVER - accelerator pump (30 cc), w/beveled screw holes for tapered clutch head screw set #B377234.95
B3570B357068-69COVER - accelerator pump (30 cc), for use w/Phillips non-tapered screw set #B376715.95
B3899B389968-69COVER - secondary diaphragm, all tri-power end carburetor, Holley #3659  CALL
B3898B389868-69DIAPHRAGM - carburetor, secondary, all w/ 3x2, Holley #365948.95
B3972B397268-69DIAPHRAGM KIT - secondary, includes diaphragm, base, cover, spring, link, gasket set, retainer & all required screws, (1 kit req. per #3659 carburetor)199.95
A3843A384368-69FILTER - fuel, bronze, behind fuel inlet nut, (1 req. per carb.)7.95
 A3843368-69FILTER KIT/3PC - fuel, bronze, behind fuel inlet nut, for one set of Holley Tri power carburetors16.95
 B317068-69FITTING - accelerator pump adjusting on lever3.25
B5014B501468-69FITTING - fuel inlet, Holley 3x2 carburetor, 3/8" inlet size, 1" wrench9.95
 B507068-69FUEL INLET FITTING - Holley #3659, 4055, 4055-1, 4056, 4056-1, large inlet, 3/8" female 13/16" wrench10.50
B5014BEB5014BE68-69FUEL INLET FITTING - Holley #3659, 4055, 4055-1, 4056, 4056-1, large inlet, 3/8" , extended threads, brass13.75
B3779B377968-69FITTING - vacuum, connects 2 tri-power end carbs to center carburetor, "T" shape2.95
B5012B501268-69FLAP/PLATE - choke13.95
B5036B503668-69FLOAT - carburetor, all #3659, 3x2, end20.85
B5037B503768-69FLOAT - carburetor, all #4055, 4056, 3x2, center16.95
B5030B503068-69FLOAT KIT - Holley tri power carburetor set, 1 center and 2 end carburetor floats54.95
B3568B356868-69FUEL INLET KIT - 1 tri power carburetor / 5pc, 1 each: fuel inlet fitting, fuel filter & spring and large & small gaskets12.95
 B5014BX68-69FUEL INLET FITTING KIT- Holley #3659, 4055, 4055-1, 4056, 4056-1, large inlet, 3/8" , extended threads, brass, 3PC-does 3 carburetors...32.95
B3175B317568-69GASKET - fuel inlet, large, aluminum, rubber coated1.65
B3177B317768-69GASKET - fuel filter, small1.10
 B402869-69GASKET - main body to base plate, Holley end 3x2'S, 3659'S4.50
B4076B407668-69GASKET - main body to base plate, center carburetor, 3660 & 38883.65
B3543B354368-69GASKET - metering plate (die cast) to metering plate, steel2.65
B4070B407068-69GASKET - power valve1.35
B0162B016268-69GASKET SET - carburetors to air cleaner, (3 pc.)14.95
B3541B354168-69GASKET SET - bowl to metering block, (2 pc.)3.50
B3152B315268-69GASKET SET - fuel bowl screws, nylon/black, (8 pc.)4.95
 0303K68-68GASKET SET - bowl screws, original material, 20 piece8.95
Z4076Z407668-69GASKET SET - 3x2 carburetor bodies to base plate, (3 pc.) 9.95
B0606B060668-69GASKET SET - 3x2 carburetors to intake, (3 pc.)10.95
B3561B356168-69GASKET SET - fuel bowl screws, fiber/black, as original, (8 pc.)4.35
B3862B386268-69GASKET SET - idle air screws, (2 pc.)1.75
B3515B351568-69GASKET SET - metering block to main body, (2 pc.)2.95
B3162B316268-69GASKET SET - needle & seat, (4 pc./2 pr.)8.95
B4074B407468-69GASKET SET - nozzle squirter, Holley #4055, 4056, (2 pc.)1.65
B5038B503868-69GASKET SET - secondary diaphragm housing base to #3659 carburetor body, (2 pc.)1.95
B4072B407268-69GASKET SET - sight plugs, (2 pc.)1.65
B3544B354468-69GASKET SET - steel metering plate to main body, (2 pc.)3.25
B5015B501568-69GUIDE - choke rod, 3x2 center carburetor, white plastic2.05
B2565B256568-69HOSE - w/white strip, 7", vacuum pull off to base plate/CORRECT5.95
B3650B365068-69HOSE KIT - tri-power carbs, end carburetors to center, & choke pull-off, w/"T" fitting10.65
B2407B240768-69INK STAMP KIT - Holley carburetor number, list & inspection (specify Holley list # & production date)26.95
B3654B365468-69INSTALLATION KIT - needle & seat, 10pc16.95
B3583B358368-69INSULATOR KIT - 3 TRI POWER CARBS to intake manifold..includes 3 1/4" phenolic insulators, 12 studs with lock washers & nuts and 6 installation gaskets159.95
B3634B363468-69JET SET - Holley #4055, (pr)7.95
 C362168-69JET SET - Holley #4056, (pr)7.95
B3894B389468-69LEVER - accelerator pump, on stud5.95
B3877KB3877K68-69LEVER ASSEMBLY - accelerator pump on stud, lever, bolt, nut & spring/4pc9.95
B4075B407568-69LEVER - accelerator pump cover2.95
B3890B389068-69LEVER - choke control, screws to throttle shaft, contacts plastic cam, RH22.95
B3895B389568-69LEVER/ARM - bowl vent, Holley #4055, 4056 [BEND @ VENT STEPS UP]19.95
B3891B389168-69LINK - fast idle cam cage to choke pull-off7.45
B5020B502068-69LINK - secondary diaphragm, on throttle shaft, RH, each21.95
B5085B508568-69LINK & SCREW SET - link on end of throttle shaft w/screw, all end carburetors, 2 of each, 4pc 39.95
 B352468-69METERING BLOCK - front, Holley #405570.95
 B351668-69METERING BLOCK - front, Holley #405681.95
B3652B365268-69METERING BLOCK - front, Holley #4055, stamped #5062149.95
 B365368-69METERING BLOCK - front, Holley #4056, stamped #5257149.95
N1519N151968-69ALL METERING PLATE REMOVAL TOOL - clutch head / to remove metering plate at rear of carburetor on body inside bowl/HOLLEY LIST 365919.95
B1543B154368-69NEEDLE & SEAT SET - w/adjustable float, (ea)9.95
B4091B409168-69NEEDLE & SEAT - adjustable float BORG WARNER design for HOLLEY carburetor, brass body & nut only design13.95
B4033B403368-69NEEDLE & SEAT SERVICE KIT - 2 installation gaskets, 0 ring, locking nut & screw, 5pc7.25
 B331868-69NEEDLE VALVE - pump discharge nozzle2.25
 B331368-69NOZZLE - pump discharge11.45
 B373968-69*0* RING - needle & seat1.00
 B402568-69NUT - needle & seat height locking1.85
 B330168-69PIN - float to bracket1.65
B060868-69PLATE - fuel metering, Holley #3659 secondary carburetor, die cast39.95
B3391B339168-69PLATE - fuel metering, thin steel, between die cast metering plate & carb. body, Holley #36596.25
 B359868-69PLATE SET - throttle shaft, Holley #3659, aluminum, (2 pc.)70.25
 B365168-69PLATE SET - throttle shaft, Holley 3x2 center carburetor, (2 pc.)16.95
B3551B355168-69PLUG - metering block wells, 1/4", all Holley carburetors1.45
B3551KB3551K67-69 PLUG KIT - metering block wells, 1/4", all Holley carburetors, 10PC7.45
B3990B399068-69PLUG/SCREW - fuel bowl, to check fuel level2.85
B3681B3681POWER VALVE - Holley metering block 1.09.95
B4079B407968-69POWER VALVE - Holley #4055, 4056, metering block7.95
B3507B350768-69PUMP - accelerator (30 cc)8.95
 B364668-69RETAINER - accelerator pump arm to cover1.25
B3896B389668-69RETAINER - bowl vent lever, original style6.25
B3896UB3896U68-69RETAINER - bowl vent lever, replacement6.95
 B317468-69RETAINER/"E" CLIP - accelerator pump lever, choke cam & cage shaft1.55
 B335668-69RETAINER/"E" CLIP - secondary diaphragm rod to link1.25
 B502168-69ROD - choke shaft to choke plastic cam cage/lever14.95
 B317268-69SCREW - accelerator pump adjusting on lever4.25
 B335468-69SCREW - air/fuel mixture3.75
 B331768-69SCREW - accelerator pump cam retainer, on accelerator lever1.55
 B332568-69SCREW - bowl vent lever retainer1.25
 B376968-69SCREW - fast idle1.65
 B3883S68-69SCREW - fuel bowl, 2.0" length, for 3659, ea3.15
 B407868-69SCREW - fuel bowl, 2.5" length, 4055, 4055-1, 4056, 4056-1 (ea)2.95
B0615B061568-69SCREW - lever to throttle shaft, RH side, (ea)1.65
 B339268-69SCREW - needle & seat height adjusting1.95
 B330968-69SCREW - pump discharge nozzle1.95
 B376768-69SCREW SET - accelerator pump (30 cc) cover, Phillips head, 3/8" long, used on B3570 cover, (4 pc.)3.65
B3572B357268-69SCREW SET - accelerator pump (30 cc) cover, tapered clutch head, 3/8" long (4 pc.), used on cover B36086.75
 B361268-69SCREW SET/BOWLS - 4 2.5' long & 8 2" short/does one tri power carburetor set/12pc12.95
 B387268-69SCREW SET - choke flap, (2 pc.)1.95
 B395768-69SCREW SET - choke pull-off retaining, (2 pc.)3.25
 B330568-69SCREW SET - float bracket retaining, (2 pc.)1.85
 B353568-69SCREW SET - fuel bowl, Holley #3659, current design, 2.0", (4 pc.)9.00
 B388368-69SCREW SET - fuel bowl, Holley #4055, 4056, current design, 2.5", (4 pc.)7.95
B4026B402668-69SCREW SET - metering plate to main body, Holley #3659, clutch head, (6 pc.)7.25
 B353068-69SCREW SET - throttle plates to shaft, phillips head, 8 pc 4.50
 B358468-69SCREW SET - throttle shaft plates to shaft, Holley, slotted head, 8 pc5.75
 B350268-69SCREW SET - vacuum secondary diaphragm base to Holley #3659 carburetor body, (4 pc.)5.25
 B350068-69SCREW SET - vacuum secondary diaphragm cover to base, Holley #3659, (6 pc.)3.95
B3480B348068-69SEAL - bowl vent, rubber, snaps into bowl vent lever1.85
B3884B388468-69SHAFT - choke flap/plate21.25
 B332168-69SHAFT ASSEMBLY - throttle, w/lever, Holley #3659 / USED79.95
 B317168-69SPRING - accelerator pump adjusting on lever2.75
 B335568-69SPRING - accelerator pump diaphragm1.65
 B362168-69SPRING - bowl vent lever, Holley #4055, 40564.95
 B395368-69SPRING - fast idle screw1.95
 B361768-69SPRING - float2.45
B3176B317668-69SPRING - fuel filter, in front bowl2.95
 B507868-69SPRING - secondary diaphragm, as original, Holley #36594.50
 B354568-69SPRING - secondary diaphragm, Holley #3659, hi-perf. for quicker secondary response4.50
B3768B376868-69STUD - accelerator pump lever, on base plate, LH front2.50
 B353868-69STUD - choke cam & cage, presses into main body, RH19.95
 B352868-69TUBE - bowl vent air horn, front, short, (angle cut)2.85
 B351168-69TUBE - vacuum hose on RH side, all 3x2 carbs/base 3x2 centers4.65
