1968-82 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, FUEL PUMPS, HEADS, IGNITION SHIELDING, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Ignition System Arrow Ignition: Distributor - 1975-82 HEI & Related

Ignition: Distributor - 1975-82 HEI & Related

Diagrams:


1978-82 HEI Distributor Diagram Thumbnail
1978-82 HEI Distributor
(click to enlarge)

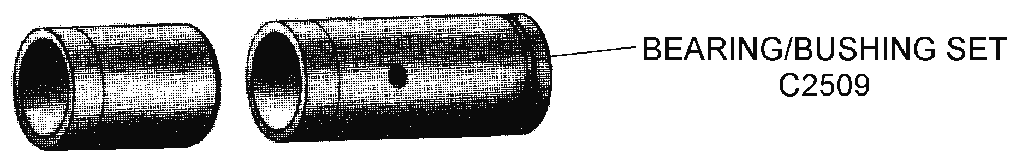

Bearing / Bushing Set Diagram Thumbnail
Bearing / Bushing Set
(click to enlarge)


 C252981-82BLOCK - distributor terminal, module to elec. package24.25
 C253175-82BLOCK & CAPACITOR - distributor terminal15.40
 C251075-82CAP - distributor, HEI11.50
C2530C253075-80CAPACITOR - distributor17.00
C2555C255575-81COIL - distributor29.95
 C254682COIL - distributor64.95
 C254475-82COVER - distributor cap9.70
A2547A254775-82GASKET - distributor to intake2.95
A2590A259075-82GEAR - distributor, lower24.95
C2554C255475-80MODULE - distributor29.95
C2532C253281MODULE - distributor44.95
C2533C253382MODULE - distributor79.95
 C255675-80POLE PIECE - pick-up coil, magnetic39.95
 C253481POLE PIECE - pick-up coil, magnetic39.95
 C253582POLE PIECE - pick-up coil, magnetic50.85
C2508C250875-82RING - HEI spark plug wire separator cap retainer7.65
 C255375-82ROTOR - HEI distributor8.75
C2547C254775-82SCREW - ignition coil mounting1.30
C2543C254375-82SCREW - distributor rotor2.15
 C254575-82SCREW - distributor cap cover2.30
 C254975-82SEAL - under coil17.95
 C251275-82SHIM PACK - HEI distributor lower gear5.85
 C254075-82SPRING & WEIGHT KIT - distributor12.95
 C258475-82TUNE-UP KIT - cap, rotor, coil & coil cover59.95
