1968-82 Arrow ENGINE ASSEMBLY & COMPONENTS: AIR CLEANERS, ALTERNATORS, BLOCKS, CARBURETORS, DISTRIBUTORS, FUEL PUMPS, HEADS, IGNITION SHIELDING, STARTERS, VALVE COVERS, WATER PUMPS & MORE Arrow Ignition System Arrow Ignition: Radio Ignition Shielding - 327/350 Engine

Ignition: Radio Ignition Shielding - 327/350 Engine

Diagrams:


1968-70 Ignition Shielding Diagram Thumbnail
1968-70 Ignition Shielding
(click to enlarge)

1971-77 Ignition Shielding Diagram Thumbnail
1971-77 Ignition Shielding
(click to enlarge)

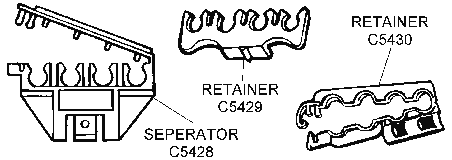

Retainers and Separators Diagram Thumbnail
Retainers and Separators
(click to enlarge)


A5449A544968-82BOLT SET - 4 heat shields above spark plugs 6pc9.65
C5403C540368-70BOX & LID - distributor cover77.60
B5482B548268-74BRACKET - coil mounting, w/o 3x226.85
K0168K016868-79BRACKET - lower inner shields, LH5.95
K0170K017068-79BRACKET - lower outer shields, RH6.00
 K016968-79BRACKET - lower inner shields, straight5.95
 C541468-77BRACKET - rear lower ignition support, LH10.20
C5407C540768-74BRACKET - top ignition shield, LH26.25

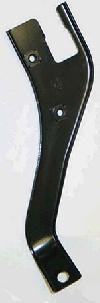

C5408C540868-74BRACKET - top ignition shield, RH23.50
C5409C540975-77BRACKET - top ignition shield, LH16.90

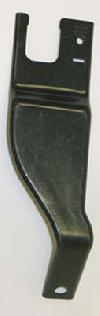

C5410C541075-77BRACKET - top ignition shield, RH18.25
 B543368-70EBRACKET KIT - lower horizontal ignition shielding, (8 pc.)34.95
B5434B543468-70EBRACKET KIT - lower horizontal ignition shielding, stainless steel, (8 pc.)35.75
C5426C542673-79BRACKET SET - spark plug shielding, stainless steel, (4 pc.)18.65
C5411C541170L-79BRACKET SET - rear lower ignition shield, (4 pc.)9.95
A5450A545068-82CLIP/SUPPORT - spark plug wire, on oil pan, (2 req.)(ea)6.25
A5452A545268-74CLIP/SUPPORT - spark plug wire, on block, (2 req.)(ea)6.25
 C540075-82CLIP/SUPPORT - spark plug wire on block, right rear4.00
 C541577-82COVER - ignition shielding top, (black plastic)79.95
 C540468-70ECOVER/LID - distributor top shield28.45
C5405C540570L-74COVER/LID - distributor top shield, (show quality)59.15
C5406C540675-77COVER/LID - distributor top shield49.00
C5427C542778-82COVER/LID - ignition shield top, (chrome).49.80
A5448A544868-74GROMMET - spark plug wire, (oval)(ea)3.25
B5462B546268-74GROMMET - spark plug wire, (square)4.90
B5457B545768-70EGROMMET - rear top shield4.50
C5440C544075-77GROMMET - spark plug wires, square for 8mm wire4.95
 B541868-74NUT - ignition shield, RH vertical, "J" type1.75
C5429C542976-82RETAINER - spark plug wire, 4 wire, slip on12.95
C5430C543076-82RETAINER - spark plug wire, 4 wire, slip on, w/lock top2.80
C5428C542877-79RETAINER - spark plug wires, 4 wire slip-on w/lock3.00
 B540068SCREW SET - coil bracket mounting, "RBW", headmark, (pr)9.00
B5477B547768-69SHIELD - heat, spark plug wires, LH lower block, "U" boomerang, for #1 & #3 spark plug wires103.00
B5478B547868-69SHIELD - heat, spark plug wires, RH lower block, "U" boomerang for #2 & #4 spark plug wires103.00
 C549870-79SHIELD - heat, spark plug wires, LH lower block, "U" boomerang, for #1 & #3 spark plug wires70.00
 C549970-79SHIELD - heat, spark plug wires, RH lower block, "U" boomerang for #2 & #4 spark plug wires 70.00
A5456A545668-79SHIELD - heat, spark plugs, RH rear12.00
A5458A545868-79SHIELD - heat, spark plugs, 68-82 RH front & 68-76 LH rear12.00
 C544968-76SHIELD - heat, spark plugs, front w/hole, LH22.95
C5413C541368-77SHIELD - vertical ignition, LH60.30
C5412C541268-77SHIELD - vertical ignition, RH60.30
B5485B548568SHIELD - lower ignition, LH, front60.95
C5418C541869-73SHIELD - lower ignition, RH, front45.50
C5417C541768-79SHIELD - lower ignition, LH, rear47.10
C5419C541968-69SHIELD - lower ignition, RH, rear47.10
C5420C542070-79SHIELD - lower ignition, RH, rear37.20
C5416C541669-74SHIELD - lower ignition, LH, front51.80
 C543668-70SHIELD - top shield, lower box w/clip for distributor79.95
 C542168-69SHIELD KIT - heat, spark plug & wires152.00
 C542270-75SHIELD KIT - heat, spark plug & wires  CALL
 C544568SHIELD KIT - lower (4 pc) ignition set, w/brackets & wing nuts192.35
 C544669-70ESHIELD KIT - lower (4 pc) ignition set, w/brackets & wing nuts159.95
 C544470L-73SHIELD KIT - lower (4 pc) ignition set, w/brackets & wing nuts98.75
 B549968-77SUPPORT - rear, spark plug wires, mounts to block, RH lower12.95
 C299478-82TIE STRAP - top shield to hood cable, (2 req.)(ea)1.50
A5446A544668-79WING NUT - ignition shield, (ea)2.70
