Ignition: Radio Ignition Shielding - 427/454 Engine

Diagrams:


Spark Plug Wire Bracket Diagram Thumbnail
Spark Plug Wire Bracket
(click to enlarge)

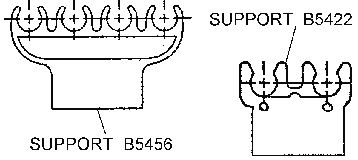

Supports Diagram Thumbnail
Supports
(click to enlarge)

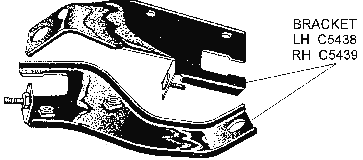

Top Ignition Shield Brackets Diagram Thumbnail
Top Ignition Shield Brackets
(click to enlarge)


B5441B544168-74BOLT SET - coil bracket, "E" hm7.15
 C543468-70BOX & COVER - distributor top w/o 3x291.70
C5435C543568-69BOX & COVER - distributor top w/3x2139.95
C5442C544268-70BOX/SHIELD - top shield lower box for distrib., 1x4 w/clip installed88.35
C5443C544368-69BOX/SHIELD - top shield lower box for distrib., 3x2 w/clip installed95.15
B5482B548268-74BRACKET - coil mounting, w/o 3x226.85
B5453B545368-69BRACKET - coil mounting, w/3x232.85
 C543868-74BRACKET - top ignition shield, LH15.55
C5439C543968-74BRACKET - top ignition shield, RH15.55
C5431C543169L-74BRACKET - spark plug wire, RH, w/427-454, bolts to RH outer valve cover bolt, stamped steel, rubberized coating24.95
A5450A545068-82CLIP/SUPPORT - spark plug wire, on oil pan, (2 req.)(ea)6.25
A5452A545268-74CLIP/SUPPORT - spark plug wire, on block, (2 req.)(ea)6.25
 C540468-70ECOVER/LID - distributor top shield28.45
C5405C540570L-74COVER/LID - distributor top shield, (show quality)59.15
B5457B545768-69GROMMET - 427 top shield rear, (round)(ea)4.50
B5462B546268-74GROMMET - spark plug wire, (square)(ea)4.90
 B549068-74NUT SET - spark plug wires to bracket, grounding1.20
 B545268-74SCREW - coil bracket to secure coil, 427/4541.30
 B540068SCREW SET - coil bracket mounting, "RBW", headmark, (pr)9.00
 C542370-74SHIELD - heat, 454 spark plug, barrel style, (8 req.)(ea)5.95
B5422B542268-74SUPPORT - spark plug wire retainer, LH & RH, front valve cover, w/stand 427/454, (2 wire)(ea.)4.25
B5456B545668-74SUPPORT - spark plug wire retainer, on valve cover, 427/454 (4 wire)(ea.) w/stand4.25
A5446A544668-74WING NUT - ignition shield, (ea)2.70
