1968-82 Arrow ENGINE COMPARTMENT Arrow Seals

Seals

Diagrams:


1968-82 Inner Fender Area Seals Diagram Thumbnail
1968-82 Inner Fender Area Seals
(click to enlarge)

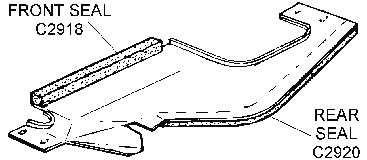

Front and Rear Seal Diagram Thumbnail
Front and Rear Seal
(click to enlarge)

Seals and Seal Sets Diagram Thumbnail
Seals and Seal Sets
(click to enlarge)

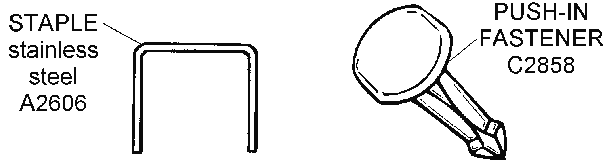

Staple and Fastener Diagram Thumbnail
Staple and Fastener
(click to enlarge)


C2916C291668-81BOOT/SEAL - clutch rod, on firewall13.95
C2990C299068-72BRACKET - splash & heat shield mount10.70
C2858C285868-78FASTENER - engine compartment seals, push-in type22.60
C2904C290468L-82FLAP KIT - A-arm, w/push-in fastener, (pr)19.00
C2902C290268EFLAP KIT - A-arm, w/staples, (pr)19.00
C2821C282168SEAL - air dam, 32726.50
C2877C287768-69ESEAL - air dam, radiator support to hood, 42722.25
C2878C287869SEAL - air dam, 3506.25
C2879C287970-71SEAL - air dam, 70 350, 70-71E LT1, set12.40
C2896C289671-72SEAL - air dam, 71L-72 LT1, (2 PIF)22.80
C2881C288171SEAL - air dam, 350, (2 PIF)22.80
C2882C288272SEAL - air dam, 350, (2 PIF)22.80
C2883C288369-71SEAL - air dam, 69 L88, 70 ZR1, 71 LS6 & ZR1 & ZR241.20
C2884C288469ESEAL - air dam, 4279.35
C2885C288569LSEAL - air dam, 427, (2 PIF)12.40
C2886C288670SEAL - air dam, 45417.50
 C288771SEAL - air dam, 454, (2 PIF)22.80
C2888C288872SEAL - air dam, 454, (2 PIF)22.25
C2890C289073SEAL - air dam, all, (2 PIF)25.95
C2891C289174-75SEAL - air dam, all, (2 PIF)22.70
C2892C289276-78SEAL - air dam, 76-77 all, 78 L48, set, (2 PIF)15.55
C2893C289378-79SEAL - air dam, 78 L82, 79 all, set, (2 PIF)15.55
C2894C289480-81SEAL - air dam, all, set19.70
C2895C289582SEAL - air dam, all, set17.60
C2934C293468-72SEAL - fan shroud, lower u shaped, attaches w/staples23.30
C2936C293668-72SEAL - fan shroud upper, steel shroud6.95
 C293868SEAL - fan shroud, plastic, upper8.35
 C285768ESEAL - lower grille panel18.70
C2914C291468-72SEAL - lower grille/baffle panel20.60
C2918C291868-70SEAL - radiator lower baffle, front7.10
C2920C292068-70SEAL - radiator lower baffle, rear6.95
C2856C285668-69ESEAL - radiator support, bottom edge16.40
C2922C292268SEAL - radiator support to hood, 32722.00
C2924C292469L-71SEAL - radiator support to hood, 35023.35
C2962C296269-72SEAL - radiator support to hood, 427/45420.70
B2928B292868-82SEAL - wiper motor, to firewall5.95
C2912C291268-72SEAL KIT - bumper brace, front, (pr)11.00
C2859C285973-79SEAL KIT - bumper brace, front, (pr)10.30
C2942C294269-72SEAL KIT - fan shroud, plastic, (4 pc.) 35021.00
C2944C294469-72SEAL KIT - fan shroud, plastic, (4 pc.) 427/45419.95
C2946C294670-72SEAL KIT - fan shroud, plastic, (4 pc.) LT119.95
C2948C294873SEAL KIT - fan shroud, plastic, (4 pc.)23.35
C2950C295074-76ESEAL KIT - fan shroud, plastic, (4 pc.)21.00
C2855C285569-72SEAL KIT - fan shroud, HD radiator23.35
C6477C647768-82SEAL KIT - inner fender, lower, (2 pc.)26.50
C2823C282369ESEAL KIT - radiator support, before 12/12/68, (4 pc.)26.40
C2963C296369L-72SEAL KIT - radiator support, LT1, (4 pc.)(5 PIF)24.15
C2964C296473SEAL KIT - radiator support, 350/454, (4 pc.)(7 PIF)23.35
C2965C296574-75SEAL KIT - radiator support, w/o AC, 350/454, (4 pc.)(7 PIF)20.70
C2966C296674-75SEAL KIT - radiator support, w/AC, 350/454, (5 pc.)(7 PIF)20.70
C2967C296776ESEAL KIT - radiator support, w/o AC or L82, (5 pc.)(7 PIF)20.70
C2968C296876ESEAL KIT - radiator support, w/AC or L82, (5 pc.)(7 PIF)20.70
C2959C295976L-78SEAL KIT - radiator support, w/o AC, L82 or HD, (4 pc.)(2 PIF)20.60
C2870C287076L-78SEAL KIT - radiator support, w/AC, L82 or HD, (4 pc.)(2 PIF)20.60
C2871C287179-80SEAL KIT - radiator support, w/o AC, L82 or HD, (4 pc.)20.60
C2873C287379-80SEAL KIT - radiator support, w/AC, L82, HD, (4 pc.)25.75
C2928C292868SEAL KIT - radiator support, (4 pc.), 42720.70
C2926C292668SEAL KIT - radiator support, (5 pc.), 32723.35
C2930C293069L-72SEAL KIT - radiator support w/o LT-1, 35023.35
C2993C299368-69SHIELD - heat, attaches of frame under floor pan, (2 req.)(ea)29.00
A2606A260668-82STAPLE SET - engine compartment seal, (SS)(25 pc.)6.25
