Diagrams:

Chrome Covers
(click to enlarge)

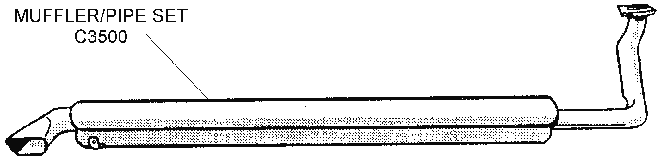

Muffler / Pipe Set Diagram Thumbnail

C3292	69	ATTACHING KIT - rear muffler to frame, incl. all nuts/bolts/grommets (14 pc.)	107.25
C3290	69	BRACE - side exhaust shield, front LH	68.75
C3291	69	BRACE - side exhaust shield, front RH	68.75
C3276	69	BRACKET - side exhaust mount, rear LH	37.32
C3275	69	BRACKET - side exhaust mount, rear RH	37.32
C3219	69	BRACKET & HARDWARE KIT - side exhaust (C3475, C3275, C3675)	37.95
C3294	69	COVER - left front	424.95
C3295	69	COVER - right front	424.95
C3296	69	COVER - left center	485.95
C3297	69	COVER - right center	484.95
C3298	69	COVER - left rear	374.95
C3299	69	COVER - right rear	374.95
C3274	69	COVER ASSEMBLIES - w/side mount exhaust, chrome plated, as original/1 YEAR WARRANTY ON CHROME FINISH, (6pc)	3324.95
C3248	69	COVER ASSEMBLY - side exhaust, LH	1675.00
C3247	69	COVER ASSEMBLY - side exhaust, RH	1675.00
C3620	69	COVER SET - side exhaust, fiberglass reproduction, paint as you like, (pr)	595.00
C3278	69	INSULATOR - rear side exhaust pipe	5.80
C3595	69	INSULATOR - gray foam at rear kick-up/floor pan	7.95
C3575	69	INSULATOR - w/aluminum skin between frame & body reinforcement channel / temperature limit 177 degrees C, thermal conductivity .24	48.52
C3200	69	INSULATOR KIT - supports side covers / fiberglass, (pr)	1495.00
C3599	69	MUFFLER/PIPE - w/350, LH	374.95
C3589	69	MUFFLER/PIPE - w/350, RH	374.95
C3590	69	MUFFLER/PIPE - w/427, LH, stainless steel	431.05
C3591	69	MUFFLER/PIPE - w/427, RH, stainless steel	431.05
C3500	69	MUFFLER/PIPE SET - LH & RH, w/mounting hardware, all 327/350, (pr)	905.20
C3594	69	MUFFLER/PIPE SET - LH & RH, w/mounting hardware, all 427/454, (pr)	905.20
C3055	69	MUFFLER/PIPE SET - 427, aluminized, (pr)	603.45
C3057	70-74	MUFFLER/PIPE SET - 454, LH & RH, (pr)	798.00
C8795	69	PLATE - transmission mount spacer, all w/side exhaust	12.52
C3580	69	SCREW KIT - side exhaust attaching #10 Phillips w/#8 flat head, black phosphate, (12 pc.)	14.95
