1968-82

Hood Cables, Catches, Fastners, Hinges, Supports & Misc.

Diagrams:

1968-76 Hood Assembly
(click to enlarge)

1968-76 Hood Release and Related Diagram Thumbnail

1968-76 Hood Release and Related
(click to enlarge)

1977-82 Cables Diagram Thumbnail

1977-82 Cables
(click to enlarge)

1977-82 Hood Shim and Striker Diagram Thumbnail

1977-82 Hood Shim and Striker
(click to enlarge)

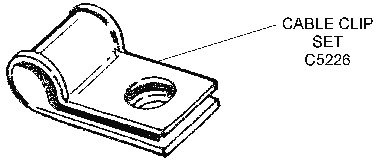

Cable Clip Set Diagram Thumbnail

Cable Clip Set
(click to enlarge)

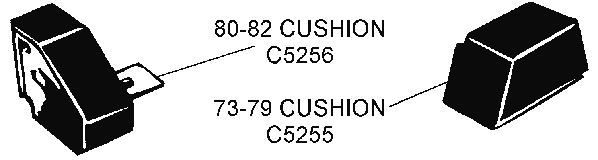

Cushions Diagram Thumbnail

Cushions
(click to enlarge)

Hood Assembly Diagram Thumbnail

Hood Assembly
(click to enlarge)

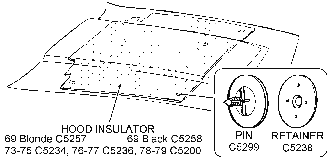

Hood Insulator Diagram Thumbnail

Hood Insulator
(click to enlarge)

C5207	73-76	BUMPER - hood, rear, anti-rattle, (ea)	3.25
A5210	68-76	BUMPER SET - hood stop bolt adjuster, rubber, (pr)	12.95
C5254	68-76	BOLT SET - hood lock, female	8.50
C5253	68-82	BOLT SET - hood support	5.95
C5252	68-82	BOLT SET - hood hinge / does 2 hinges (8pc)	6.95
A5270	68-76	BOLT/BUMPER KIT - hood adjusting, 2 bolts, 2 bumpers	9.35
C5232	74-79	BUMPER - hood stabilizer block, (ea)	4.80
C5241	77-82	BUMPER - hood (rubber) mounts on top of spring	2.85
C5214	68-76	CABLE - hood release, w/handle & bracket	49.95
C5228	68-76	CABLE & HANDLE- hood release, w/bracket, wire casing and hard wire as original	41.25
C5289	68-82	CABLE & HANDLE - hood release, reuse existing bracket	23.75
C5229	77-79	CABLE & HANDLE - hood release, w/bracket, plastic casing and hard wire as original	59.95
C5230	80-82	CABLE & HANDLE - hood release, w/bracket, plastic casing and hard wire as original	37.95
C5218	68E	CABLE - hood release, (on hood)	65.00
C5220	68L-69	CABLE - hood release, (on hood), 33", white casing	64.50
C5222	69-76	CABLE - hood release, (on hood), 31 3/4", black casing	58.50
C5225	77	CABLE - hood release, (on firewall), latch to latch	36.25
C5224	78-82	CABLE - hood release, (on firewall), latch to latch, black casing	44.95
C5277	68L-82	CLEVIS PIN KIT - hood release cable on hood, (6 pc.)	6.65
C5226	68-82	CLIP SET - hood release cable, (pr)	5.85
C5255	73-79	CUSHION SET - hood alignment bumpers, (4 pc.)	15.25
C5256	80-82	CUSHION SET - hood alignment bumpers, (4 pc.)	24.75
C2431	70E	DECAL SET - LT1 hood, black, (pr)	8.20
C2766	70L-72	DECAL - LT-1 hood, white	19.75
B2728	68-72	EMBLEM - hood number "2"	20.00
B2727	68-72	EMBLEM - hood number "4"	20.00
C2758	70-72	EMBLEM - hood number "5"	11.25
B2729	68-72	EMBLEM - hood number "7"	16.50
C2762	75-79	EMBLEM - hood, L-82	14.95
B2730	68-69	EMBLEM KIT - hood numbers, "427" (6 pc.)	42.95
C2749	70-72	EMBLEM KIT - hood numbers, "454" (6 pc.)	42.95
C2760	73-74	EMBLEM SET - hood, 454, (show quality)(pr)	69.25
C2764	73-79	EMBLEM SET - hood, L-48, same design as L82, not originally installed on hoods by factory, (pr)	24.95
C3334	68-72	GRILLE - big block hood, 427/454 LT1, LH	57.45
C3335	68-72	GRILLE - big block hood, 427/454 LT1, RH	57.45
C5298	73-76	GRILLE - hood		CALL
C5227	68-76	GROMMET - hood release cable in firewall	9.65
C5201	77-80	GROUND WIRE - hood lamp	9.35
C5202	68-82	HINGE - hood, LH	40.00
C5203	68-82	HINGE - hood, RH	40.00
C5273	68-82	HINGE SET - chrome, (pr)	153.85
C5295	68	HOOD SUPPORT	83.10
C5296	69-71	HOOD SUPPORT	57.59
C5290	72-73E	HOOD SUPPORT	75.45
C5291	73M-76	HOOD SUPPORT	75.45
C5292	77E	HOOD SUPPORT	70.00
C5210	77M-82	HOOD SUPPORT	88.19
C5258	69	INSULATOR/MAT - hood, (black color)	67.20
C5234	73-75	INSULATOR/MAT - hood, not molded	21.60
C5236	76-77	INSULATOR/MAT - hood, not molded	49.95
C5200	78-79	INSULATOR/MAT - hood, not molded	21.95
C5293	77-78	LATCH SET - on hood, stainless steel, w/stainless steel bolts, washers & shims	79.95
C5275	79-82	LATCH SET - on hood, stainless steel, w/stainless steel bolts, washers & shims	79.95
C5276	77-82	LIGHT - engine compartment, chrome	43.15
C5266	68-69	LOCK/LATCH - hood, on cowl, LH, used	72.50
C5268	70-76	LOCK/LATCH - hood, on cowl, LH	54.95
C5269	70-76	LOCK/LATCH - hood, on cowl, RH	49.95
C7986	68-72	MOUNT KIT - hood grille, 427/454/LT1, (4 pc.)	2.25
C7985	73-75	NUT SET - hood grille, (6 pc.)		CALL
B5207	68-71	PIN - hood support, prevents hood from closing in wind	15.65
C5223	68-76	PIN - male hood lock assembly	24.85
C5221	68-76	PIN ASSEMBLY - male hood lock	41.75
C5213	68-82	PLUG SET - hood release cable, (pr)	2.15
C5204	68-82	REINFORCEMENT - hood hinge/radiator support reinforcement, LH	72.45
C5205	68-82	REINFORCEMENT - hood hinge/radiator support reinforcement, RH	72.45
C5294	69-82	REINFORCEMENT PLATE - on upper hood ledge	3.45
A5217	68-71	REPAIR KIT - hood support, semi-tubular rivet & spring washer	12.00
C5238	68-79	RETAINER - hood insulator, metal, w/hole, slides over plastic retainer	3.85
A5114	68-76	RETAINER - male hood lock pin spring	6.59
C5216	68-80	RETAINER - cable w/screw & convertible front latch cable brass stop w/screw, brass, (ea)		CALL
C5240	73-79	RETAINER SET - hood insulator, chrome, (10 pc.)	92.35
B5236	68-80	RETAINER/GUIDE - hood cable, w/one screw, (pr)	5.95
A5118	68-76	SEAT - male hood lock spring	9.89
B5224	68-82	SHIM - hood hinge, 1/16" thick, (ea)	3.10
C5235	77-82	SHIM - hood latch striker	2.90
C3735	73-75	SOLENOID - hood air intake door	44.95
C5212	68-76	SPRING - female hood latch, (ea)	14.25
C5217	68-76	SPRING - male hood lock pin	7.50
C5219	77-82	SPRING - hood latch pop-up	8.95
C5263	68-76	SPRING - male hood lock, torsion, LH	9.35
C5274	77-82	SPRING SET - hood pump, chrome, (pr)	54.95
C2438	70E	STENCIL (hood paint) & DECAL KIT - LT1, (black)	120.40
C2440	70L-72	STENCIL (hood paint) & DECAL KIT - LT1, (white)	120.40
C5259	77-82	STRIKER - latch, on hood	26.70
C5299	68-79	STUD/PIN - hood insulator retainer, plastic, (glue to hood)(ea)	3.50
C5272	77-82	SUPPORT - hood, chromed	164.95
C8654	68-74	SWITCH - hood alarm warning	10.45
C8658	75-82	SWITCH - hood alarm warning	15.95
C5265	77-82	SWITCH KIT - under hood lamp, on/off	23.75
C2994	78-82	TIE STRAP - top shield to hood cable, (2 req.)(ea)	1.50
