1968-82 Arrow REAR END / DIFFERENTIAL Arrow Rebuild Kits & Parts

Rebuild Kits & Parts

Diagrams:

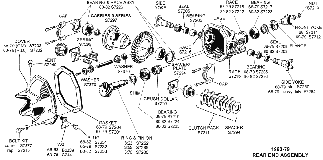

1963-79 Rear End Assembly Diagram Thumbnail
1963-79 Rear End Assembly
(click to enlarge)

1968-79 Rear End Rebuild Kits Diagram Thumbnail
1968-79 Rear End Rebuild Kits
(click to enlarge)

1980-82 Rear End Rebuild Kit Diagram Thumbnail
1980-82 Rear End Rebuild Kit
(click to enlarge)


 A721868-79BEARING - carrier, side, (2 req.)(ea)23.95
S7205S720568-79BEARING - side yoke, (2 req.)15.95
 S723680-82 BEARING - side yoke, (2 req.)18.95
S7219S721968-79BEARING - pinion, inner27.95
 S721768-79BEARING - pinion, outer25.75
 S722680-82BEARING & RACE ASSEMBLY - carrier, (2 req.)(ea)29.35
 S722480-82BEARING - pinion, inner13.65
 S722380-82BEARING - pinion, outer17.80
 B523268-79CARRIER - ring gear, non posi, 3 series, used75.00
 S735368CASE - rear end, original, w/correct casting dates & production codes395.00
 S735469CASE - rear end, original, w/correct casting dates & production codes395.00
 S735670CASE - rear end, original, w/correct casting dates & production codes395.00
 B728768-79CASE - rear end, used449.95
 S732480-82CASE - rear end / used, reconditioned, aluminum249.95
S7305S730580-82CLIP - for cross pin, "C" type, (2 req.)(ea)4.95
S7211S721168-79CLUTCH PACK - posi335.95
 S720780-82CLUTCH PACK - posi83.45
S7212S721268-79CROSS PIN - posi carrier41.45
S7229S722980-82CROSS PIN - posi carrier / DISCONTINUED52.95
S7210S721068-79CRUSH COLLAR/SPACER11.00
S7306S730668-79DEFLECTOR - rear end front yoke, press-in10.95
 S724168-82LUBRICANT - rear end, quart, (2 quarts req.)(ea.)6.75
S7242S724268-82LUBRICANT ADDITIVE - posi-traction rear end fluid16.95
 S721368-79NUT - pinion8.25
 S729768-79POSI CARRIER/CASE - 3 series (2:72 - 3:70 ratios)424.95
 S7297U68-79POSI CARRIER/CASE - 3 series, 3:08 - 3:70 ratios / used w/used internals 349.95
 S729868-79POSI CARRIER/CASE - 4 series (4:11 & up ratios), used549.95
 S732580-82POSI CARRIER/CASE195.00
 S722068-79RACE - pinion, inner9.65
 S721868-79RACE - pinion, outer9.95
 S722580-82RACE - pinion, inner7.05
 S722280-82RACE - pinion, outer18.95
 S721668-79RACE - side yoke, (2 req.)9.95
S7239S723968-79REBUILD KIT - non-posi rear end / bearings, races, seals & more - see chart137.95
 S721468-79REBUILD KIT - posi rear end / bearings, races seals, posi pack & more - see chart -all 68/79 with fine spline yoke 389.00
 S723780-82REBUILD KIT - rear end / bearing, races, seals & more - see chart216.75
 S729980-82REBUILD KIT - rear end / bearing, races, seals, posi-pack & more - see chart244.95
 S731568-79RESTORATION SERVICE - posi carrier, center pin hole repaired  CALL
 S727068-79RETAINER/SNAP RING - side yoke, (2 req.)(ea)1.00
S7293S729368-79SCREW & BOLT- posi carrier pin retainer16.45
 S720968-79SEAL - pinion, front13.95
S7206S720668-79SEAL - side yoke, (2 req.)(ea)8.75
 S720880-82SEAL - pinion, front16.85
 S723080-82SEAL - side yoke, (2 req.)(ea)9.95
 S7204K68-79SEAL KIT - rear end, 2 side yoke and 1 pinion seal, rear cover and drain plug gasket, 5pc27.95
 S7208K80-82SEAL KIT - rear end, 2 side yoke and 1 pinion seal, rear cover and drain plug gasket, 5pc46.95
 S732068-79SPACER - ring gear41.00
 S729468-79SPACER/PLATE - posi clutch11.75
S7240S724068-79VENT - differential5.90
S7355S735568-80VENT - differential, metal19.65
S7198S719868-79WASHER - behind pinion nut6.60
S7309S730968-70YOKE - rear end, front, fine spline99.00
 S731271-79YOKE - rear end, front, fine spline, reconditioned100.00
