1968-82 Arrow SUSPENSION - FRONT & REAR Arrow Front Suspension: Brake, Rotor & Spindle Related

Front Suspension: Brake, Rotor & Spindle Related

Diagrams:

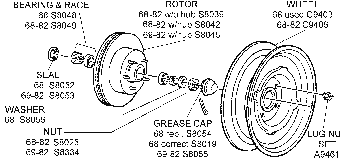

Rotor and Related Diagram Thumbnail
Rotor and Related
(click to enlarge)

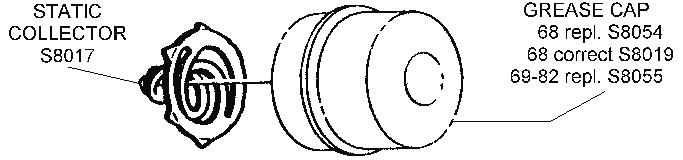

Static Collector and Grease Cap Diagram Thumbnail
Static Collector and Grease Cap
(click to enlarge)


S8046S804668-68BEARING KIT - front wheel (includes 1 each, inner & outer bearing w/races & inner seal)27.95
 S804769-82BEARING KIT - front wheel (includes 1 each, inner & outer bearing w/races & inner seal)28.95
 S804868BEARING w/RACE - front inner11.85
 S805068BEARING w/RACE - front outer12.50
 S804969-82BEARING w/RACE - front inner27.60
 S805169-82BEARING w/RACE - front outer12.00
 S700168-82BOLT - front brake splash shield, upper, caliper adapter bracket12.00
 S700068-82BOLT & NUT KIT - front spindle/knuckle, (8 pc.)6.95
 S804168-82BOLT SET - front caliper mounting, double circle headmark, (4 pc.)6.95
 B109868-82BRACKET - caliper mounting, front, LH, (reconditioned)69.95
 B109968-82BRACKET - caliper mounting, front, RH, (reconditioned)69.95
S8054S805468CAP - grease, front wheel6.95
 S805569-82CAP - grease, front wheel, (ea)5.20
S8019S801968CAP SET - grease, front wheel w/dimple, correct, (pr)17.65
S9375S937568-82FITTING KIT - grease, (8 pc.)8.90
 S803468-82GASKET - between front brake splash shield & spindle7.55
 S806168HUB - front rotor, (small bearing journal)(reconditioned)195.00
 S807169-82HUB - front rotor, reconditioned/original145.00
 S790868KNUCKLE - steering arm, LH, used, casting #3817593, recond.95.00
 S790968KNUCKLE - steering arm, RH, used, casting #3817594, recond.95.00
 S734569-75KNUCKLE - steering arm, LH, used, casting #3848877, recond.40.00
 S734669-75KNUCKLE - steering arm, RH, used, casting #3848878, recond.40.00
S7347S734776-82KNUCKLE - steering arm, LH, used, casting #465071, recond.42.95
 S734876-82KNUCKLE - steering arm, RH, used, casting #465072, recond.42.95
S8025S802568NUT & COTTER PIN - front spindle5.20
 S833469-82NUT, WASHER & COTTER PIN - front spindle, (3 pc.)6.10
 S806568NUT, WASHER & COTTER KEY KIT - spindle, (6 pc.)6.50
B6676B667668-82PLUG SET - steering knuckle holes, (2 pc.)11.30
 S835068-82RIVET SET - rotor to hub, as from factory, (5 pc.)5.25
 S804569-82ROTOR - front brake w/hub324.15
S8039S803968-82ROTOR - front brake, w/o hub, (transfer old hub)74.00
S8052S805268SEAL - front wheel bearing7.50
S8053S805369-82SEAL - front wheel bearing9.00
S7750S775068-75SHIELD - splash, brake flange plate, LH front caliper, w/bright zinc plating Delco ID & part number89.95
 S775168-75SHIELD - splash, brake flange plate, RH front caliper, w/bright zinc plating & Delco ID/part number89.95
 S775276-82SHIELD - splash, brake flange plate, LH front caliper, yellow di-chromate, w/Delco ID & number40.00
 S775376-82SHIELD - splash, brake flange plate, RH front caliper, yellow di-chromate plating, w/Delco ID & number40.00
S7754S775468-75SHIELD - splash, brake flange plate, LH front caliper, zinc41.95
S7755S775568-75SHIELD - splash, brake flange plate, RH front caliper, zinc41.95
S7756S775676-82SHIELD - splash, brake flange plate, LH front caliper, yellow dichromate29.95
S7757S775776-82SHIELD - splash, brake flange plate, RH front caliper, yellow dichromate29.95
 S935368SPINDLE/KNUCKLE - small bearing journal, used LH or RH249.95
 S935469-82SPINDLE/KNUCKLE - large bearing journal, used LH or RH95.00
S8017S801768-82STATIC COLLECTOR - front wheel, in grease cap21.95
S8030S803068-82STUD - front rotor retaining, 1 7/8" long2.60
S8165S816568-70STUD KIT - wheel stud, with "TR" marking, set of 5 10.25
S8056S805668WASHER - bearing retainer, front spindle3.00
 S835469-82WASHER - bearing retainer, front spindle3.80
